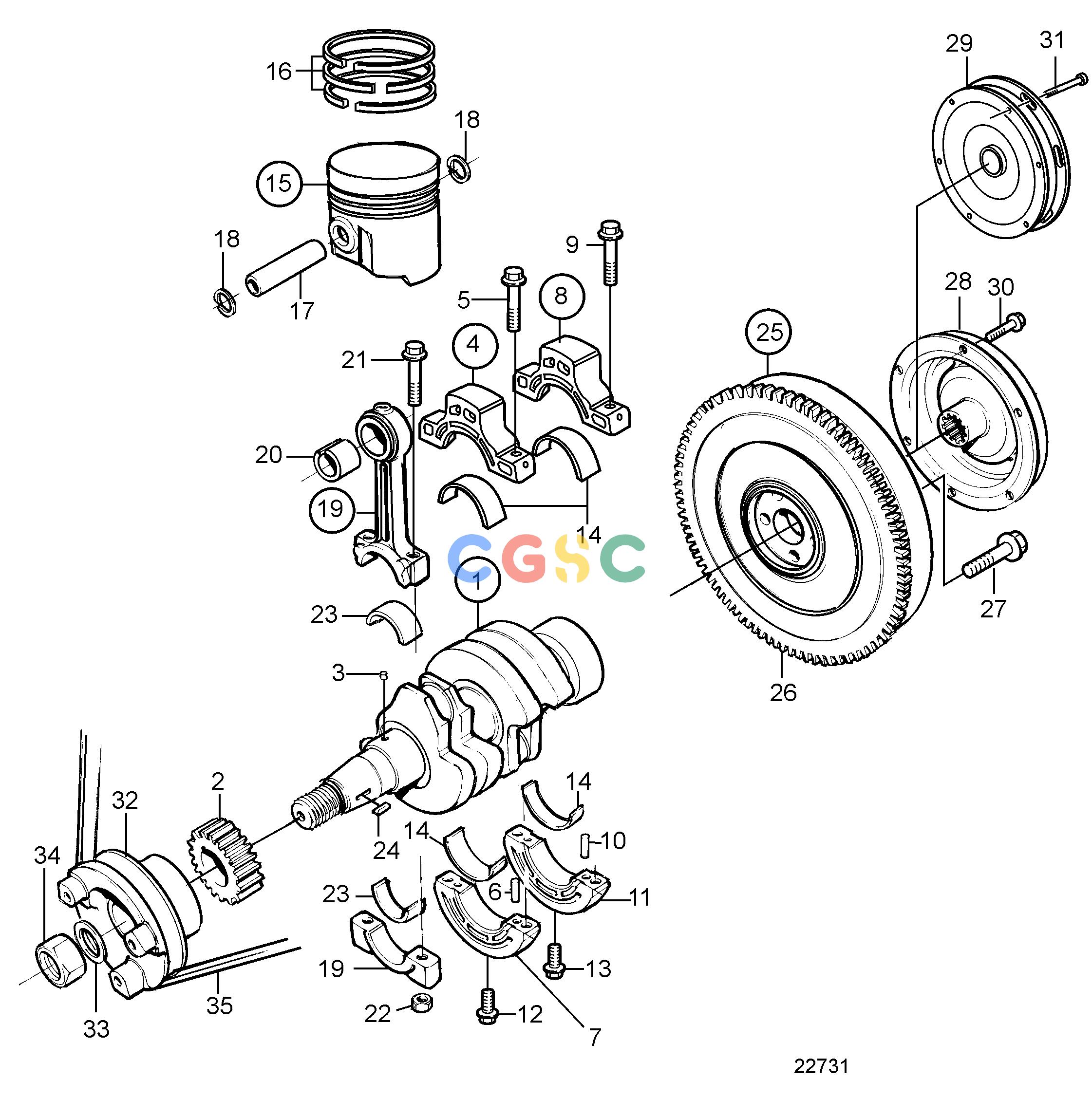

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861932
|
[1] |
Crankshaft
|
|
| 2. |
861933
|
[1] |
Gear
|
|
| 3. |
861934
|
[1] |
Key
|
|
| 4. |
|
|
|
|
| 5. |
947760
|
[2] |
Flange screw
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
947760
|
[2] |
Flange screw
|
(861936)
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
861952
|
[1] |
Screw
|
|
| 13. |
861953
|
[2] |
Screw
|
|
| 14. |
876657
|
[1] |
Main bearing kit
|
Std
|
| 14. |
876658
|
[1] |
Main bearing kit
|
U.S=0,25mm
|
| 14. |
876659
|
[1] |
Main bearing kit
|
U.S=0.50mm
|
| 15. |
876692
|
[2] |
Piston kit
|
Std
|
| 15. |
876696
|
[2] |
Piston kit
|
O.S=0,25mm
|
| 15. |
876814
|
[2] |
Piston kit
|
O.S=0,50mm
|
| 16. |
861954
|
[2] |
Piston ring kit
|
Std
|
| 16. |
861955
|
[2] |
Piston ring kit
|
O.S=0,25mm
|
| 16. |
861956
|
[2] |
Piston ring kit
|
O.S=0,50mm
|
| 17. |
861960
|
[2] |
Gudgeon pin
|
|
| 18. |
861961
|
[4] |
Lock ring
|
|
| 19. |
861962
|
[2] |
Connecting rod
|
|
| 20. |
861963
|
[2] |
Bushing
|
|
| 21. |
861964
|
[4] |
Screw
|
|
| 22. |
861965
|
[4] |
Nut
|
|
| 23. |
876669
|
[1] |
Big-end bearing kit
|
Std
|
| 23. |
876670
|
[1] |
Big-end bearing kit
|
U.S=0,25mm
|
| 23. |
876671
|
[1] |
Big-end bearing kit
|
U.S=0.50mm
|
| 24. |
861969
|
[1] |
Woodruff key
|
|
| 25. |
861972
|
[1] |
Flywheel
|
|
| 26. |
861973
|
[1] |
Gear ring
|
|
| 27. |
861974
|
[4] |
Screw
|
|
| 28. |
872809
|
[1] |
Vibration damper
|
Up to MD2010C, Use together with drive unit 120S and MS2L
|
| 29. |
3885414
|
[1] |
Flexible coupling
|
MD2010D, Use together with drive unit 130S, MS10L
|
| 30. |
861975
|
[6] |
Screw
|
Up to MD2010C
|
| 31. |
959207
|
[6] |
Hex. socket screw
|
MD2010D
|
| 32. |
861976
|
[1] |
Pulley
|
|
| 33. |
861978
|
[1] |
Washer
|
|
| 34. |
861977
|
[1] |
Nut
|
|
| 35. |
7740690_088
|
|
V-belt
|
|
