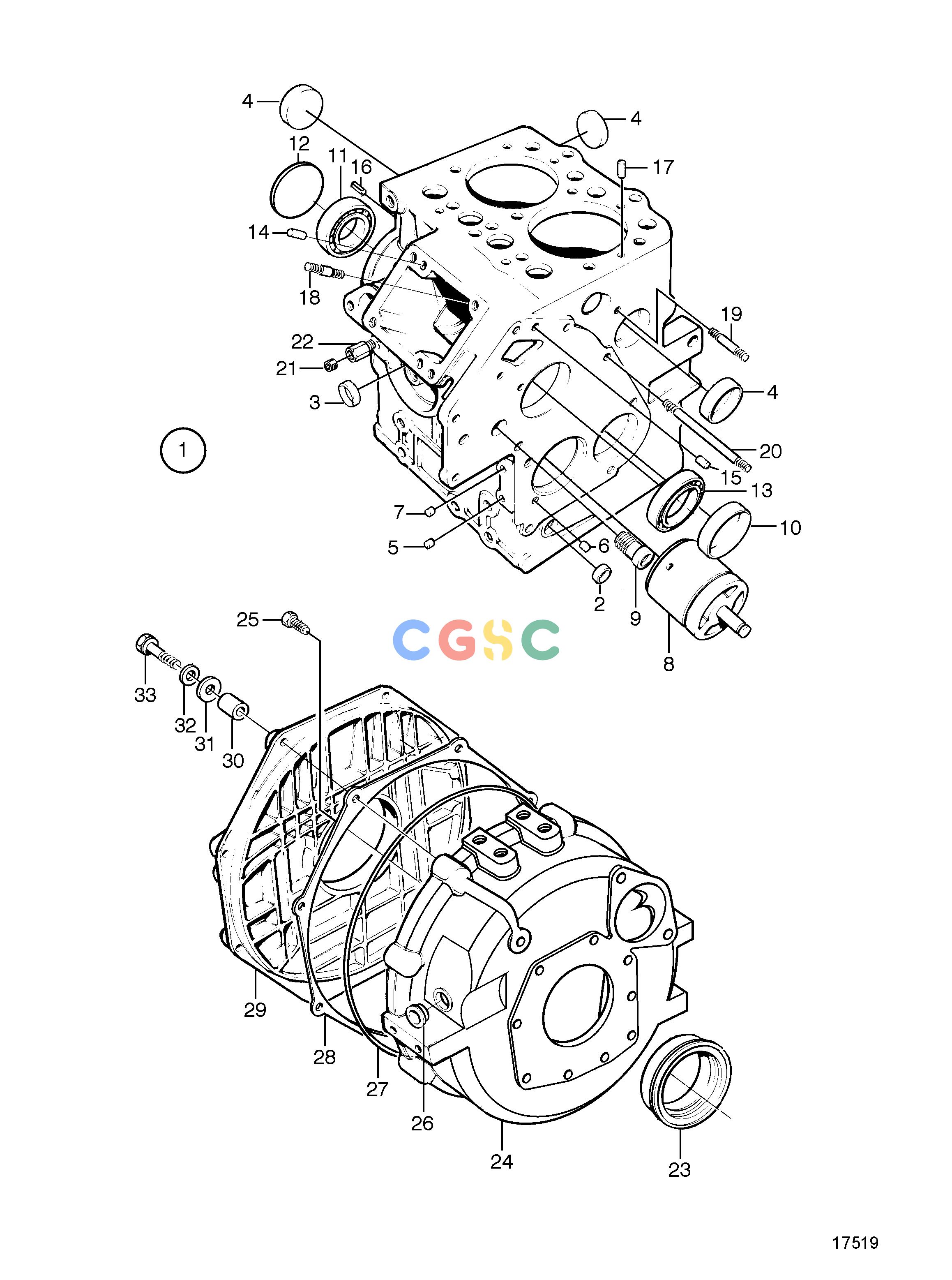

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineCylinder Block and Flywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861800
|
[1] |
Cylinder block
|
|
| 2. |
861801
|
[1] |
Plug
|
Replaced by 3886427
|
| 2. |
3886427
|
[1] |
Cap
|
|
| 3. |
861802
|
[2] |
Plug
|
Replaced by 3886428
|
| 3. |
3886428
|
[2] |
Cap
|
|
| 4. |
861803
|
[3] |
Plug
|
Replaced by 21281430
|
| 4. |
21281430
|
[3] |
Plug
|
|
| 5. |
3807215
|
[4] |
Plug
|
(3580456)
|
| 6. |
861805
|
[1] |
Plug
|
D=5mm
|
| 7. |
861806
|
[4] |
Plug
|
D=9mm
|
| 8. |
861807
|
[1] |
Shaft
|
Replaced by 21541017
|
| 8. |
21541017
|
[1] |
Oil pump
|
|
| 9. |
861808
|
[1] |
Bushing
|
|
| 10. |
3809705
|
[1] |
Bushing
|
Replaced by 21185006
|
| 10. |
21185006
|
[1] |
Bushing
|
Std
|
| 10. |
861810
|
[1] |
Main bearing
|
Replaced by 21246161
|
| 10. |
21246161
|
[1] |
Main bearing
|
US 0,25mm
|
| 10. |
861811
|
[1] |
Main bearing
|
Replaced by 21246162
|
| 10. |
21246162
|
[1] |
Main bearing
|
US 0,50mm
|
| 11. |
861812
|
[1] |
Bearing
|
Replaced by 11010
|
| 11. |
11010
|
[1] |
Ball bearing
|
|
| 12. |
861813
|
[1] |
Expansion plug
|
|
| 13. |
861814
|
[1] |
Bearing
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
861818
|
[2] |
Spring pin
|
|
| 18. |
861819
|
[2] |
Stud
|
|
| 19. |
861820
|
[1] |
Stud
|
|
| 20. |
3583709
|
[1] |
Stud
|
(861821)
|
| 21. |
861893
|
[1] |
Plug
|
|
| 22. |
861831
|
[1] |
Connector
|
|
| 23. |
861823
|
[1] |
Sealing ring
|
|
| 24. |
3581775
|
[1] |
Flywheel housing
|
|
| 25. |
946173
|
[4] |
Flange screw
|
(861844)
|
| 26. |
861848
|
[1] |
Plug
|
|
| 27. |
861647
|
[1] |
Guide ring
|
|
| 28. |
861636
|
[1] |
Insulating plate
|
|
| 29. |
861633
|
[1] |
Flywheel housing
|
|
| 30. |
861635
|
[1] |
Insulating bushing
|
|
| 31. |
861634
|
[8] |
Insulating washer
|
|
| 32. |
945583
|
[8] |
Washer
|
|
| 33. |
946470
|
[8] |
Flange screw
|
|
