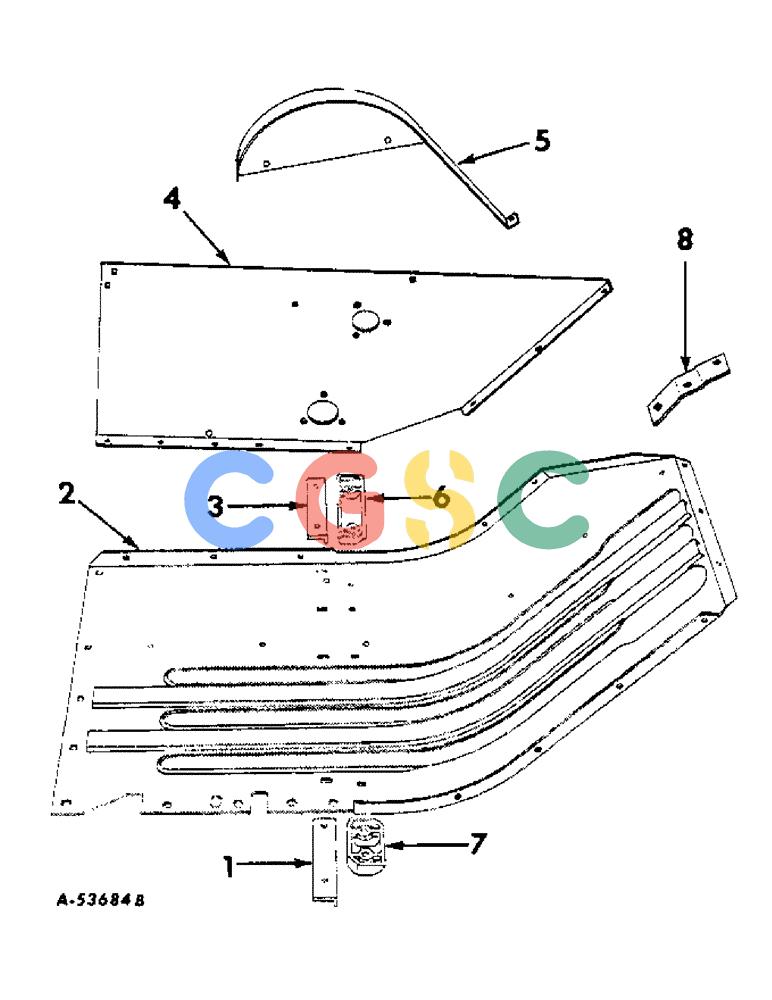

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-16) - FEED OPENING TOP SHEET Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
569 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
663181R1
|
[1] |
|
P
GUIDE, feed opening top sheet rear
|
| . . |
Q1505
|
[2] |
WASHER
|
IH
13/32 x 1 x 16 ga Superseded by part number: 495-21044
|
| 2. |
663245R93
|
[1] |
|
P
SHEET ASSY, feed opening top
|
| 3. |
663180R1
|
[1] |
|
P
GUIDE, feed opening top sheet front
|
| 4. |
663488R3
|
[1] |
|
P
SUPPORT, packer crank front
|
| 5. |
663267R91
|
[1] |
|
P
SHIELD ASSY, packer gear
|
| 6. |
663183R1
|
[1] |
|
P
DEFLECTOR, feed opening front
|
| 7. |
663182R1
|
[1] |
|
P
DEFLECTOR, feed opening rear
|
| 8. |
664575R1
|
[1] |
|
P
STRAP, feed opening top sheet tie
|
| . . |
125681
|
[2] |
|
P
SCREW, 5/16-18 x 5/8 cd-pltd slt truss-hd mach
|
