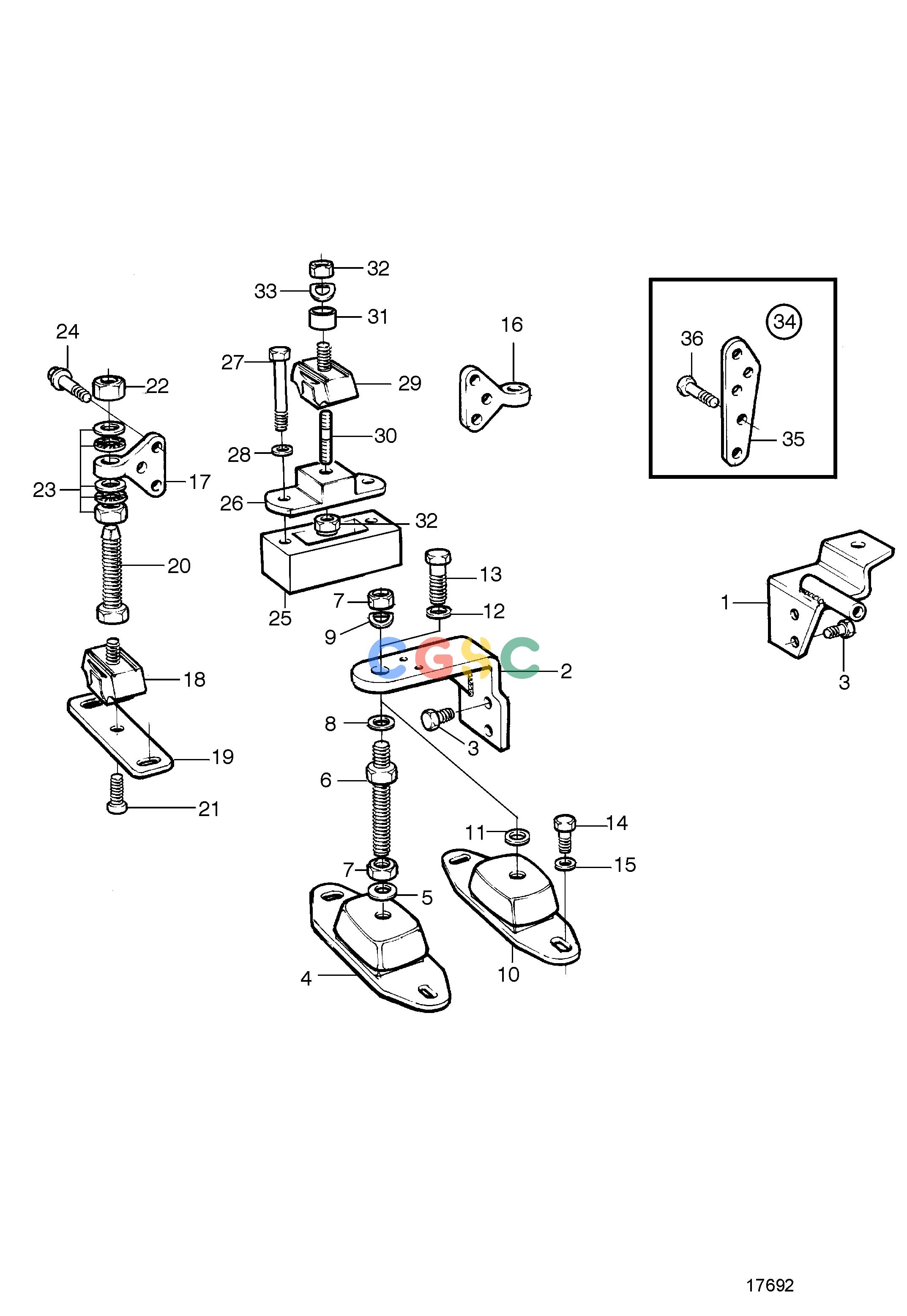

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineEngine Mounting: 120S-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580113
|
[1] |
Engine anchorage, front
|
P
|
| 2. |
3580114
|
[1] |
Engine anchorage, front
|
S.B
|
| 3. |
946329
|
[4] |
Flange screw
|
|
| 10. |
861460
|
[2] |
Rubber cushion
|
|
| 11. |
955900
|
[2] |
Washer
|
|
| 12. |
941912
|
[2] |
Spring washer
|
|
| 13. |
959710
|
[2] |
Hexagon screw
|
|
| 14. |
963580
|
[4] |
Hexagon screw
|
|
| 15. |
976945
|
[4] |
Washer
|
(960148)
|
| 25. |
852697
|
[1] |
Spacer
|
|
| 26. |
850338
|
[1] |
Bracket
|
|
| 27. |
963590
|
[2] |
Hexagon screw
|
|
| 28. |
853095
|
[2] |
Washer
|
|
| 29. |
850404
|
[1] |
Rubber element
|
Replaced by 1pc rubber element 840845 and 1pc stud 924075.
|
| 29. |
840845
|
[1] |
Rubber element
|
|
| 30. |
924075
|
[1] |
Stud
|
|
| 31. |
852554
|
[1] |
Bushing
|
|
| 32. |
971095
|
[2] |
Flange nut
|
|
| 33. |
941908
|
[2] |
Spring washer
|
|
