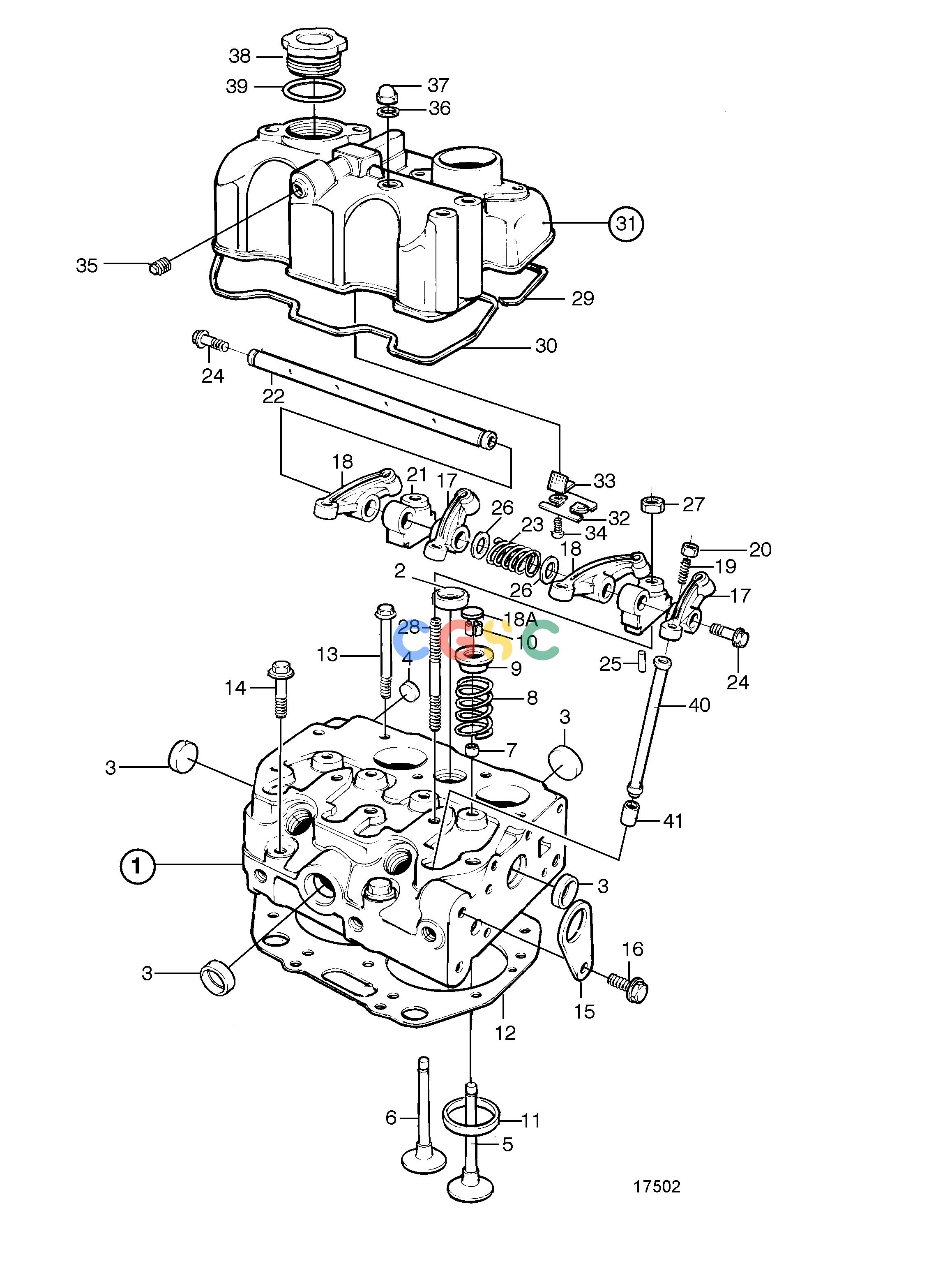

沃尔沃零件查询MD2010-C; MD2010-D; MD2020-C; MD2020-D; MD2030-C; MD2030-D; MD2040-C; MD2040-D; 120S-D; 120S-EEngineCylinder HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861856
|
[1] |
Cylinder head
|
|
| 2. |
861802
|
[1] |
Plug
|
Replaced by 3886428
|
| 2. |
3886428
|
[1] |
Cap
|
|
| 3. |
861857
|
[4] |
Plug
|
Replaced by 21281436
|
| 3. |
21281436
|
[4] |
Plug
|
Replaced by 3886430
|
| 3. |
3886430
|
[4] |
Plug blank
|
|
| 4. |
3807215
|
[3] |
Plug
|
(3580456)
|
| 5. |
861858
|
[2] |
Inlet valve
|
|
| 6. |
861859
|
[2] |
Exhaust valve
|
|
| 7. |
861860
|
[4] |
Valve stem seal
|
|
| 8. |
861861
|
[4] |
Valve spring
|
|
| 9. |
861862
|
[4] |
Valve spring washer
|
|
| 10. |
861863
|
[8] |
Valve cone
|
|
| 11. |
861864
|
[2] |
Valve seat
|
|
| 12. |
861865
|
[1] |
Cylinder head gasket
|
TH=0,6mm
|
| 13. |
861866
|
[8] |
Screw
|
|
| 14. |
861867
|
[2] |
Screw
|
|
| 15. |
861869
|
[1] |
Lifting eye
|
|
| 16. |
861870
|
[1] |
Screw
|
|
| 17. |
3581291
|
[2] |
Rocker arm
|
|
| 18. |
3581292
|
[2] |
Rocker arm
|
|
| 18A. |
3581293
|
[4] |
Valve cap
|
|
| 19. |
861877
|
[4] |
Screw
|
|
| 20. |
861878
|
[4] |
Nut
|
|
| 21. |
3582684
|
[2] |
Bracket
|
|
| 22. |
861880
|
[1] |
Shaft
|
|
| 23. |
861881
|
[1] |
Spring
|
|
| 24. |
861886
|
[2] |
Plug
|
|
| 25. |
861882
|
[1] |
Clamping pin
|
|
| 26. |
861883
|
[2] |
Adjusting washer
|
|
| 27. |
948645
|
[2] |
Flange lock nut
|
|
| 28. |
861885
|
[2] |
Ball screw
|
|
| 29. |
861887
|
[1] |
Gasket
|
|
| 30. |
861888
|
[1] |
Gasket
|
|
| 31. |
861889
|
[1] |
Valve cover
|
|
| 32. |
|
|
|
|
| 33. |
861891
|
[1] |
Filter
|
|
| 34. |
967949
|
[2] |
Flange screw
|
|
| 35. |
861893
|
[1] |
Plug
|
|
| 36. |
11992
|
[2] |
Gasket
|
|
| 37. |
3580241
|
[2] |
Nut
|
(861895)
|
| 38. |
3583541
|
[1] |
Oil filler cap
|
(861896)
|
| 39. |
861897
|
[1] |
O-ring
|
|
| 40. |
861828
|
[4] |
Push rod
|
|
| 41. |
861827
|
[4] |
Tappet
|
|
