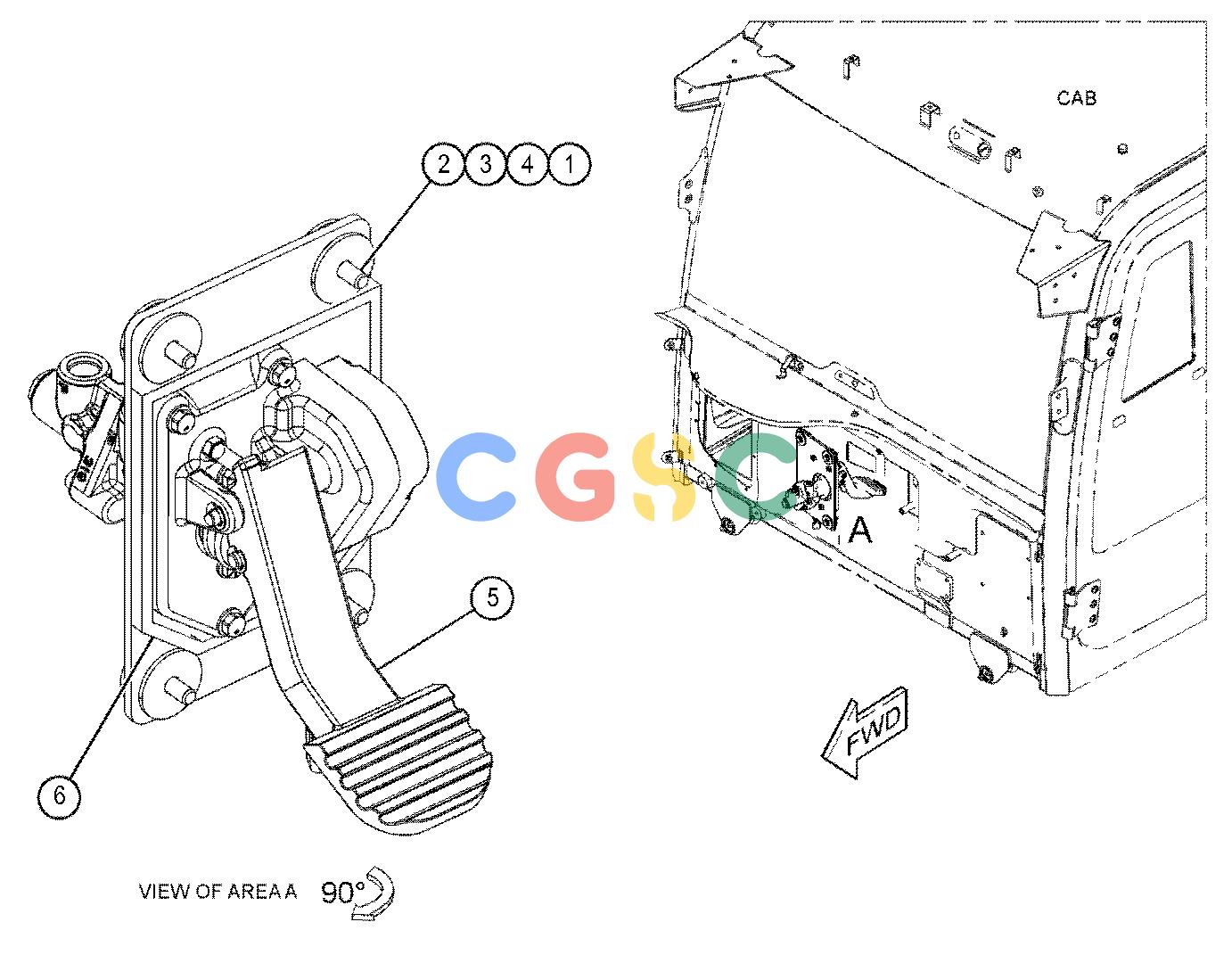

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6N-6984 | [4] | MOUNT-RUBBER | |
| 2. | 8T-4186M | [4] | BOLT(M10X1.5X40-MM) | |
| 3. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 4. | 8T-4226 | [8] | WASHER-PLATED(10.5X45X3-MM THK) | |
| 5. | 495-5128Y | [1] | CONTROL GP-SERVICE BRAKE | |
| 6. | 497-9408 | [1] | SEAL | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
