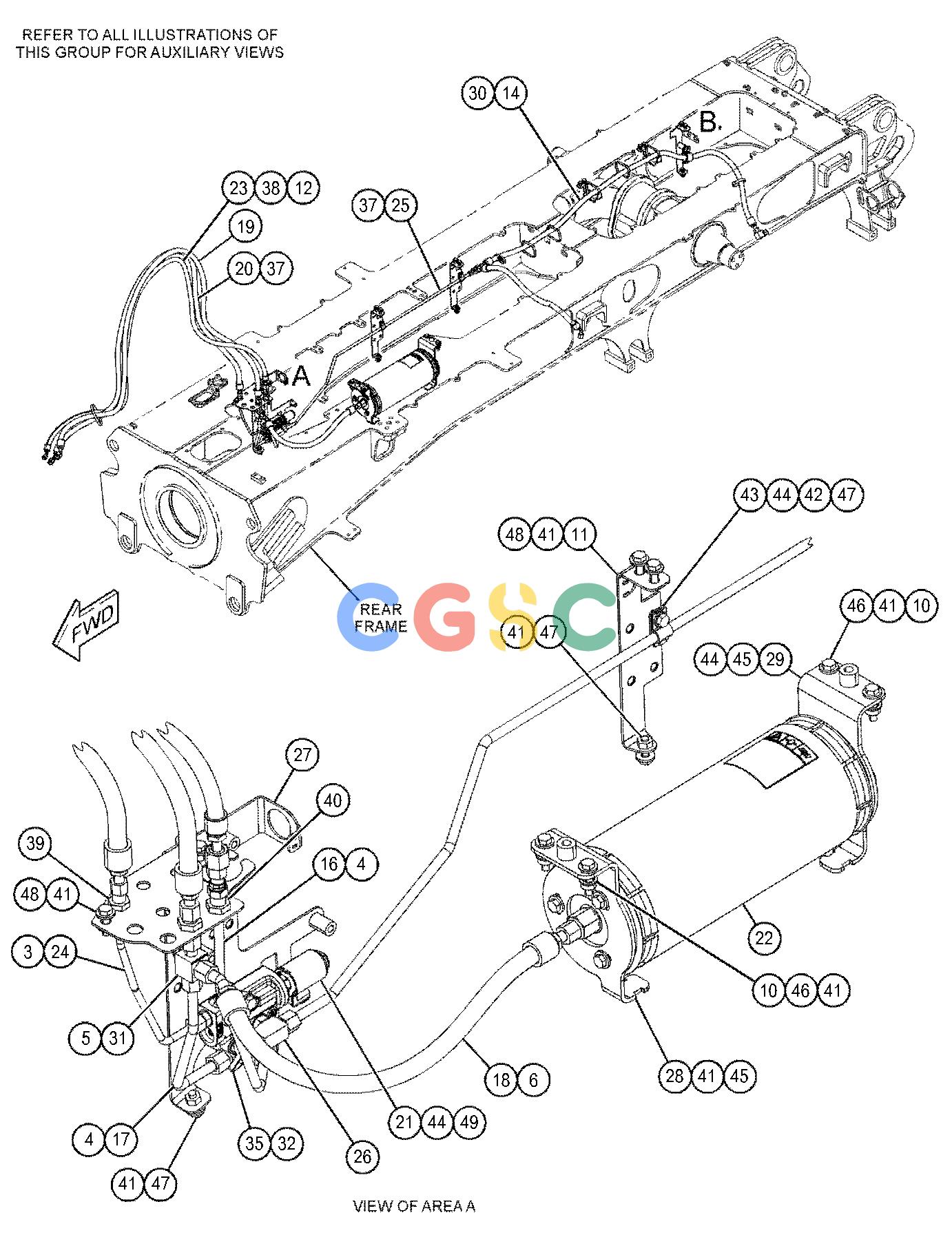

卡特零件查询（730） 504-4578: CONTROL GP-SERVICE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [3] | STRAP | |
| 2. | 6U-0456 | [6] | STRAP | |
| 3. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 4. | 148-8364 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 5. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 6. | 205-2357 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-7968 | [1] | CONNECTOR | |
| 7. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 8. | 297-7948 | [1] | TEE AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 101-0052 | [1] | TEE-UNION | |
| 9. | 347-1217I | [1] | HOSE AS | |
| 10. | 380-8803M | [4] | NUT-INSERT(M10X1.5-THD) | |
| 11. | 395-0147 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 12. | 426-4060 | [1] | ADAPTER AS | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 426-4059 | [1] | ADAPTER | |
| 13. | 454-0475 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 14. | 486-8728I | [1] | HOSE AS | |
| 15. | 495-4690 | [1] | BRACKET AS | |
| 16. | 504-4568 | [1] | TUBE AS | |
| 17. | 504-4569 | [1] | TUBE AS | |
| 18. | 504-4573I | [1] | HOSE AS | |
| 19. | 504-6369I | [1] | HOSE AS | |
| 20. | 504-6374I | [1] | HOSE AS | |
| 21. | 505-4332Y | [1] | VALVE GP-SOLENOID(BRAKE) | |
| 22. | 519-2265Y | [1] | ACCUMULATOR GP-HYDRAULIC(CHARGED) | |
| 23. | 520-5395I | [1] | HOSE AS | |
| 24. | 523-4069 | [1] | TUBE AS | |
| 25. | 533-3529 | [1] | TUBE AS | |
| 26. | 546-5842 | [1] | TEE AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 533-5268 | [1] | TEE | |
| 27. | 549-3281 | [1] | BRACKET AS | |
| 28. | 549-3389 | [1] | BRACKET AS | |
| 29. | 550-0163 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 9R-3572M | [1] | BOSS(M12X1.75X20-MM) | |
| 30. | 148-8370 | [1] | ELBOW AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 31. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| 32. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 33. | 5P-7464 | [1] | CLIP(SLOT) | |
| 34. | 5P-7465 | [1] | CLIP(TAB) | |
| 35. | 6V-0852 | [1] | CAP-DUST | |
| 36. | 6V-1249 | [1] | GROMMET(22-MM ID) | |
| 37. | 6V-8397 | [2] | SEAL-O-RING | |
| 38. | 6V-8398 | [1] | SEAL-O-RING | |
| 39. | 6V-9168 | [1] | NUT(11/16-16-THD) | |
| 40. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 41. | 7X-7729 | [20] | WASHER(11X25X3-MM THK) | |
| 42. | 8T-1885 | [2] | CLIP(SLOT) | |
| 43. | 8T-1886 | [2] | CLIP(TAB) | |
| 44. | 8T-4121 | [11] | WASHER-HARD(11X21X2.5-MM THK) | |
| 45. | 8T-4136M | [6] | BOLT(M10X1.5X25-MM) | |
| 46. | 8T-4182M | [4] | BOLT(M10X1.5X45-MM) | |
| 47. | 8T-4195M | [14] | BOLT(M10X1.5X30-MM) | |
| 48. | 8T-4196M | [5] | BOLT(M10X1.5X35-MM) | |
| 49. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
