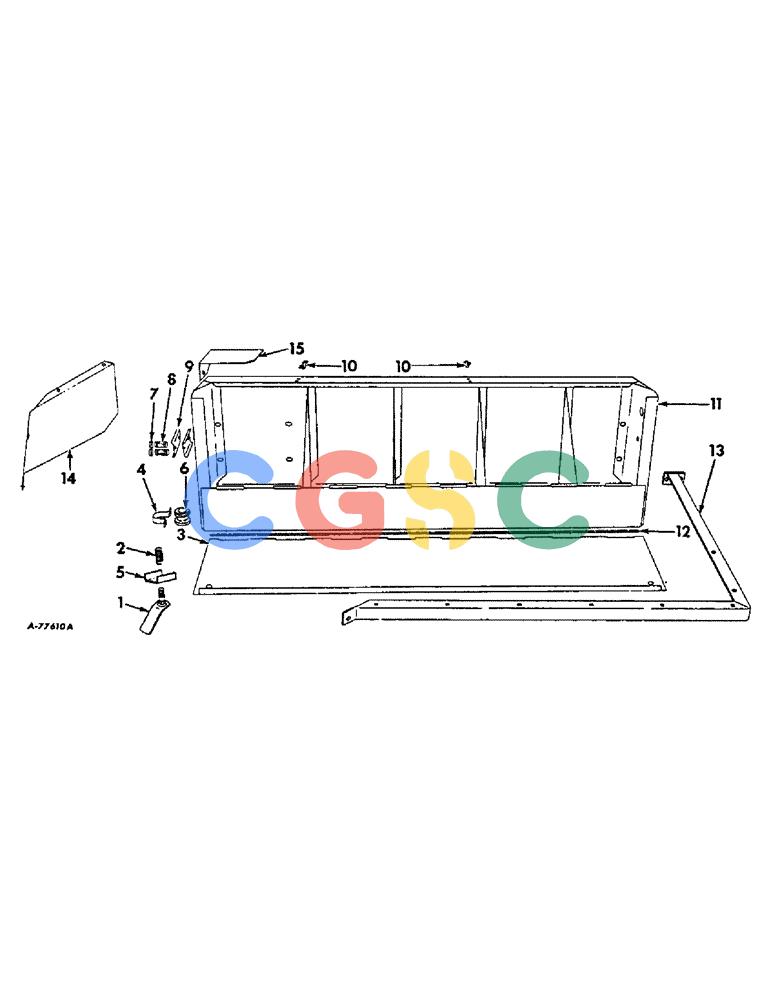

| 1. |
668035R11
|
[2] |
LATCH
|
IH
ASSY, twine can door
|
| . . |
15054R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 3/4", G2 Superseded by part number: 111-381
|
| 2. |
354746R1
|
[2] |
SPRING
|
IH
twine can fastener
|
| . . |
664645R1
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 lock Superseded by part number: 231-4206
|
| . . |
Q1597
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 16 ga Superseded by part number: 86632580
|
| 3. |
663508R1
|
[1] |
|
P
DOOR, twine can
|
| 4. |
11792P
|
[1] |
HOLDER
|
IH
twine guide
|
| 5. |
668036R1
|
[2] |
PAWL
|
IH
twine can fastener
|
| 6. |
11833PB
|
[1] |
GUIDE
|
IH
twine Superseded by part number: 1344948C1
|
| 7. |
B32120
|
[2] |
WASHER
|
IH
twine roller spring cup
|
| . . |
665621R1
|
[2] |
|
P
NUT, 1/4-20 wing
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
495058R1
|
[2] |
BOLT (SPREADER)
|
IH
BOLT, 1/4 x 3 znd sq-nk crg Superseded by part number: 495058R2
|
| 8. |
76DS
|
[2] |
SPRING
|
IH
twine tension roller
|
| 9. |
662380R1
|
[2] |
GUIDE
|
IH
PLATE, twine tension
|
| 10. |
655108R2
|
[2] |
GUIDE
|
IH
twine
|
| . . |
16897R1
|
[6] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16-18 x 3/4 znd short sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[8] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
106883
|
[4] |
RIVET,Truss Hd, 3/16" x 3/8"
|
IH
Superseded by part number: 87467
|
| . . |
125681
|
[2] |
|
P
SCREW, 5/16-18 x 5/8 cd-pltd truss hd mach
|
| . . |
80681
|
[8] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 11. |
663719R92
|
[1] |
|
P
CONTAINER ASSY, twine
|
| 12. |
662409R1
|
[1] |
ROD
|
IH
twine can door pivot
|
| 13. |
663513R91
|
[1] |
|
P
FRAME ASSY, twine container
|
| 14. |
664543R1
|
[1] |
|
P
SHIELD, twine can
|
| . . |
125678
|
[2] |
BOLT
|
IH
SCREW, 5/16-18 x 5/8 truss-hd mach Superseded by part number: 182-515
|
| . . |
Q397
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga Superseded by part number: 95-81069
|
| 15. |
668988R1
|
[1] |
|
P
SHIELD, auger drive coupling
|
