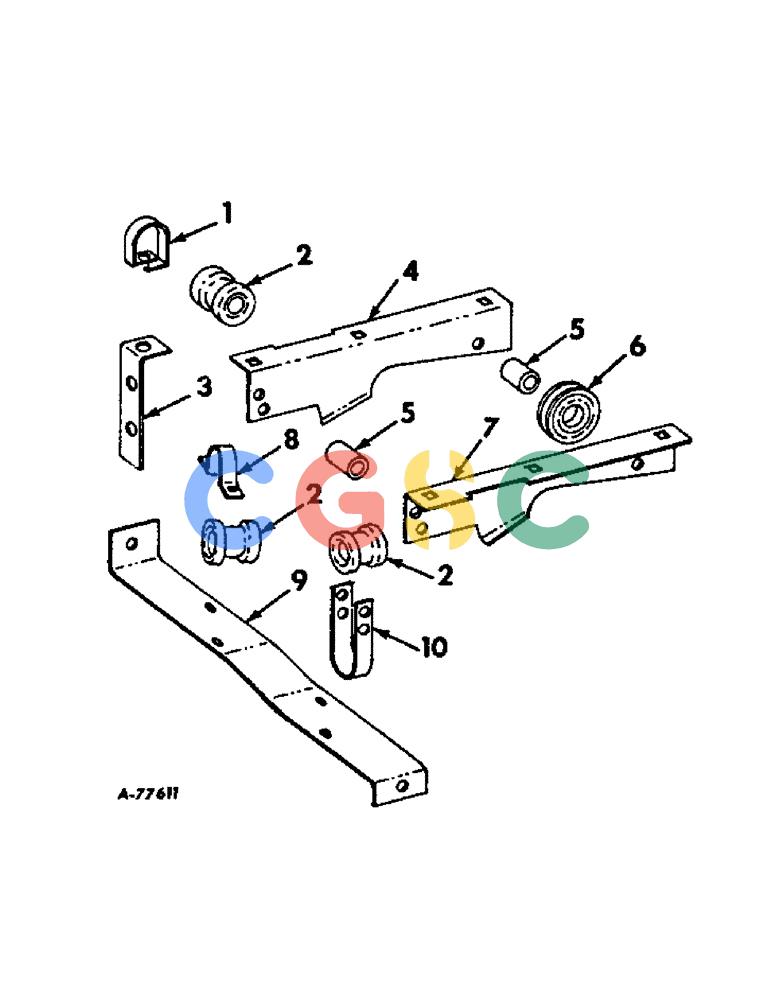

凯斯零件查询(57) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/57-12/72) (A-29[A]) - WIRE NEEDLE GUIDES AND WIRE GUIDES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
496158R2
|
[4] |
BRACKET
|
IH
wire guide
|
| 2. |
11833PB
|
[7] |
GUIDE
|
IH
wire Superseded by part number: 1344948C1
|
| 3. |
663383R1
|
[2] |
|
P
BRACKET, wire guide
|
| 4. |
663725R2
|
[2] |
|
P
GUIDE, needle left
|
| 5. |
Y14504
|
[6] |
|
P
SPACER, needle guide
|
| . . |
18779R1
|
[2] |
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
|
IH
3/8-16 x 1-1/2 znd hex-hd mach Superseded by part number: 179843
|
| . . |
18780R1
|
[4] |
BOLT,Hex, 3/8"-16 x 1 3/4", G2
|
IH
3/8-16 x 1-3/4 znd hex-hd mach Superseded by part number: 424-628
|
| . . |
120377
|
[6] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[6] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 6. |
495057R3
|
[2] |
SHEAVE
|
IH
needle guide
|
| 7. |
663726R2
|
[2] |
|
P
GUIDE, needle right
|
| 8. |
11792P
|
[3] |
HOLDER
|
IH
wire eye
|
| 9. |
664669R2
|
[1] |
|
P
BRACKET, wire guide mounting
|
| 10. |
663724R1
|
[2] |
|
P
CLIP, wire eye
|
