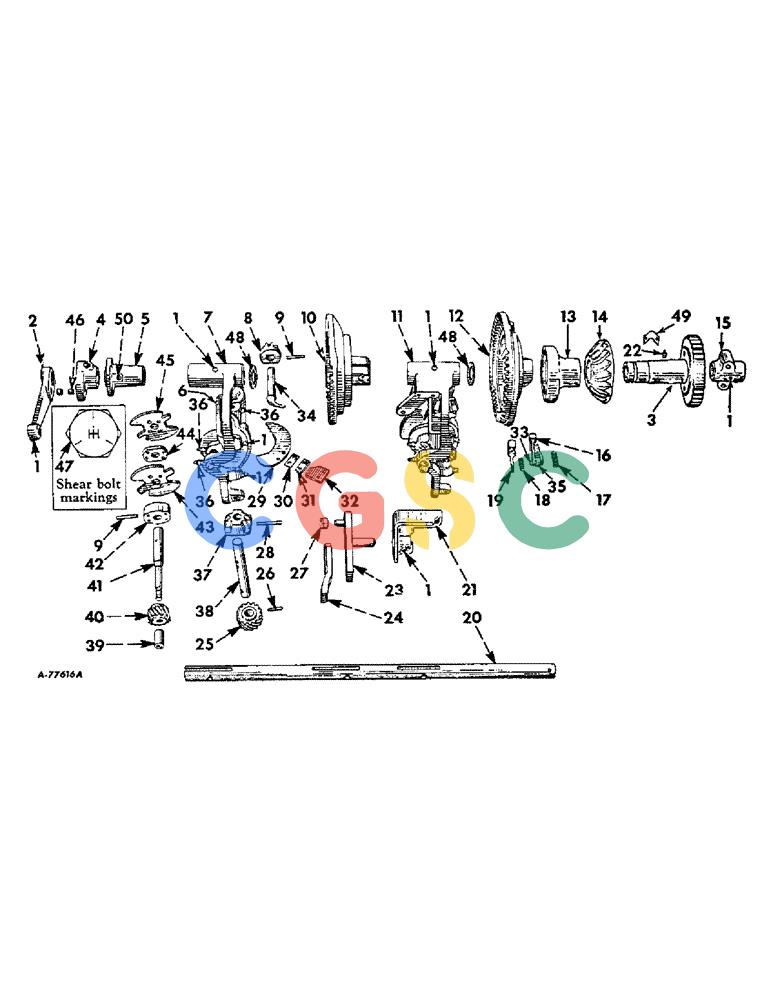

| 1. |
109461
|
[9] |
LUBE NIPPLE,1/8"-27 x .66 lg
|
IH
NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg Superseded by part number: 80710
|
| 2. |
664753R21
|
[1] |
|
P
CRANK W/BUSHING, needle
|
| . . |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1.88 sq-parallel
|
| 3. |
668641R1
|
[1] |
|
P
HUB, auger & twister drive gear
|
| 4. |
663167R11
|
[1] |
HUB
|
IH
w/bushing, needle crank
|
| 5. |
663153R1
|
[1] |
|
P
BEARING, twister shaft left
|
| 6. |
219-36
|
[2] |
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
|
CAS
FITTING, 1/8-27 PTF 45 deg angle lub Superseded by part number: 80717
|
| 7. |
656895R2
|
[1] |
TWISTER
|
IH
FRAME, wire twister left Superseded by part number: 656895R22
|
| 7. |
656895R22
|
[1] |
TWISTER
|
IH
ASSY, left
|
| 8. |
656913R2
|
[2] |
PINION
|
IH
twister
|
| 9. |
657196R1
|
[4] |
PIN
|
IH
1/4 x 2 roll spring Superseded by part number: 86624088
|
| 10. |
656890R2
|
[1] |
CAM
|
IH
HOLDER, twister gear & stripper cam
|
| . . |
657206R1
|
[1] |
KEY,3/8" Sq x 2 3/8", Par
|
CAS
3/8 x 2-3/8 sq parallel
|
| 11. |
656894R1
|
[1] |
TWISTER
|
IH
FRAME, wire twister right
|
| 11. |
656894R12
|
[1] |
TWISTER
|
IH
ASSY, right
|
| 12. |
663184R1
|
[1] |
|
P
GEAR, trip dog carrier & twister
|
| 13. |
663178R2
|
[1] |
|
P
HOUSING, trip dog bell
|
| . . |
Q459
|
[1] |
KEY,3/8" Sq x 2 1/4", Par
|
IH
3/8 x 2-1/4 sq parallel
|
| 14. |
668619R1
|
[1] |
|
P
GEAR, auger & twister drive hypoid
|
| 15. |
663155R2
|
[1] |
|
P
BEARING, twister shaft right
|
| 16. |
663478R11
|
[1] |
PAWL
|
IH
DOG W/ROLLER, trip
|
| . . |
663379R1
|
[1] |
AXLE PIN
|
IH
PIN, trip dog pivot Superseded by part number: 3101018R1
|
| 17. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 18. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| 19. |
663378R1
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 20. |
663421R2
|
[1] |
|
P
SHAFT, wire twister
|
| . . |
Q275
|
[6] |
WASHER
|
IH
1-13/32 x 2 x 20 ga (or as required) Superseded by part number: 495-81213
|
| . . |
551769R1
|
[10] |
WASHER
|
IH
1-13/32 x 2 x 16 ga (or as required) Superseded by part number: 495-81213
|
| 21. |
658735R2
|
[1] |
|
P
SUPPORT, stripper actuating arm pivot
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 22. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
FITTING, 1/4-28 str lub Superseded by part number: 88775
|
| 23. |
658737R91
|
[1] |
ARM
|
IH
ASSY, stripper actuating
|
| . . |
103385
|
[1] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| . . |
10366H
|
[2] |
WASHER
|
IH
21/32 x 1-1/2 x 22 ga
|
| 24. |
658740R1
|
[1] |
SUPPORT
|
IH
BAR, stripper actuating arm adj
|
| . . |
Q1597
|
[2] |
WASHER
|
IH
13/32 x 3/4 x 16 ga Superseded by part number: 86632580
|
| 25. |
656946R1
|
[2] |
PINION
|
IH
wire clamp & cutter helical driver
|
| . . |
576485R1
|
[1] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Superseded by part number: 300868
|
| . . |
17080R1
|
[1] |
LOCK PIN,5/32" x 1 1/4", Slotted
|
IH
PIN, 5/32" x 1 1/4", Slotted Superseded by part number: 38-31020
|
| 27. |
656952R1
|
[1] |
ROLLER
|
IH
stripper cam
|
| 28. |
667197R1
|
[2] |
|
P
PIN, 1/4 x 2-1/4 roll spring
|
| . . |
17141R1
|
[4] |
LOCK PIN,5/32" x 1", Slotted
|
IH
Pin, 5/32" x 1", Slotted Superseded by part number: 38-11016
|
| 29. |
657127R1
|
[2] |
NO LONGER SERVICED
|
IH
BLADE, wire holder keeper Superseded by part number: 657127R3
|
| 30. |
657163R1
|
[6] |
SHIM
|
IH
keeper blade .010
|
| 30. |
657164R1
|
[16] |
SHIM
|
IH
wire knife & keeper blade
|
| 31. |
657128R1
|
[2] |
SPACER
|
IH
wire knife
|
| 32. |
657188R2
|
[2] |
NO LONGER SERVICED
|
IH
KNIFE, wire Superseded by part number: 657188R3
|
| 33. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 34. |
657783R91
|
[2] |
TWISTER
|
IH
HOOK ASSY, wire twister
|
| . . |
19336R1
|
[2] |
LOCK PIN,1/8" x 11/16", Slotted
|
IH
Pin, 1/8" x 11/16", Slotted Superseded by part number: 38-1811
|
| 35. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 36. |
332040
|
[6] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8-27 PTF 90 deg angle lub
|
| 37. |
656912R2
|
[2] |
DISC
|
IH
PINION, disk
|
| 37. |
658967R1
|
[2] |
SHIM
|
IH
disk pinion adj
|
| 38. |
656949R1
|
[2] |
GEAR
|
IH
SHAFT, disk pinion
|
| . . |
Q3478
|
[8] |
WASHER
|
IH
25/32 x 1-1/4 x 14 ga Superseded by part number: 495-81038
|
| . . |
Q3501
|
[7] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga Superseded by part number: 95-81056
|
| 39. |
657001R1
|
[2] |
BUSHING
|
IH
wire holder shaft
|
| 40. |
656947R1
|
[2] |
BLOCK DRIVER
|
IH
PINION, wire clamp & cutter helical driven
|
| 41. |
656948R1
|
[2] |
SHAFT
|
IH
wire holder
|
| . . |
114496
|
[2] |
HOURMETER,Jam, 1/2"-20, G5
|
IH
NUT, 1/2-20 hex. jam Superseded by part number: 124934
|
| . . |
Q5035
|
[2] |
WASHER
|
IH
17/32 x 1 x 16 ga Superseded by part number: 495-81254
|
| . . |
551658R1
|
[8] |
WASHER
|
IH
25/32 x 1-1/4 x 22 ga (or as req.) Superseded by part number: 87613196
|
| 42. |
656893R1
|
[2] |
HUB
|
IH
wire holder disc
|
| 43. |
657123R2
|
[2] |
HOLDER
|
IH
DISC, wire holder
|
| 44. |
657124R2
|
[2] |
SPACER
|
IH
wire holder disc
|
| 45. |
657126R2
|
[2] |
HOLDER
|
IH
DISC, wire holder lower
|
| . . |
113918
|
[8] |
FENDER
|
NNA
5/16-18 x 1-1/2 slt-f-hd mach Superseded by part number: NLS
|
| 46. |
662555R1
|
[2] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
needle crank
|
| 47. |
181348
|
[1] |
BOLT,Hex, 5/16" - 24 x 2 1/4", Gr 5
|
IH
SHEAR BOLT, 5/16-24 x 2-1/4 hex-hd Superseded by part number: 27292R1
|
| 48. |
667438R1
|
[2] |
SHIM
|
IH
wire twister shaft
|
| 48. |
667439R1
|
[6] |
SHIM
|
IH
wire twister shaft .005 (or as required)
|
| 49. |
668638R1
|
[2] |
|
P
SHIM, knotter & twister drive gear .010 (or as required)
|
| 49. |
668639R1
|
[6] |
|
P
SHIM, knotter & twister drive gear .020 (or as required)
|
