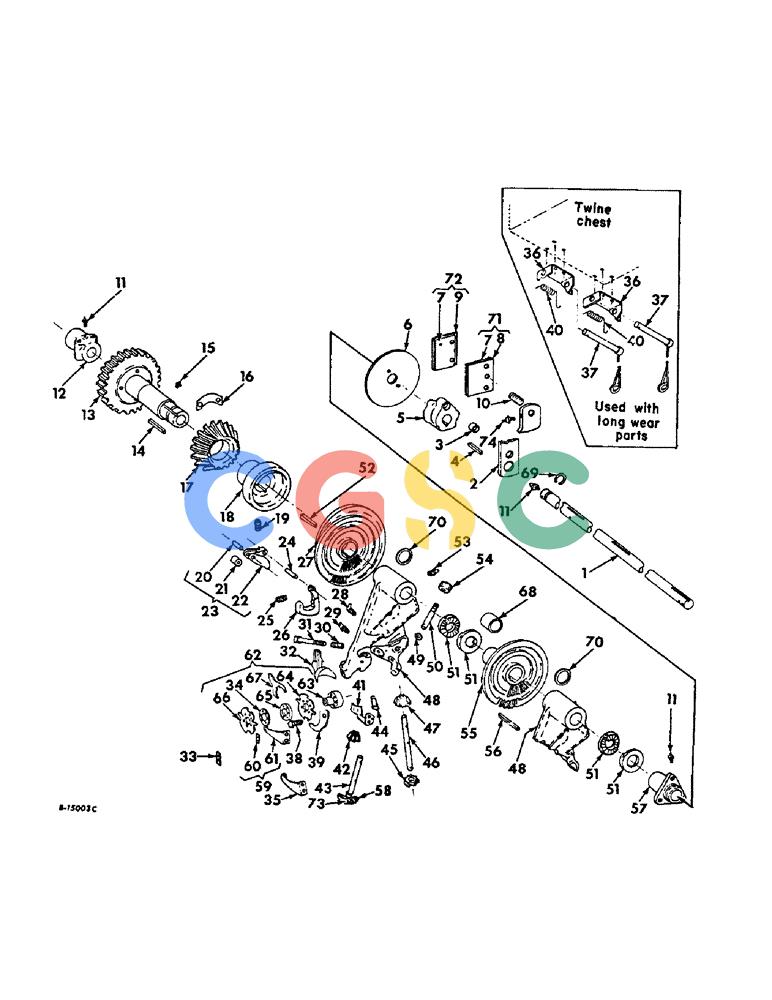

| 1. |
668722R11
|
[1] |
|
P
SHAFT ASSY, knotter
|
| . . |
615264R1
|
[3] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga (or as required)
|
| . . |
Q251
|
[7] |
WASHER
|
IH
1-7/32 x 1-3/4 x 22 ga (or as required) Superseded by part number: 607894R1
|
| . . |
Q140
|
[9] |
WASHER
|
IH
1-7/32 x 2 x 16 ga (or as required) Superseded by part number: 21747R1
|
| 2. |
201671C1
|
[1] |
|
P
CRANK, needle drive, 004395 and up
|
| 2. |
663548R1
|
[1] |
|
P
CRANK, needle drive, 004394 and below
|
| . . |
120368
|
[1] |
NUT,5/16"-24, G5
|
IH
Superseded by part number: 86629539
|
| . . |
181621
|
[1] |
SCREW,Hex, 5/16" - 24 x 2 1/4"
|
IH
5/16-24 x 2-1/4 znd hex-hd cap shear bolt Superseded by part number: 114-109
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
21747R1
|
[1] |
WASHER,1.22" ID x 2" OD x 0.07" Thk
|
IH
1-7/32 x 2 x 16 ga C-Z
|
| 3. |
662555R1
|
[1] |
BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L
|
IH
needle shear bolt
|
| 4. |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1-7/8 sq parallel
|
| 5. |
668629R1
|
[1] |
|
P
HUB, needle drive
|
| . . |
443056
|
[1] |
PIN,3/8" x 2", Type F
|
IH
Grooved, 3/8" x 2", Type F Superseded by part number: 86624092
|
| 6. |
662153R1
|
[1] |
PLATE
|
IH
knotter brake pressure
|
| . . |
664337R1
|
[2] |
|
P
SCREW, 3/8-16 x 1/2 hex-hd cap nylock
|
| 10. |
U13033
|
[2] |
SPRING
|
IH
knotter brake
|
| 11. |
332040
|
[3] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8-27 PTF 90 deg angle lub
|
| 12. |
663170R1
|
[1] |
|
P
BEARING, knotter shaft right
|
| 13. |
668640R1
|
[1] |
|
P
HUB, auger & knotter drive hypoid gear
|
| 14. |
Q459
|
[1] |
KEY,3/8" Sq x 2 1/4", Par
|
IH
3/8 x 2-1/4 sq parallel
|
| 15. |
86636814
|
[1] |
LUBE NIPPLE,1/4"-28 x .52" lg
|
GI
FITTING, 1/4-28 str lub Superseded by part number: 88775
|
| 16. |
668638R1
|
[2] |
|
P
SHIM, knotter & twister drive gear .010, (or as required)
|
| 16. |
668639R1
|
[6] |
|
P
SHIM, knotter & twister drive gear .020, (or as required)
|
| 17. |
668619R1
|
[1] |
|
P
GEAR, auger & knotter drive hypoid
|
| 18. |
663185R2
|
[1] |
|
P
HOUSING, trip dog bell
|
| 19. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 20. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| 21. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 23. |
655712R11
|
[1] |
PAWL
|
IH
DOG W/ROLLER, trip
|
| 24. |
664947R1
|
[1] |
PIVOT
|
IH
trip dog
|
| 25. |
R1003
|
[1] |
SPRING
|
IH
auxiliary trip dog
|
| . . |
Q134
|
[1] |
WASHER, 15/32 x 13/16 x 18 ga (or as req)
|
|
| . . |
588099R1
|
[1] |
WASHER
|
IH
15/32 x 3/4 x 22 ga (or as req)
|
| 26. |
662048R2
|
[1] |
PAWL
|
IH
DOG, auxiliary trip
|
| 26. |
671633R91
|
[1] |
STRIPPER PACKAGE
|
IH
PACKAGE, trip dog service, consists of (1) dog 662048R2, (1) dog w/roller 655712R11, (1) pivot 664947R1, 91) spring R1003, (1) spring V680
|
| 27. |
668970R2
|
[1] |
CARRIER
|
IH
trip dog, see Note A Superseded by part number: 668970R4
|
| 27. |
667820R2
|
[1] |
NO LONGER SERVICED
|
IH
CARRIER, trip dog Superseded by part number: 667820R4
|
| . . |
443057
|
[1] |
GROOVED PIN,3/8" x 2 1/4", Type F
|
IH
Pin, Grooved, 3/8" x 2 1/4", Type F Superseded by part number: 435-61236
|
| 28. |
19630R91
|
[4] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .76" lg, Drive
|
IH
FITTING, 1/8-27 PTF 90 deg angle self tapping lub, replaces 271285 Superseded by part number: 87017581
|
| 29. |
87415
|
[2] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive, Replaces 274510
|
| 31. |
667533R1
|
[2] |
BOLT,3/8" - 16 x 2 7/8"
|
IH
3/8-16 x 2-7/8 special knotter jaw cam bolt
|
| . . |
664645R1
|
[2] |
LOCK NUT,3/8"-16, GB
|
IH
NUT, 3/8-16 lock Superseded by part number: 231-4206
|
| . . |
Q1597
|
[4] |
WASHER
|
IH
13/32 x 3/4 x 16 ga Superseded by part number: 86632580
|
| 32. |
667563R1
|
[2] |
CAM
|
IH
knotter jaw closing Superseded by part number: 667563R2
|
| 33. |
200425C1
|
[6] |
SPACER
|
IH
twine knife, (or as required)
|
| 34. |
495504R1
|
[6] |
SHIM
|
IH
cord holder .005 (or as required)
|
| 34. |
667547R1
|
[4] |
|
P
SHIM, cord holder, .005 plastic
|
| 34. |
667238R1
|
[4] |
SHIM
|
IH
cord holder, .003 (or as required)
|
| 35. |
495463R4
|
[2] |
KNIFE
|
IH
twine, optional with 668961R21 Superseded by part number: 200425C1, 668961R21, 86533411
|
| . . |
18654R1
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
|
IH
1/4-20 x 3/4 znd hex-hd mach Superseded by part number: 424-412
|
| . . |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 36. |
665197R1
|
[2] |
|
P
BRACKET, slack arm pivot
|
| . . |
120221
|
[6] |
NUT,Sl Rnd Hd, #10 - 24 x 1/2"
|
IH
SCREW, 10-24 x 1/2 znd slt-rd-hd mach Superseded by part number: 159920
|
| . . |
120361
|
[6] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[6] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 37. |
665281R91
|
[2] |
ARM
|
IH
ASSY, twine slack
|
| . . |
Q1504
|
[2] |
WASHER
|
IH
13/32 x 7/8 x 16 ga Superseded by part number: 495-21044
|
| 38. |
495432R1
|
[2] |
SCREW
|
IH
STUD, cord holder keeper pivot
|
| . . |
Q5066
|
[4] |
PIN
|
IH
6 ga x 31/32 str
|
| . . |
Q232
|
[2] |
WASHER
|
IH
37/64 x 1516 x 20 ga (or as required) Superseded by part number: 495-81172
|
| . . |
Q3476
|
[2] |
WASHER
|
IH
37/64 x 1516 x 22 ga (or as required) Superseded by part number: 495-81170
|
| 39. |
668963R1
|
[2] |
HOLDER
|
IH
BLADE, cord holder keeper, see Note A Superseded by part number: 495474R3
|
| 39. |
495474R3
|
[2] |
SHIM
|
IH
BLADE, cord holder keeper
|
| 40. |
11529PA
|
[2] |
SPRING
|
IH
slack arm
|
| 41. |
667408R1
|
[2] |
SPRING
|
IH
twine end retainer
|
| 42. |
668959R1
|
[2] |
GEAR
|
IH
PINION, bill hook, see Note A
|
| 42. |
495197R3
|
[2] |
GEAR
|
IH
PINION, bill hook Superseded by part number: 495197R4
|
| . . |
Q3854
|
[2] |
PIN
|
IH
6 ga x 27/32 str
|
| 43. |
666511R92
|
[2] |
TWISTER
|
IH
HOOK ASSY, knotter Superseded by part number: 204793C91
|
| 44. |
V618H
|
[2] |
SPACER
|
IH
PIECE, knotter frame wearing
|
| . . |
117898
|
[2] |
PIN
|
IH
5/32 x 1-1/16 str Superseded by part number: 17141R1
|
| 45. |
668960R1
|
[2] |
GEAR
|
IH
PINION, cord holder helical, see Note A
|
| 45. |
495425R1
|
[2] |
GEAR
|
IH
PINION, cord holder helical
|
| 46. |
495433R1
|
[2] |
SHAFT HOUSING
|
IH
SHAFT, cord holder drive Superseded by part number: 3101286R1
|
| 47. |
668958R1
|
[2] |
NO LONGER SERVICED
|
IH
PINION, cord holder drive bevel, see Note A Superseded by part number: 495192R3
|
| 47. |
495192R3
|
[2] |
GEAR
|
IH
PINION, cord holder drive bevel
|
| 48. |
668956R91
|
[2] |
|
P
KNOTTER ASSY, see Note A
|
| 48. |
666510R92
|
[2] |
KNOTTER ASSY.
|
IH
KNOTTER ASSY
|
| 48. |
668957R11
|
[2] |
|
P
FRAME W/WEARING PIECE, knotter, see Note A
|
| 48. |
495965R94
|
[2] |
KNOTTER ASSY.
|
IH
FRAME W/WEARING PIECE, knotter
|
| . . |
W6652
|
[4] |
WASHER
|
IH
15/32 x 1 x 16 ga Superseded by part number: 495-81158
|
| 49. |
667239R1
|
[1] |
DISC
|
IH
SHIM, knotter hook shaft & cord holder spindle, as required on 666511R92, 668415R1, 495433R1
|
| 50. |
668415R1
|
[2] |
SPINDLE
|
IH
cord holder
|
| 51. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter adjusting
|
| . . |
443100
|
[4] |
STUD
|
IH
No. 12 x 1/2 drive
|
| 52. |
Q3728
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/8" Tap
|
IH
3/8 x 2-1/8 sq tapered
|
| 53. |
219-86
|
[6] |
LUBE NIPPLE,1/8" NPTF
|
CAS
FITTING, 1/8-27 PTF self tapping lub
|
| 54. |
668978R1
|
[2] |
GEAR
|
IH
cord holder helical driven, see Note A
|
| 54. |
668416R1
|
[2] |
GEAR
|
IH
cord holder helical driven
|
| 55. |
668971R2
|
[1] |
|
P
CAM, knotter left, see Note A
|
| 55. |
667819R1
|
[1] |
CAM
|
IH
knotter left Superseded by part number: 667819R2
|
| 56. |
Q22
|
[1] |
KEY
|
IH
3/8 x 1/4 x 2-1/4 str
|
| 57. |
668636R1
|
[1] |
|
P
BEARING, knotter shaft, left
|
| 58. |
666517R92
|
[2] |
HOOK
|
IH
JAW ASSY, knotter Superseded by part number: 204793C91
|
| 59. |
668961R21
|
[2] |
KNIFE
|
IH
ASSY, twine, see Note A, optional with 495463R4
|
| 60. |
668962R1
|
[2] |
KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk
|
IH
BLADE, twine knife, see Note A
|
| . . |
436690
|
[2] |
SCREW,Slotted Pan Hd, #8-32 x 3/16"
|
IH
8-32 x 3/16 cd or zn-pltd pan-hd slt mach Superseded by part number: 470-1083
|
| 62. |
495619R95
|
[2] |
DISC
|
IH
DISK AND CLEANER ASSY, cord holder Superseded by part number: 495619R96
|
| 62. |
668964R92
|
[2] |
HOLDER
|
IH
DISK AND CLEANER ASSY, cord holder, see Note A
|
| 63. |
668965R1
|
[2] |
HUB
|
IH
cord holder, see Note A
|
| . . |
17348R1
|
[2] |
LOCK PIN,3/16" x 1 3/8", Slotted
|
IH
PIN, 3/16" x 1 3/8", Slotted Superseded by part number: 38-11222
|
| 64. |
672524R2
|
[2] |
DISC
|
IH
DISK, cord holder rear, replaces 495446R2, if 495446R2 is required order 672524R2, 668965R1, 668967R1, 17064R1 and six, 110532
|
| 64. |
668966R2
|
[2] |
DISC
|
IH
DISK, cord holder rear, see Note A
|
| 65. |
668967R1
|
[2] |
RETAINER
|
IH
SPACER, cord holder, see Note A
|
| 66. |
495462R3
|
[2] |
DISC
|
IH
DISK, cord holder front
|
| 66. |
668968R2
|
[2] |
DISC
|
IH
DISK, cord holder front, see Note A
|
| . . |
110532
|
[12] |
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
|
IH
Superseded by part number: 473-11010
|
| 67. |
495475R3
|
[2] |
HALF BLADE
|
IH
CLEANER, cord holder
|
| 67. |
668969R2
|
[2] |
CLEANER ASSY.
|
IH
CLEANER, cord holder, see Note A
|
| 68. |
668972R1
|
[1] |
|
P
SPACER, knotter cam left, see Note A
|
| 69. |
301020R1
|
[1] |
SNAP RING,#118, Ext
|
IH
Ring, Snap, , knotter shaft #118, Ext Superseded by part number: 167080
|
| 70. |
667588R1
|
[2] |
DISC
|
IH
SHIM, knotter to cam fit up (or as required)
|
| 71. |
754777R91
|
[1] |
SHOE
|
IH
ASSY, knotter shaft brake LH Superseded by part number: 754777R92
|
| 72. |
754778R91
|
[1] |
SHOE
|
IH
ASSY, knotter shaft brake RH Superseded by part number: 754778R92
|
| . . |
180044
|
[1] |
SPRING
|
NNA
SCREW, 1/4-20 x 2 znd hex-hd cap Superseded by part number: 413-432, 413-432, NLS
|
| . . |
120375
|
[2] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| 73. |
666515R1
|
[2] |
PIN
|
IH
knotter hook jaw
|
| 74. |
80722
|
[1] |
LUBE NIPPLE,3/16" x .55" lg, Drive
|
WIN
FITTING, 3/16 str drive lub, 004395 and up
|
