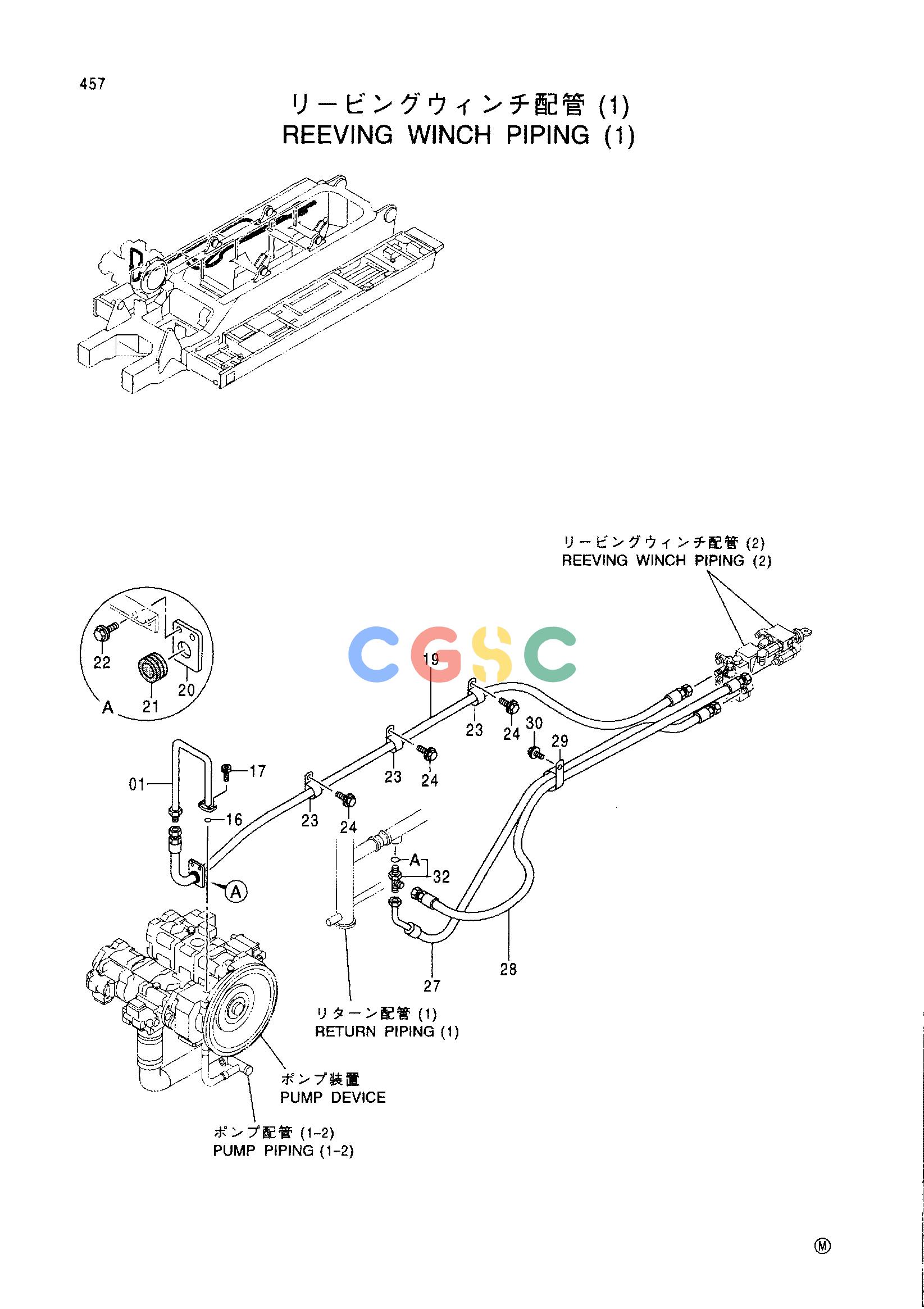

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | 8072612 | [1] | PIPE | |
| 16. | A811030 | [1] | O-RING | |
| 17. | M341036 | [4] | BOLT;SOCKET | |
| 19. | 4396252 | [1] | HOSE | |
| 20. | 9749698 | [1] | BRACKET | |
| 21. | 4207839 | [1] | BUSHING;RUBBER | |
| 22. | J011025 | [2] | BOLT;SEMS | |
| 23. | 4190291 | [3] | CLIP | |
| 24. | J011020 | [3] | BOLT;SEMS | |
| 27. | 4396266 | [1] | HOSE | |
| 28. | 4396267 | [1] | HOSE | |
| 29. | 4204136 | [1] | CLIP | |
| 30. | J011020 | [1] | BOLT;SEMS | |
| 32. | 4286917 | [1] | TEE;S | |
| 32A. | 4506424 | [1] | O-RING |
