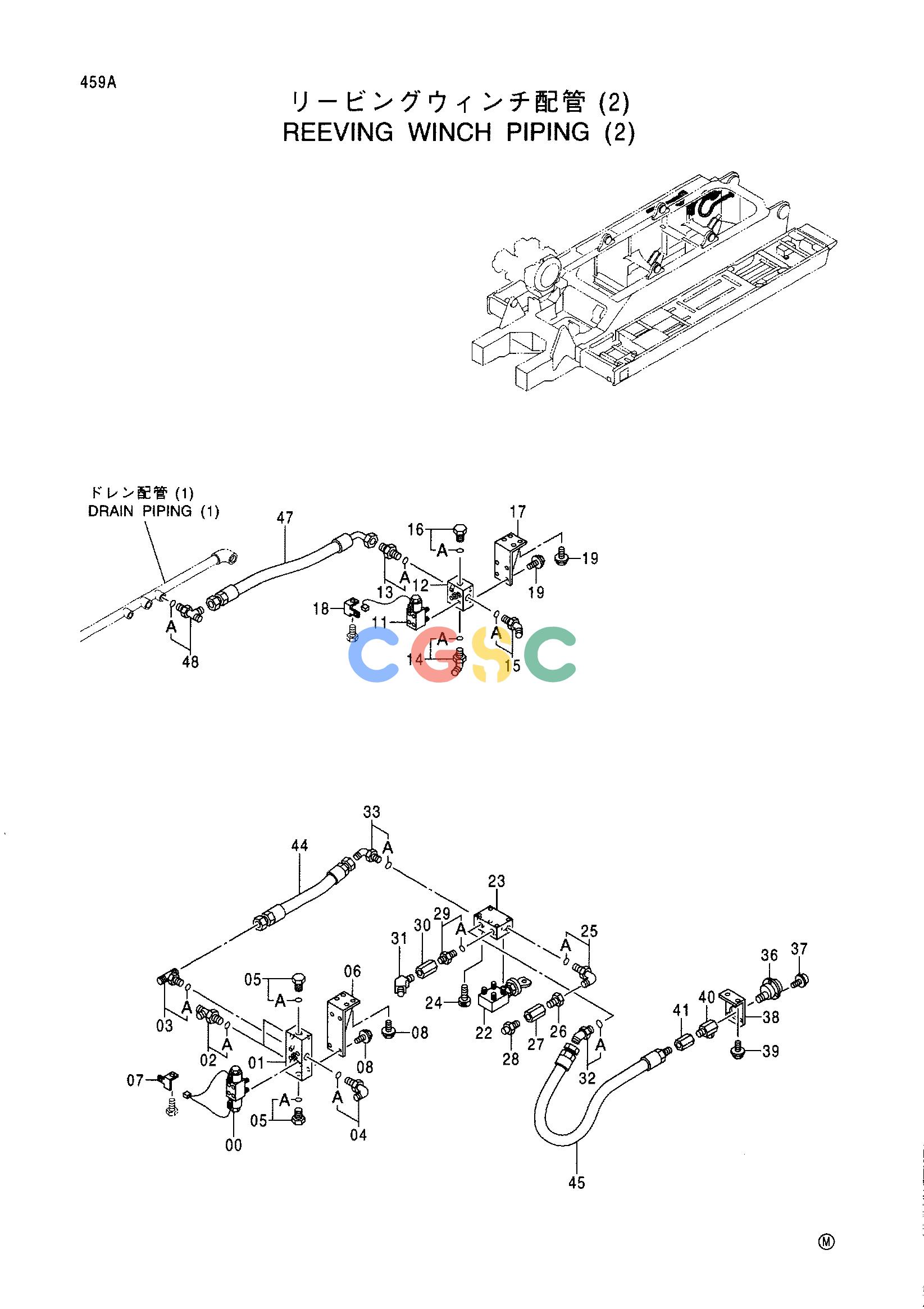

日立零件查询（CX1100）REEVING WINCH PIPING (2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
345 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4402606 | [1] | VALVE;SOLENOID | |
| 01. | 2041862 | [1] | MANIFOLD | |
| 02. | 4217343 | [2] | TEE;S | |
| 02A. | 4506418 | [1] | O-RING | |
| 03. | A852544 | [1] | TEE;S | |
| 03A. | 4506418 | [1] | O-RING | |
| 04. | 4169598 | [1] | ELBOW;S | |
| 04A. | 4506418 | [1] | O-RING | |
| 05. | 4093624 | [2] | PLUG | |
| 05A. | 957366 | [1] | O-RING | |
| 06. | 9751235 | [1] | BRACKET | |
| 07. | 4257159 | [1] | BRACKET | |
| 08. | J011020 | [8] | BOLT;SEMS | |
| 11. | 4410444 | [1] | VALVE;SOLENOID | |
| 12. | 3081146 | [1] | MANIFOLD | |
| 13. | 4200467 | [1] | ADAPTER;S | |
| 13A. | 957366 | [1] | O-RING | |
| 14. | 4156434 | [1] | ELBOW;S | |
| 14A. | 957366 | [1] | O-RING | |
| 15. | 4200472 | [1] | ELBOW;S | |
| 15A. | 957366 | [1] | O-RING | |
| 16. | 4093624 | [1] | PLUG | |
| 16A. | 957366 | [1] | O-RING | |
| 17. | 9751239 | [1] | BRACKET | |
| 18. | 4257159 | [1] | BRACKET | |
| 19. | J011020 | [8] | BOLT;SEMS | |
| 22. | 4393752 | [1] | VALVE;RELIEF | |
| 23. | 3083739 | [1] | MANIFOLD | |
| 24. | M340871 | [4] | BOLT;SOCKET | |
| 25. | 4174587 | [1] | ELBOW;S | |
| 25A. | 4506418 | [1] | O-RING | |
| 26. | 94-1603 | [1] | REDUCER | |
| 27. | 4163095 | [1] | VALVE;CHECK | |
| 28. | 94-1304 | [1] | ADAPTER;S | |
| 29. | 4234652 | [1] | ADAPTER;S | |
| 29A. | 4506418 | [1] | O-RING | |
| 30. | 9034570 | [1] | VALVE;CHECK | |
| 31. | 4182658 | [1] | ELBOW;S | |
| 32. | 4200326 | [1] | ELBOW;S | |
| 32A. | 4506418 | [1] | O-RING | |
| 33. | 4154672 | [1] | ELBOW;S | |
| 33A. | 4506418 | [1] | O-RING | |
| 36. | 4448468 | [1] | GAUGE;OIL-PRES. | |
| 37. | J450410 | [3] | SCREW;SEMS | |
| 38. | 4407640 | [1] | BRACKET | |
| 39. | J011020 | [2] | BOLT;SEMS | |
| 40. | 4151610 | [1] | DUMPER | |
| 41. | 94-0685 | [1] | REDUCER;S | |
| 44. | 4396258 | [1] | HOSE | |
| 45. | 4411271 | [1] | HOSE | |
| 47. | 4265642 | [1] | HOSE | |
| 48. | 4303003 | [1] | TEE;S | |
| 48A. | 4506418 | [1] | O-RING | |
