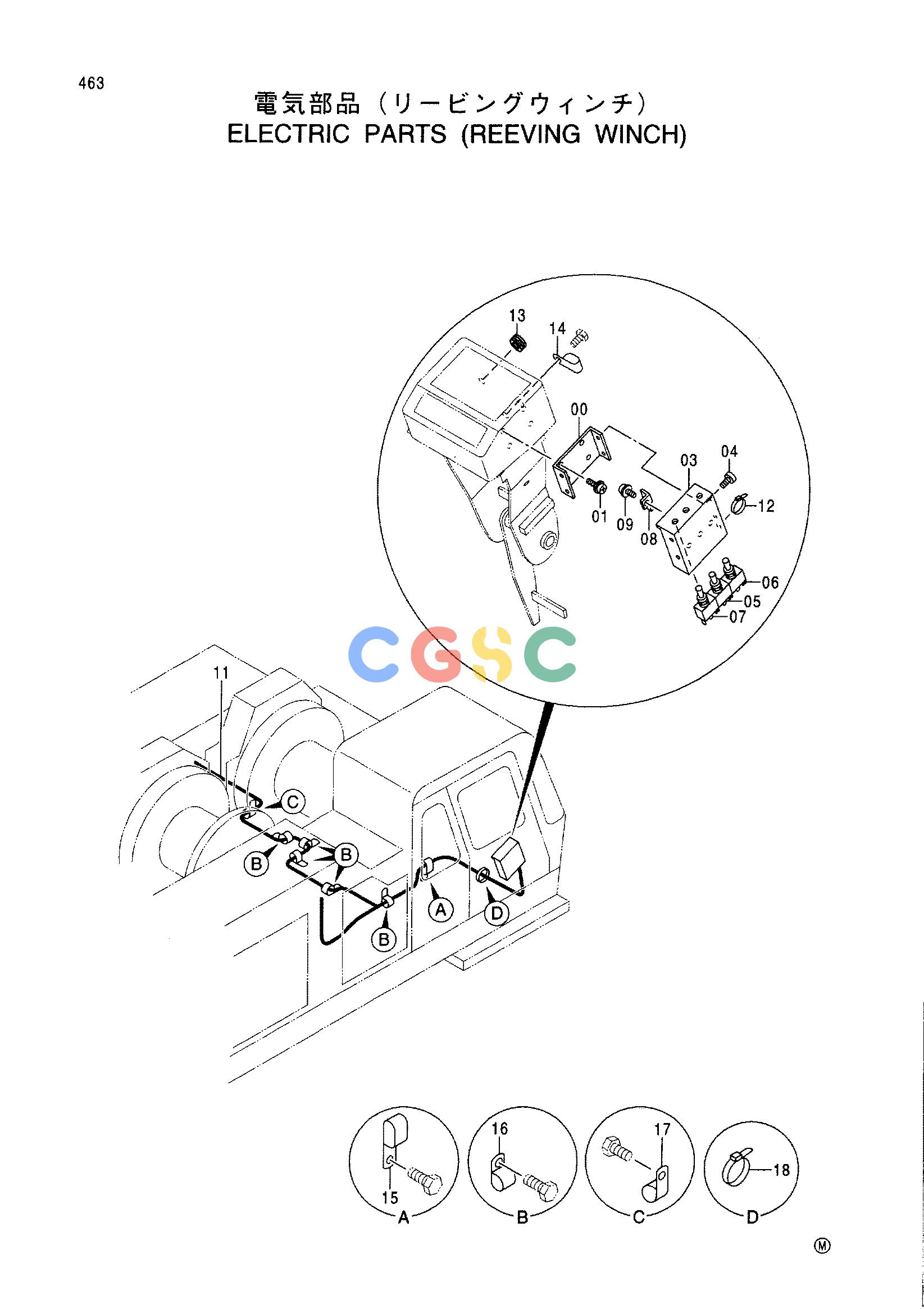

日立零件查询（CX1100）ELECTRIC PARTS (REEVING WINCH) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4411904 | [1] | BRACKET | |
| 01. | J450614 | [4] | SCREW;SEMS | |
| 03. | 7035734 | [1] | COVER | |
| 04. | J650510 | [4] | SCREW | |
| 05. | 4409608 | [1] | SWITCH | |
| 06. | 4409609 | [1] | SWITCH | |
| 07. | 4409610 | [1] | SWITCH | |
| 08. | 4252767 | [3] | BRACKET | |
| 09. | J450610 | [3] | SCREW;SEMS | |
| 11. | 3084032 | [1] | HARNESS;WIRE | |
| 12. | 4055311 | [4] | CLIP;BAND | |
| 13. | 4207698 | [1] | BUSHING;RUBBER | |
| 14. | 4192018 | [1] | CLIP | |
| 15. | 4190292 | [1] | CLIP | |
| 16. | 4190291 | [5] | CLIP | |
| 17. | 4192035 | [1] | CLIP | |
| 18. | 4055312 | [10] | CLIP;BAND | |
