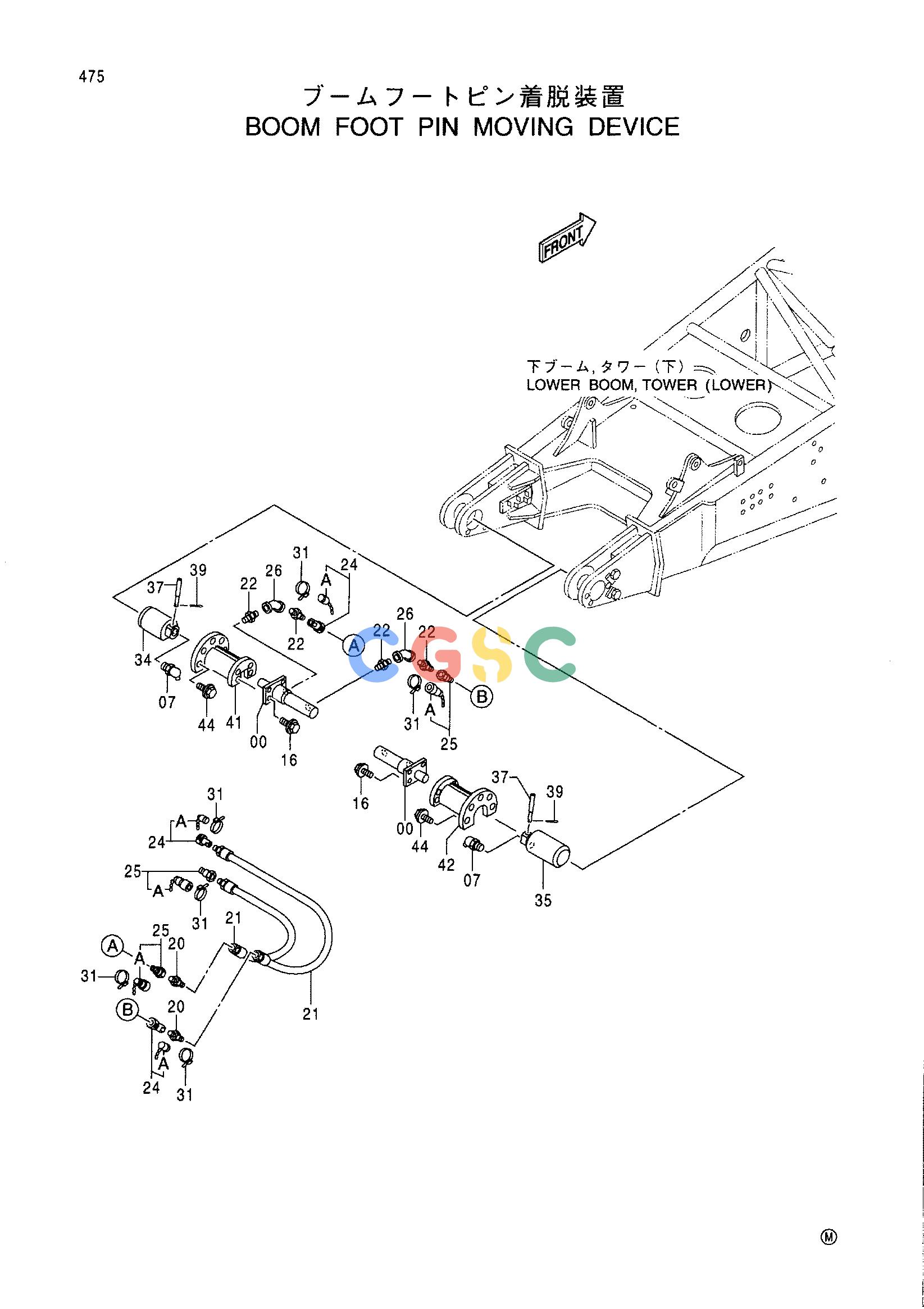

日立零件查询（CX1100）BOOM FOOT PIN MOVING DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
887 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4275325 | [2] | CYL;OIL | |
| 07. | J75581 | [2] | FITTING;GREASE | |
| 16. | J011240 | [8] | BOLT;SEMS | |
| 20. | 94-1302 | [2] | ADAPTER;S | |
| 21. | 4254410 | [2] | HOSE | |
| 22. | 94-1702 | [8] | ADAPTER;S | |
| 24. | 4022907 | [4] | JOINT;SELF-SEAL | |
| 24A. | 4072595 | [1] | CAP | |
| 25. | 4022908 | [4] | JOINT;SELF-SEAL | |
| 25A. | 4072596 | [1] | CAP | |
| 26. | 94-0601 | [4] | ELBOW;S | |
| 31. | 4044883 | [8] | CLAMP | |
| 34. | 3091599 | [1] | AXLE (L) | |
| 35. | 3091600 | [1] | AXLE (R) | |
| 37. | 4457391 | [2] | PIN | |
| 39. | 4022700 | [2] | PIN;LOCK | |
| 41. | 8075974 | [1] | BRACKET (L) | |
| 42. | 8075973 | [1] | BRACKET (R) | |
| 44. | J021245 | [10] | BOLT;SEMS | |
