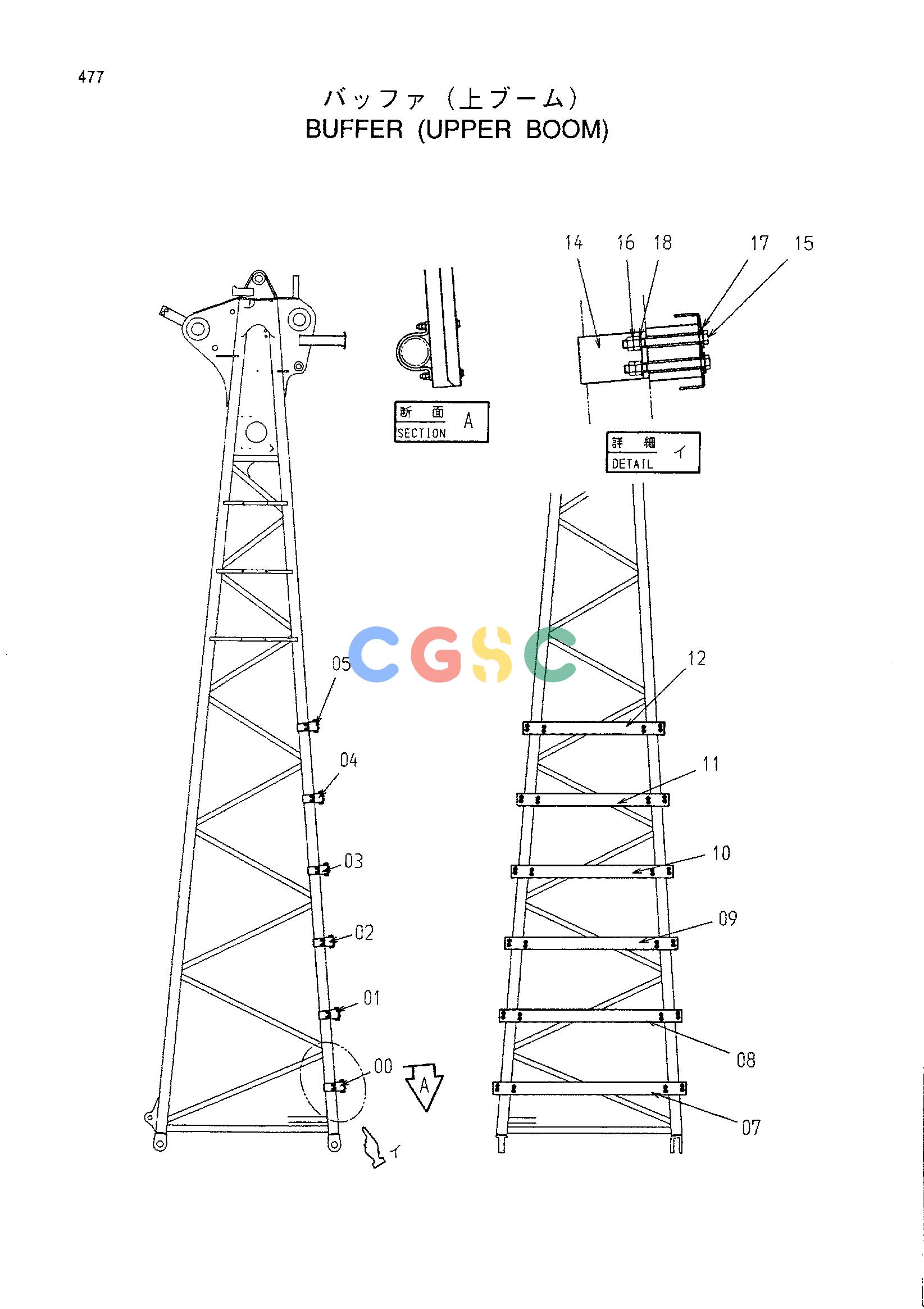

日立零件查询（CX1100）BUFFER (UPPER BOOM) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4458292 | [1] | BUFFER | |
| 01. | 4458293 | [1] | BUFFER | |
| 02. | 4458294 | [1] | BUFFER | |
| 03. | 4458295 | [1] | BUFFER | |
| 04. | 4458296 | [1] | BUFFER | |
| 05. | 4458297 | [1] | BUFFER | |
| 07. | 4458298 | [1] | SUPPORT | |
| 08. | 4458299 | [1] | SUPPORT | |
| 09. | 4458300 | [1] | SUPPORT | |
| 10. | 4458301 | [1] | SUPPORT | |
| 11. | 4458302 | [1] | SUPPORT | |
| 12. | 4458303 | [1] | SUPPORT | |
| 14. | 4190913 | [12] | CLAMP | |
| 15. | J901206 | [48] | BOLT | |
| 16. | J950012 | [96] | NUT | |
| 17. | 449490 | [48] | WASHER | |
| 18. | A590112 | [48] | WASHER;PLANE | |
