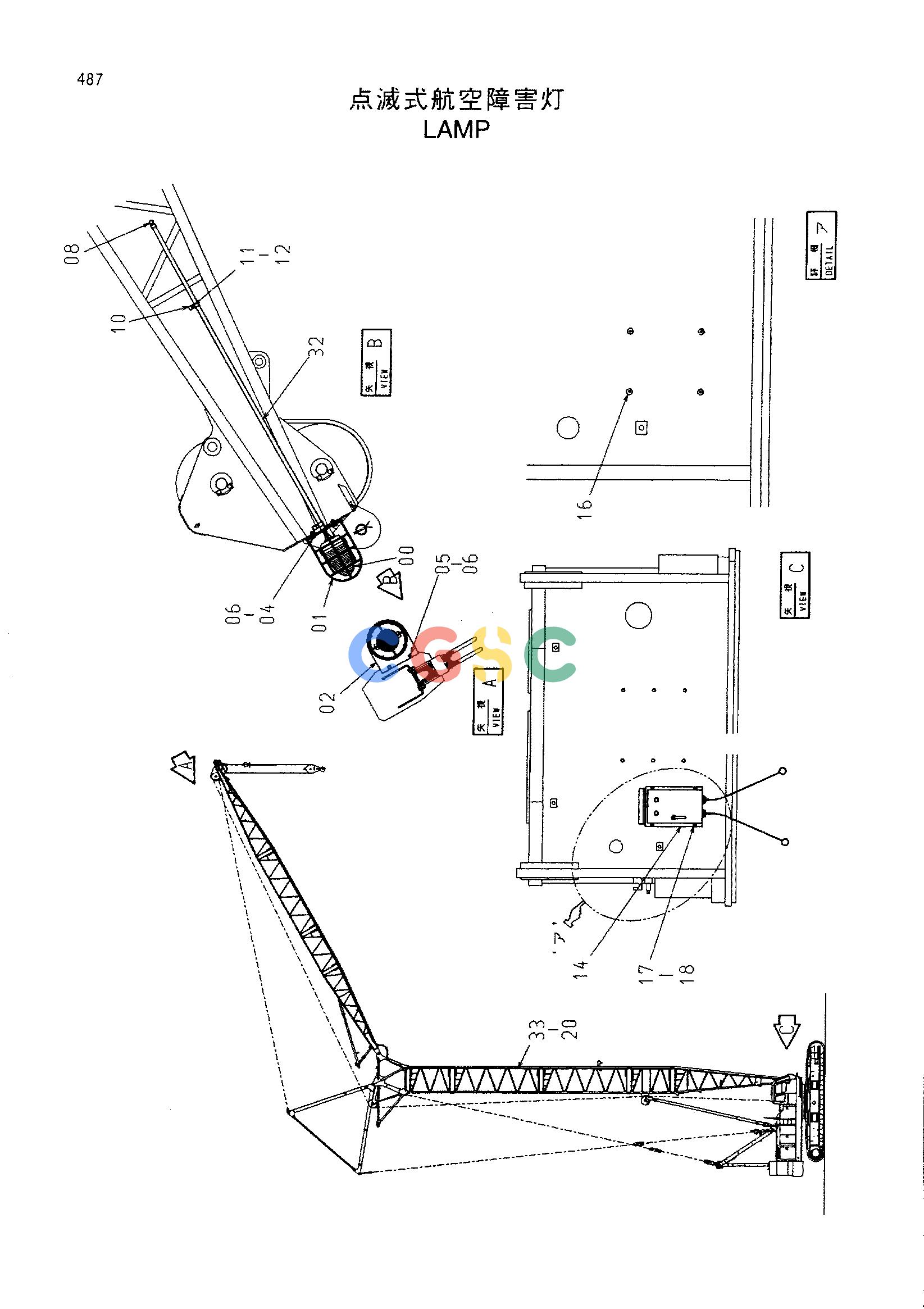

日立零件查询（CX1100）LAMP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
336 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4046379 | [1] | LAMP | |
| 01. | 9724107 | [1] | GUARD | |
| 02. | 9709856 | [1] | BRACKET | |
| 04. | J901230 | [2] | BOLT | |
| 05. | J901235 | [2] | BOLT | |
| 06. | M660012 | [4] | NUT;U | |
| 08. | 4012936 | [1] | CONNECTOR | |
| 10. | 4053595 | [2] | CLAMP;PIPE | |
| 11. | J901255 | [2] | BOLT | |
| 12. | M660012 | [2] | NUT;U | |
| 14. | 4135757 | [1] | FLASHER | |
| 16. | 4295237 | [4] | SEAT;SCREW | |
| 17. | M430616 | [4] | SCREW | |
| 18. | A590906 | [4] | WASHER;SPRING | |
| 20. | 4055312 | [45] | CLIP;BAND | |
| 32. | 9733618 | [1] | PIPE | |
| 33. | 4245998 | [1] | WIRING | |
