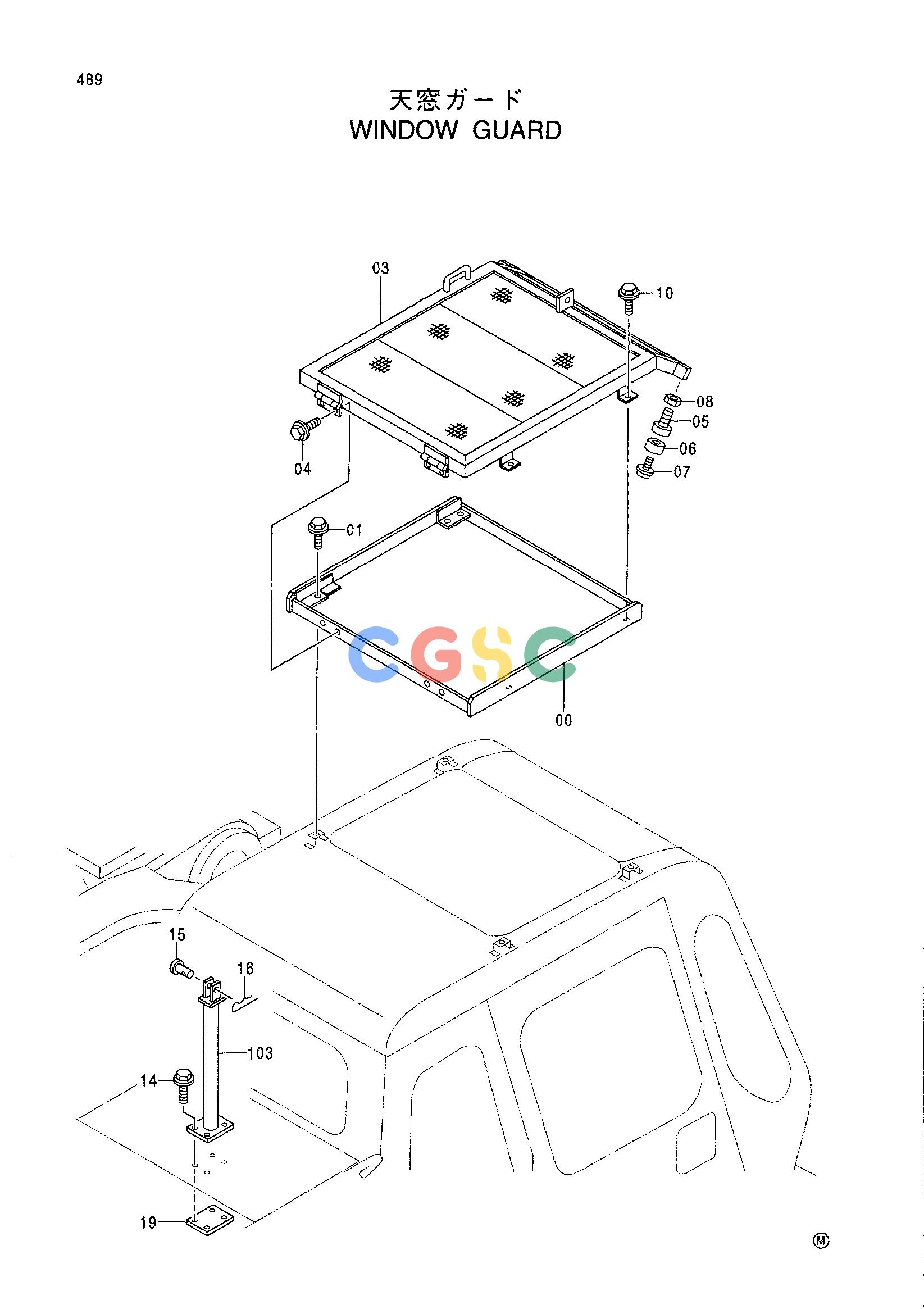

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 8062144 | [1] | BRACKET | |
| 01. | J021225 | [4] | BOLT;SEMS | |
| 03. | 6014885 | [1] | GUARD | |
| 04. | J020825 | [4] | BOLT;SEMS | |
| 05. | 4348048 | [2] | ROD | |
| 06. | 4227780 | [2] | RUBBER;CUSHION | |
| 07. | J450520 | [2] | SCREW;SEMS | |
| 08. | J950012 | [2] | NUT | |
| 10. | J021025 | [2] | BOLT;SEMS | |
| 14. | J011025 | [4] | BOLT;SEMS | |
| 15. | 4124555 | [1] | PIN | |
| 16. | 4022701 | [1] | PIN;LOCK | |
| 19. | 4348046 | [1] | SEAT;SCREW | |
| 103. | 9756888 | [1] | BRACKET |
