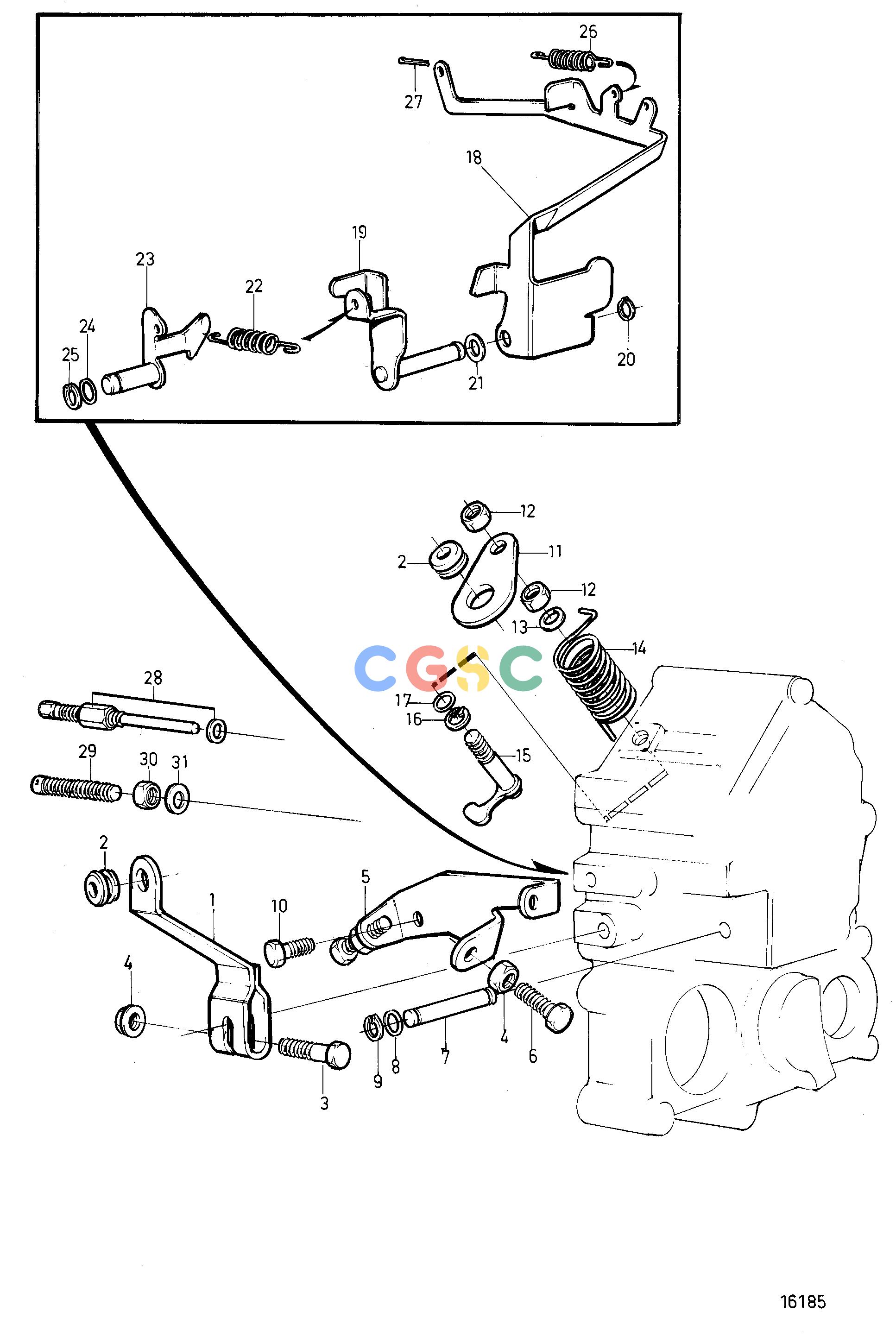

沃尔沃零件查询MD2010A; MD2020A; MD2030A; MD2040A; MS2B-R; MS2A-D; MS2A-E; MS2L-D; MS2L-E; 120S-D; 120S-E; MD2010; MD2030; MD2040; MD2020Fuel SystemRegulation SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580036
|
[1] |
Intermediate lever, speed control
|
|
| 2. |
843109
|
[2] |
Bushing
|
|
| 3. |
3580037
|
[1] |
Screw
|
|
| 4. |
945407
|
[3] |
Flange nut
|
(861915)
|
| 5. |
3580042
|
[1] |
Stay
|
|
| 6. |
3580044
|
[2] |
Screw
|
|
| 7. |
3580590
|
[1] |
Shaft
|
|
| 8. |
3580040
|
[1] |
O-ring
|
|
| 9. |
3580041
|
[1] |
Lock ring
|
|
| 10. |
861842
|
[1] |
Screw
|
(3580043)
|
| 11. |
3580051
|
[1] |
Intermediate lever, stop
|
|
| 12. |
3580050
|
[2] |
Nut
|
|
| 13. |
191172
|
[1] |
Washer
|
(3580049)
|
| 14. |
3580048
|
[1] |
Spring
|
|
| 15. |
3580045
|
[1] |
Arm
|
|
| 16. |
3580046
|
[1] |
Lock ring
|
|
| 17. |
3580047
|
[1] |
O-ring
|
|
| 18. |
3580587
|
[1] |
Intermediate lever
|
|
| 19. |
|
|
|
|
| 20. |
3580030
|
[1] |
Lock ring
|
|
| 21. |
3580031
|
[1] |
Washer
|
|
| 22. |
3580589
|
[1] |
Spring
|
|
| 23. |
3580034
|
[1] |
Arm
|
|
| 24. |
3580035
|
[1] |
O-ring
|
|
| 25. |
3580030
|
[1] |
Lock ring
|
|
| 26. |
3580057
|
[1] |
Spring
|
|
| 27. |
3580032
|
[1] |
Locking pin
|
|
| 28. |
3580086
|
[1] |
Adjusting screw
|
|
| 29. |
3580089
|
[1] |
Screw
|
|
| 30. |
3580088
|
[1] |
Nut
|
|
| 31. |
3580087
|
[1] |
Sealing ring
|
|
