日立零件查询（CX1100）ENGINE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
738 次

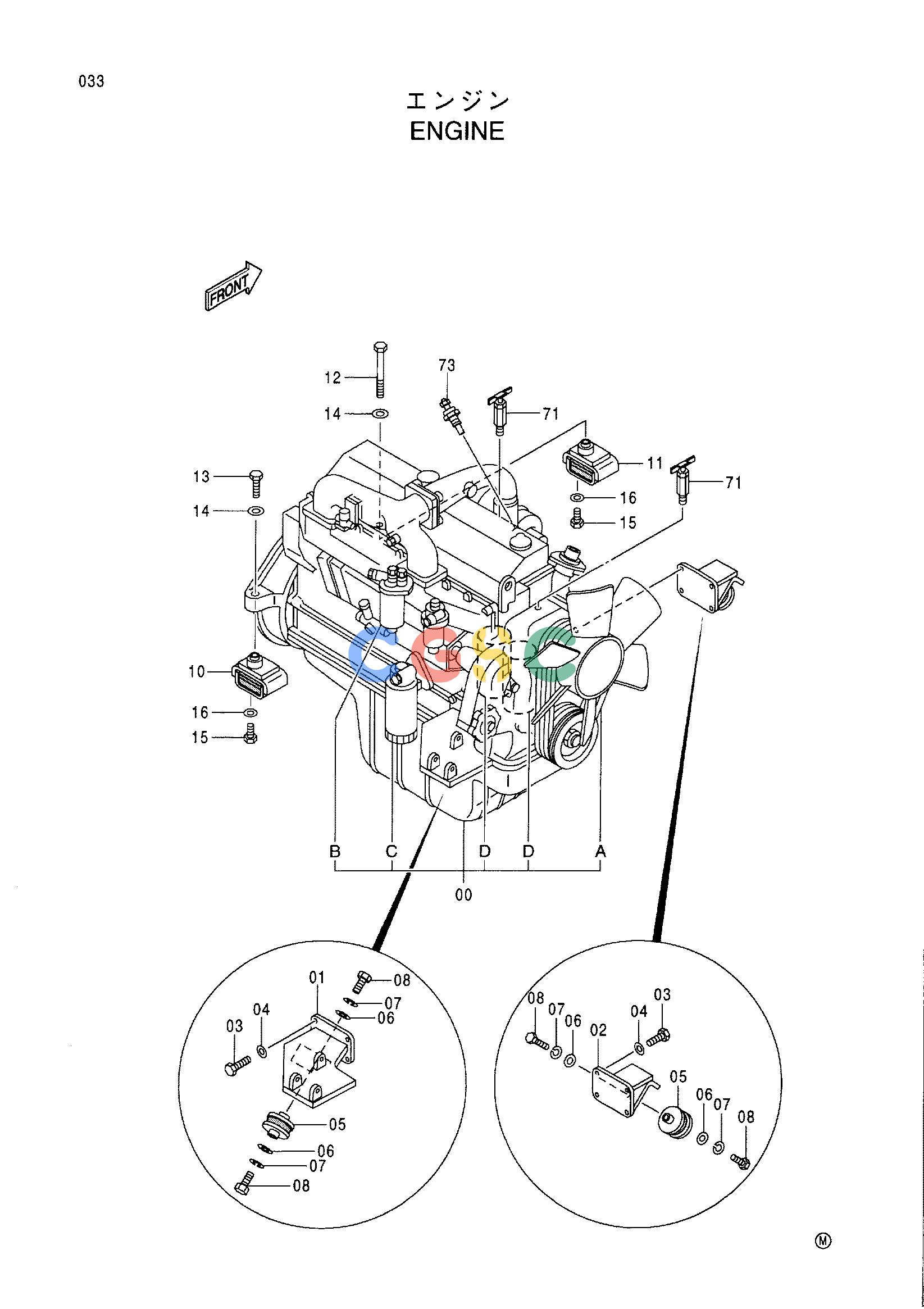

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4388132 | [1] | ENGINE | |
| 00A. | 4195700 | [1] | BELT;FAN (1=3 PIECES) | |
| 00B. | 4192631 | [1] | FILTER;FUEL | |
| 00C. | 4430378 | [1] | FILTER;OIL | |
| 00D. | 4470167 | [2] | FILTER;OIL | |
| 01. | 7039716 | [1] | BRACKET | |
| 02. | 8026129 | [1] | BRACKET | |
| 03. | J901435 | [8] | BOLT | |
| 04. | 4056190 | [8] | WASHER | |
| 05. | 489716 | [2] | RUBBER | |
| 06. | 4450645 | [4] | WASHER | |
| 07. | A590916 | [4] | WASHER;SPRING | |
| 08. | M111628 | [4] | BOLT | |
| 10. | 4210133 | [1] | CUSHION | |
| 11. | 4210134 | [1] | CUSHION | |
| 12. | J932208 | [1] | BOLT | |
| 13. | J932280 | [1] | BOLT | |
| 14. | 4089822 | [2] | WASHER | |
| 15. | J931635 | [4] | BOLT | |
| 16. | 4087197 | [4] | WASHER | |
| 71. | 4245743 | [2] | COCK | |
| 73. | 4257129 | [1] | UNIT | |
