日立零件查询（CX1100）RADIATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
953 次

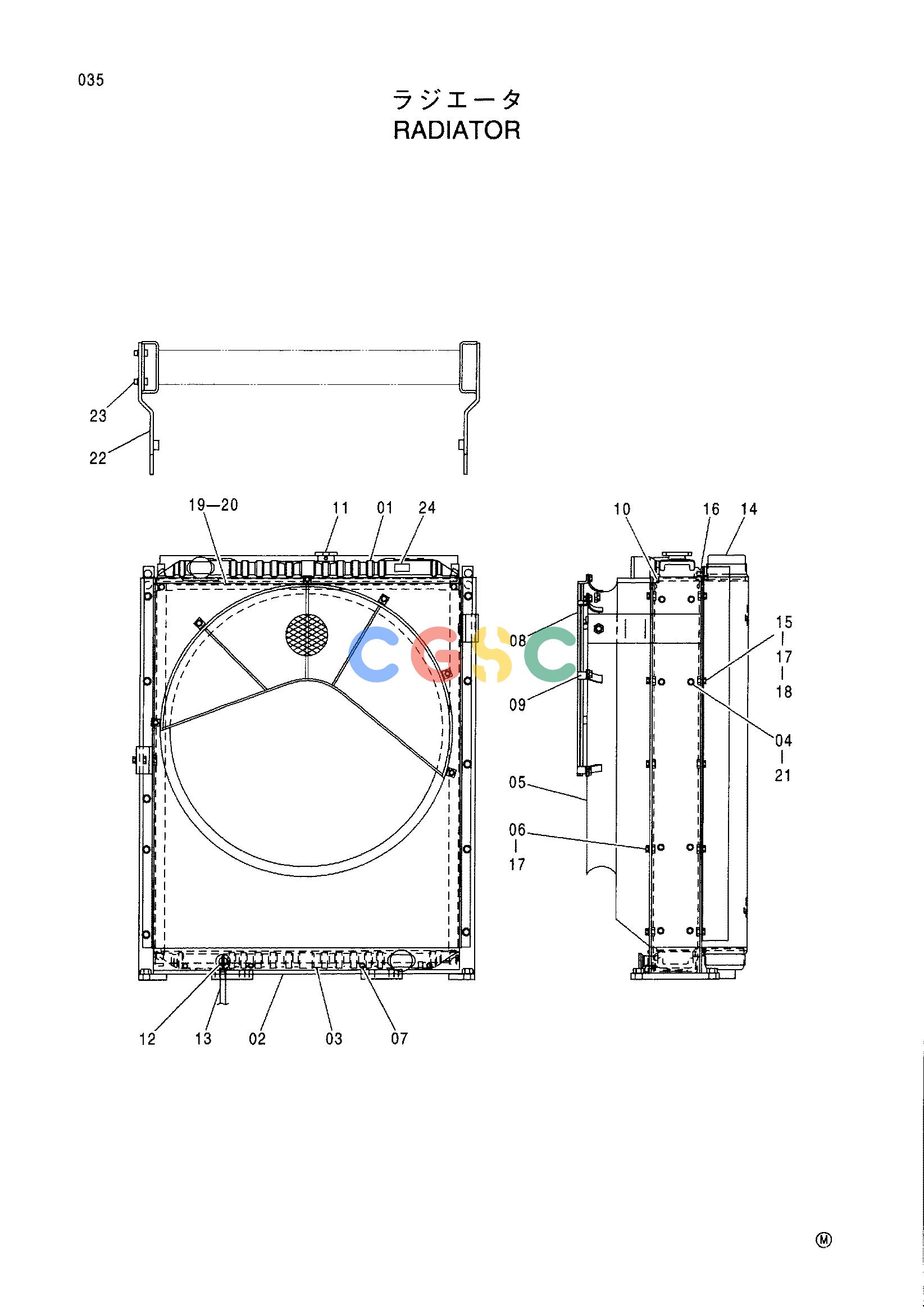

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4388099 | [1] | RADIATOR ASS'Y | |
| 01. | 4486654 | [1] | CORE;RADIATOR | |
| 02. | 4485156 | [1] | FRAME | |
| 03. | 4487056 | [1] | PACKING | |
| 04. | 4371258 | [16] | BOLT | |
| 05. | 4487929 | [1] | GUARD;FAN | |
| 06. | J901025 | [10] | BOLT | |
| 07. | 4487930 | [4] | BOLT | |
| 08. | 4487929 | [1] | GUARD;FAN | |
| 09. | 4371258 | [2] | BOLT | |
| 10. | 4487932 | [2] | PACKING | |
| 11. | 4343268 | [1] | CAP | |
| 12. | 4148705 | [1] | PLUG;DRAIN | |
| 13. | 4487952 | [1] | HOSE | |
| 14. | 4486655 | [1] | COOLER;OIL | |
| 15. | J901025 | [10] | BOLT | |
| 16. | 4487953 | [2] | PACKING | |
| 17. | A590910 | [20] | WASHER;SPRING | |
| 18. | A590110 | [10] | WASHER;PLANE | |
| 19. | 4484954 | [2] | ROD | |
| 20. | 4371258 | [4] | BOLT | |
| 21. | 4280906 | [4] | RINER | |
| 22. | 4487956 | [1] | PLATE | |
| 23. | 4487958 | [2] | BOLT | |
| 24. | +++++++ | [1] | NAME-PLATE | |
