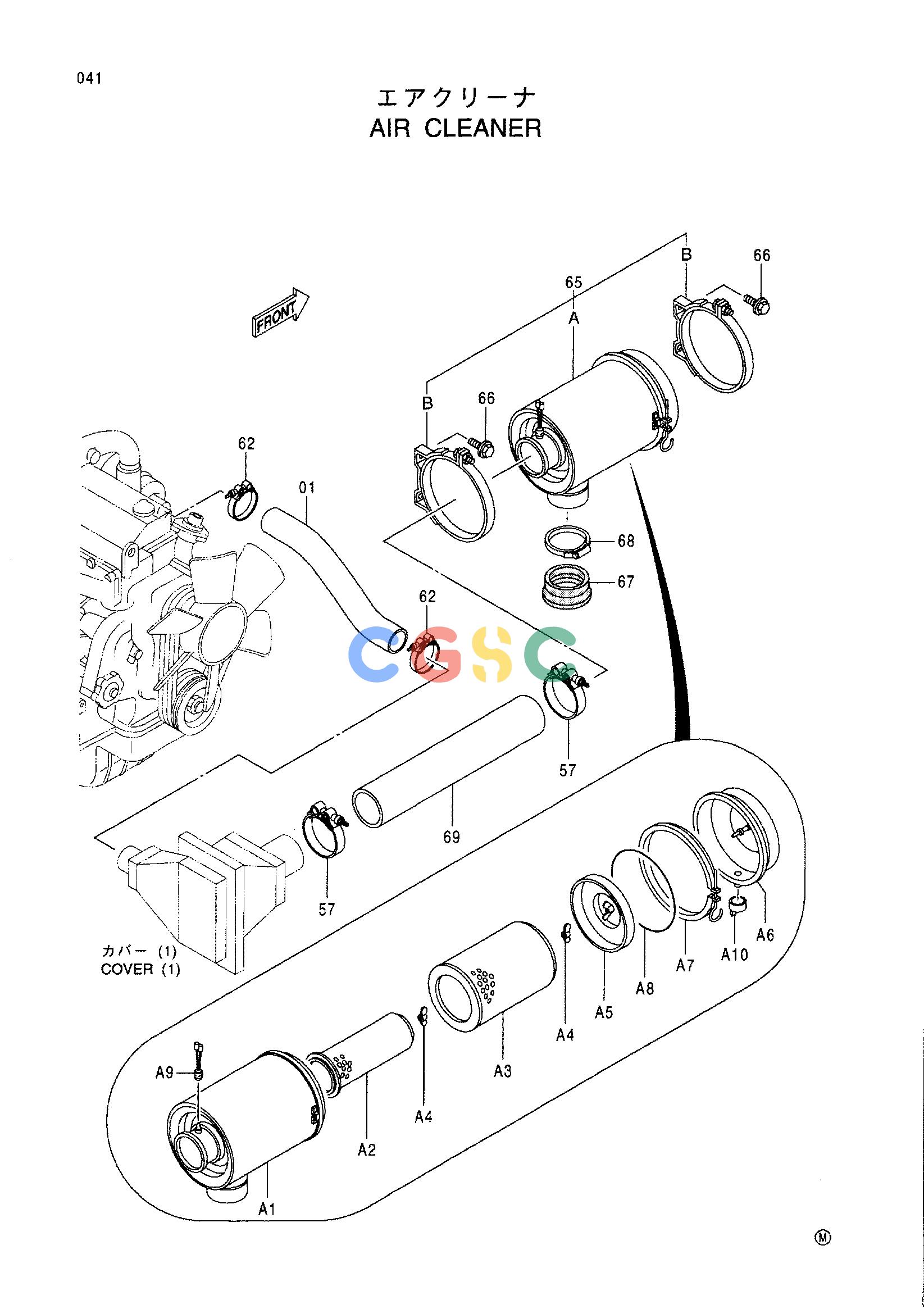

日立零件查询（CX1100）AIR CLEANER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 3075909 | [1] | HOSE;AIR | |
| 57. | 4282496 | [2] | CLAMP;HOSE | |
| 62. | 4263766 | [2] | CLAMP;HOSE | |
| 69. | 4406757 | [1] | HOSE;AIR | |
| 65. | 4366493 | [1] | CLEANER;AIR | |
| 65A. | 4365914 | [1] | CLEANER;AIR | |
| 65A1. | 4371846 | [1] | BODY | |
| 65A2. | 4337639 | [1] | ELEMENT (INNER) | |
| 65A3. | 4237663 | [1] | ELEMENT (OUTER) | |
| 65A4. | 4163739 | [2] | NUT | |
| 65A5. | 4237664 | [1] | BAFFLE | |
| 65A6. | 4237665 | [1] | COVER | |
| 65A7. | 4237666 | [1] | CLAMP | |
| 65A8. | 4237667 | [1] | O-RING | |
| 65A9. | 4224238 | [1] | INDICATOR | |
| 65A1. | 4237668 | [1] | VALVE | |
| 65B. | 4023563 | [2] | BAND | |
| 66. | J011030 | [4] | BOLT;SEMS | |
| 67. | 4341732 | [1] | COVER;RUBBER | |
| 68. | 4511820 | [1] | CLAMP;HOSE | |
