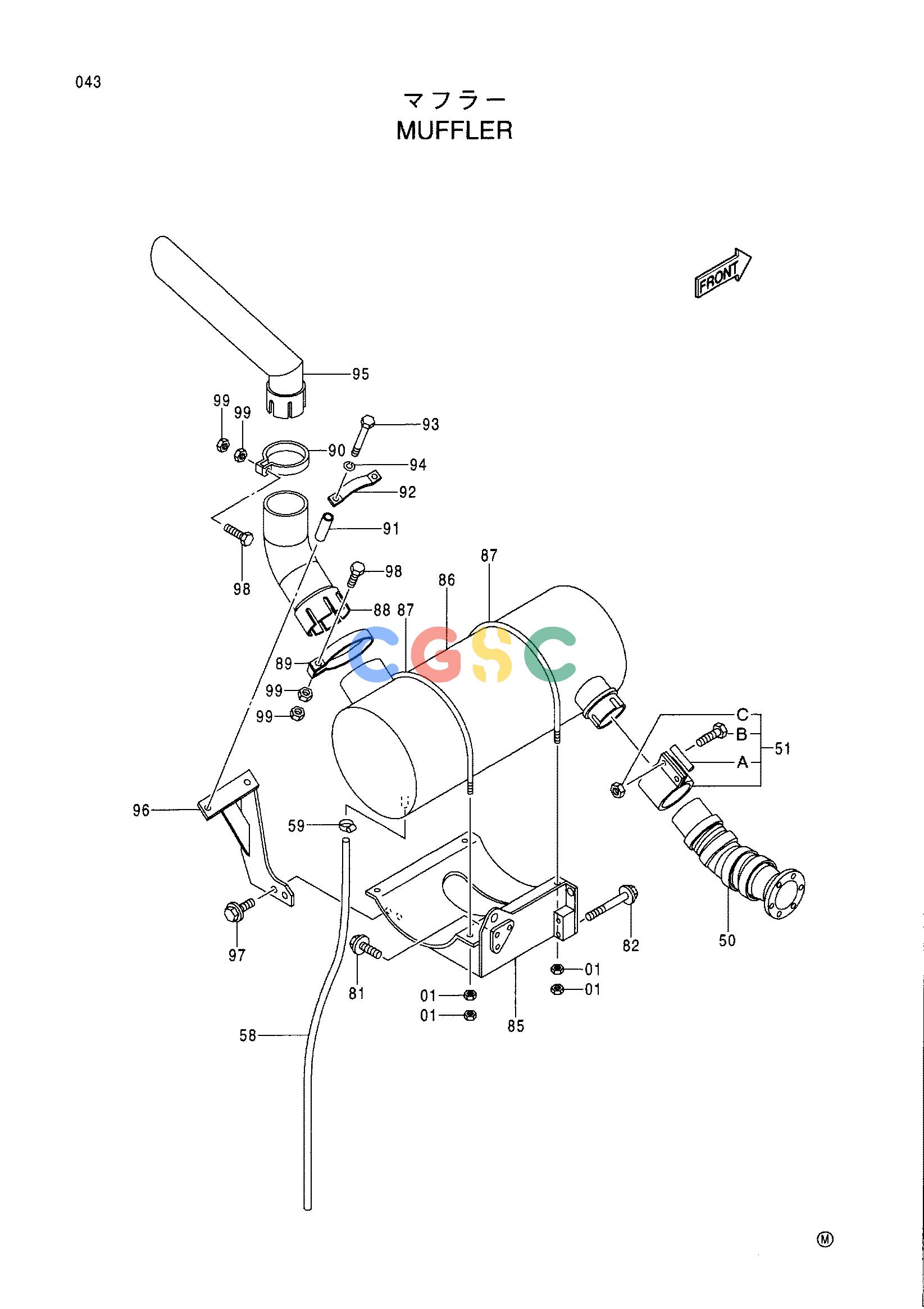

日立零件查询（CX1100）MUFFLER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
335 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | J950010 | [8] | NUT | |
| 50. | 7033002 | [1] | PIPE;EXHAUST | |
| 51. | 4246030 | [1] | CLAMP | |
| 51A. | 4162835 | [1] | GASKET | |
| 51B. | 4162836 | [2] | BOLT | |
| 51C. | 4162837 | [2] | NUT | |
| 58. | 4375436 | [1] | TUBE | |
| 59. | 4508575 | [1] | CLAMP;HOSE | |
| 81. | J021030 | [3] | BOLT;SEMS | |
| 82. | J021070 | [2] | BOLT;SEMS | |
| 85. | 7033991 | [1] | BRACKET | |
| 86. | 4409240 | [1] | MUFFLER | |
| 87. | 4395550 | [2] | BOLT;U | |
| 88. | 8073780 | [1] | PIPE;EXHAUST | |
| 89. | 4413291 | [1] | CLAMP | |
| 90. | 4407944 | [1] | CLAMP | |
| 91. | 4121309 | [2] | SPACER | |
| 92. | 4395749 | [1] | CLAMP | |
| 93. | J901002 | [2] | BOLT | |
| 94. | A590910 | [2] | WASHER;SPRING | |
| 95. | 8073774 | [1] | PIPE;EXHAUST | |
| 96. | 8073788 | [1] | BRACKET | |
| 97. | J021030 | [2] | BOLT;SEMS | |
| 98. | J901045 | [2] | BOLT | |
| 99. | J950010 | [4] | NUT | |
