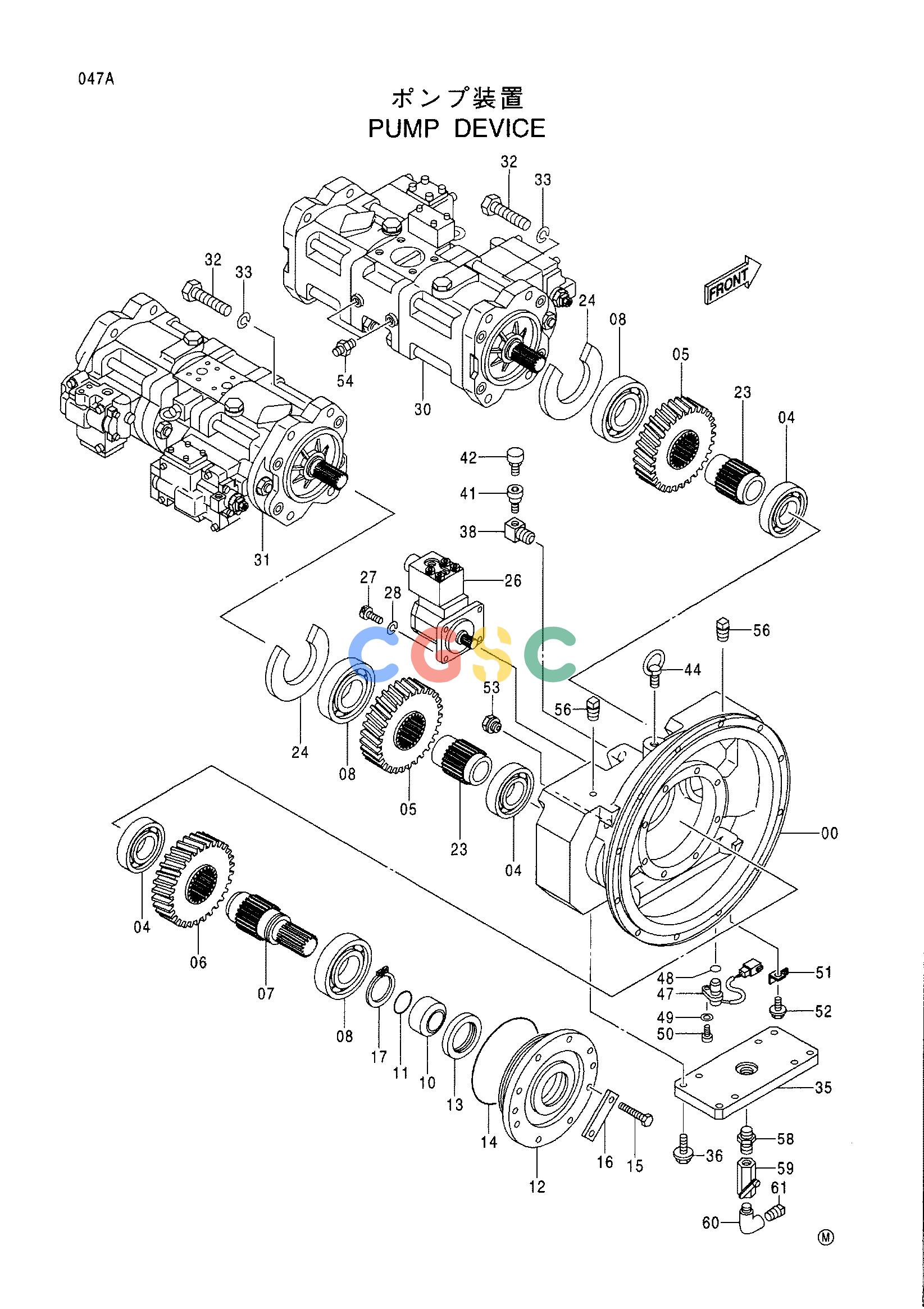

日立零件查询（CX1100）PUMP DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 0002072 | [1] | CASING;GEAR | |
| 04. | 4069219 | [3] | BRG.;BALL | |
| 05. | 3074687 | [2] | GEAR;DRIVE | |
| 06. | 3074686 | [1] | GEAR;CENTER | |
| 07. | 2038815 | [1] | SHAFT;CENTER | |
| 08. | 969424 | [3] | BRG.;BALL | |
| 10. | 4362233 | [1] | SLEEVE | |
| 11. | A810050 | [1] | O-RING | I4038475 |
| 11. | 4038475 | [1] | O-RING | |
| 12. | 3074688 | [1] | COVER;SEAL | |
| 13. | 4113299 | [1] | SEAL;OIL | |
| 14. | A810210 | [1] | O-RING | |
| 15. | J901240 | [8] | BOLT | |
| 16. | 4368840 | [4] | WASHER;LOCK | |
| 17. | 991349 | [1] | RING;RETAINING | |
| 23. | 2038802 | [2] | SHAFT;DRIVE | |
| 24. | 4362215 | [2] | SPACER | |
| 26. | 4362740 | [1] | PUMP;GEAR | |
| 27. | M340825 | [4] | BOLT;SOCKET | |
| 28. | A590908 | [4] | WASHER;SPRING | |
| 30. | 4362739 | [1] | PUMP;PISTON | |
| 31. | 4363239 | [1] | PUMP;PISTON | |
| 32. | J912075 | [8] | BOLT | |
| 33. | A590920 | [8] | WASHER;SPRING | |
| 35. | 4362216 | [1] | COVER | |
| 36. | J011245 | [8] | BOLT;SEMS | |
| 38. | 4408692 | [1] | ELBOW | |
| 41. | 4414269 | [1] | REDUCER | |
| 42. | 4414258 | [1] | BREATHER;AIR | |
| 44. | 4083751 | [1] | BOLT;EYE | |
| 47. | 4265372 | [1] | SENSOR;REVOL. | |
| 48. | 4306888 | [1] | O-RING | |
| 49. | A590106 | [1] | WASHER;PLANE | |
| 50. | M340616 | [1] | BOLT;SOCKET | |
| 51. | 4252767 | [1] | BRACKET | |
| 52. | J010610 | [1] | BOLT;SEMS | |
| 53. | 4249822 | [1] | GAUGE;LEVEL | |
| 54. | 4374270 | [2] | THROTTLE | |
| 56. | 94-2024 | [1] | PLUG | |
| 58. | 4208243 | [1] | ADAPTER;S | |
| 59. | 94-4029 | [1] | COCK | |
| 60. | 94-0633 | [1] | ELBOW;S | |
| 61. | 94-2025 | [1] | PLUG | |
