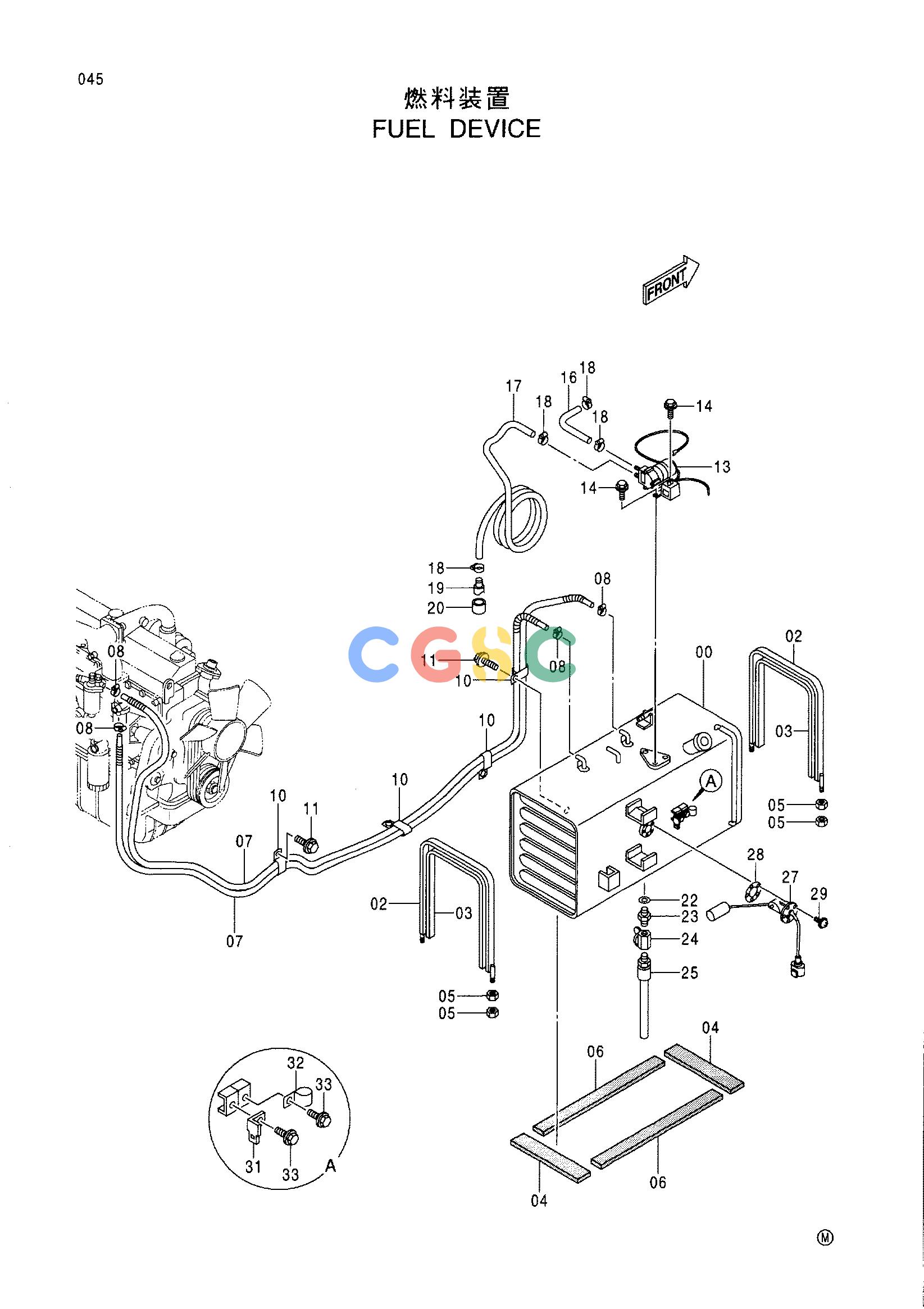

日立零件查询（CX1100）FUEL DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
672 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4361308 | [1] | TANK;FUEL | |
| 02. | 9740766 | [2] | BAND | |
| 03. | 4315211 | [2] | FELT | |
| 04. | 4319915 | [2] | PLATE;RUBBER | |
| 05. | J950010 | [8] | NUT | |
| 06. | 4377229 | [2] | PLATE;RUBBER | |
| 07. | 4402993 | [2] | HOSE;FUEL | |
| 08. | 4514700 | [4] | CLIP;HOSE | |
| 10. | 4192034 | [6] | CLIP | |
| 11. | J011020 | [3] | BOLT;SEMS | |
| 13. | 4315973 | [1] | PUMP | |
| 14. | J020825 | [3] | BOLT;SEMS | |
| 16. | 4142579 | [1] | HOSE | |
| 17. | 4369343 | [1] | HOSE;FUEL | |
| 18. | 4504367 | [4] | CLAMP;HOSE | |
| 19. | 4103527 | [1] | STRAINER | |
| 20. | 4507650 | [1] | STRAINER | |
| 22. | A890318 | [1] | PACKING | |
| 23. | 4142580 | [1] | ADAPTER;S | |
| 24. | 4374265 | [1] | VALVE;BALL | |
| 25. | 4155523 | [1] | HOSE | |
| 27. | 4257128 | [1] | FLOAT | |
| 28. | 4269607 | [1] | PACKING | |
| 29. | J450510 | [5] | SCREW;SEMS | |
| 31. | 4257159 | [1] | BRACKET | |
| 32. | 4190261 | [1] | CLIP | |
| 33. | J011020 | [2] | BOLT;SEMS | |
