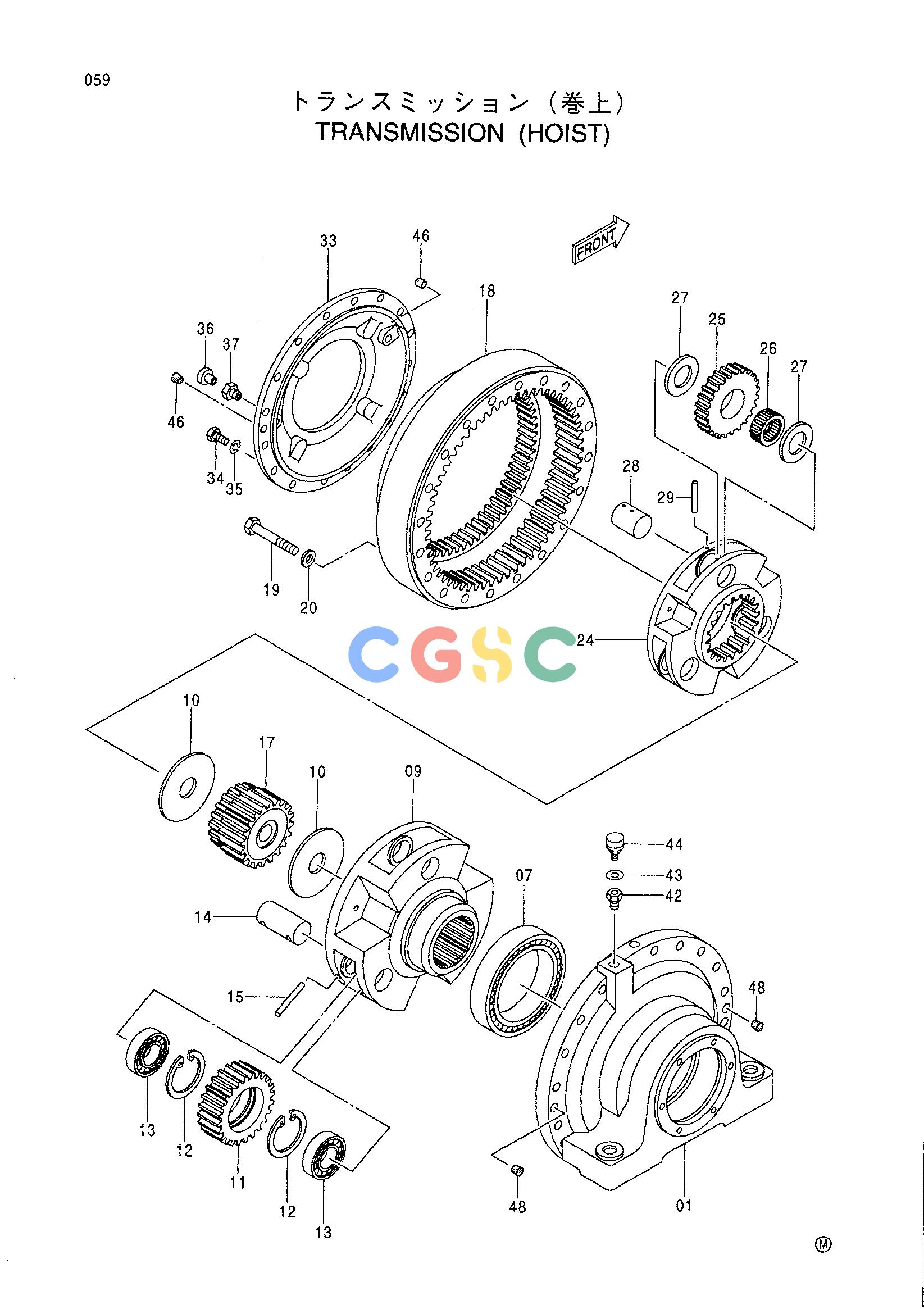

日立零件查询（CX1100）TRANSMISSION (HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | TRANSMISSION (HOIST) | |
| 01. | 2038865 | [1] | CASE | |
| 07. | 4096550 | [1] | BRG.;ROL. | |
| 09. | 2025849 | [1] | CARRIER | |
| 10. | 4219935 | [2] | SPACER | |
| 11. | 3041587 | [3] | GEAR;PLANETARY | |
| 12. | 4116292 | [6] | RING;RETAINING | |
| 13. | 931504 | [6] | BRG.;SPH.ROL. | |
| 14. | 4219937 | [3] | PIN | |
| 15. | 4218000 | [3] | PIN;SPRING | |
| 17. | 3041589 | [1] | GEAR;SUN | |
| 18. | 2038912 | [1] | GEAR;RING | |
| 19. | J932212 | [20] | BOLT | |
| 20. | 4089822 | [20] | WASHER | |
| 24. | 2025853 | [1] | CARRIER | |
| 25. | 3075570 | [3] | GEAR;PLANETARY | |
| 26. | 4220797 | [3] | BRG;NEEDLE | |
| 27. | 4220796 | [6] | PLATE;THRUST | |
| 28. | 4219936 | [3] | PIN | |
| 29. | 4197125 | [3] | PIN;SPRING | |
| 33. | 2036879 | [1] | CASE | |
| 34. | J901450 | [16] | BOLT | |
| 35. | A590914 | [16] | WASHER;SPRING | |
| 36. | 4249822 | [1] | GAUGE;LEVEL | |
| 37. | 4249823 | [1] | REDUCER | |
| 42. | 4096990 | [1] | ADAPTER;S | |
| 43. | D912218 | [1] | WASHER | |
| 44. | 989058 | [1] | BREATHER;AIR | |
| 46. | 439641 | [2] | CORK | |
| 48. | 431578 | [2] | CORK | |
