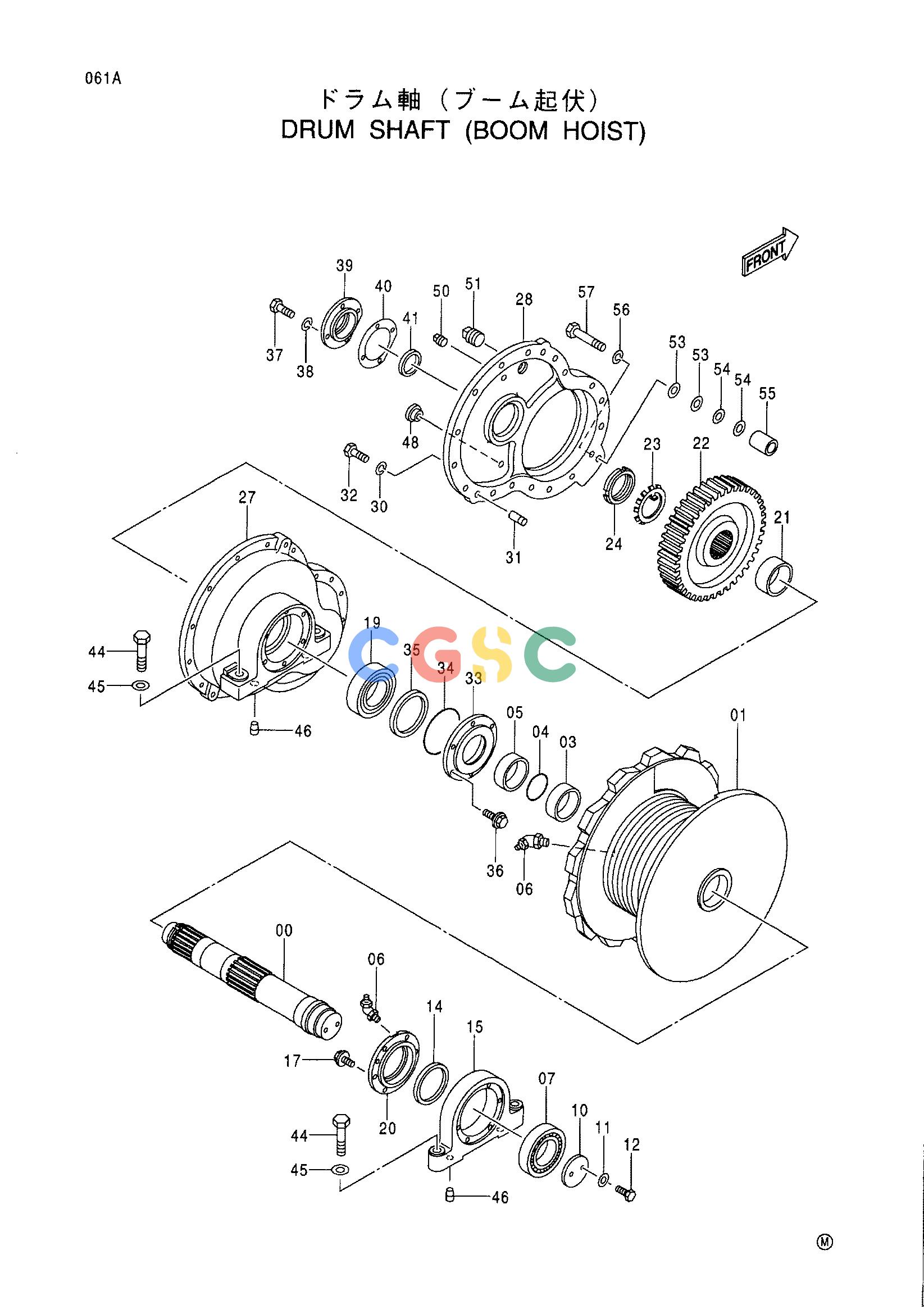

日立零件查询（CX1100）DRUM SHAFT (BOOM HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 2037128 | [1] | SHAFT | |
| 01. | 1012249 | [1] | DRUM;BOOMHOIST | |
| 03. | 4334662 | [1] | SPACER | |
| 04. | A810110 | [1] | O-RING | |
| 05. | 4175879 | [1] | SPACER | |
| 06. | J75581 | [2] | FITTING;GREASE | |
| 07. | 4162997 | [1] | BRG.;BALL | |
| 10. | X4811 | [1] | RETAINER | |
| 11. | 4086891 | [2] | WASHER | |
| 12. | J901232 | [2] | BOLT | |
| 14. | 930659 | [1] | SEAL;OIL | |
| 15. | 3035424 | [1] | PEDESTAL | |
| 17. | J011035 | [6] | BOLT;SEMS | |
| 19. | 4510122 | [1] | BRG.;SPH.ROL. | |
| 20. | 3042805 | [1] | RETAINER | |
| 21. | 4136437 | [1] | SPACER | |
| 22. | 3030018 | [1] | GEAR | |
| 23. | 454962 | [1] | WASHER;BRG. | |
| 24. | 454945 | [1] | NUT;BRG. | |
| 27. | 1008231 | [1] | CASE;GEAR | |
| 28. | 1008232 | [1] | COVER | |
| 30. | A590916 | [10] | WASHER;SPRING | |
| 31. | 4162766 | [2] | PIN;KNOCK | |
| 32. | J901650 | [10] | BOLT | |
| 33. | 3035018 | [1] | RETAINER | |
| 34. | A810190 | [1] | O-RING | |
| 35. | 984194 | [1] | SEAL;OIL | |
| 36. | J011230 | [6] | BOLT;SEMS | |
| 37. | J901225 | [4] | BOLT | |
| 38. | A590912 | [4] | WASHER;SPRING | |
| 39. | 4141855 | [1] | COVER | |
| 40. | 4141854 | [1] | PACKING | |
| 41. | 923810 | [1] | SEAL;OIL | |
| 44. | M923011 | [4] | BOLT | |
| 45. | 4114408 | [4] | WASHER | |
| 46. | 4122547 | [4] | PIN;KNOCK | |
| 48. | 971380 | [1] | GAUGE;LEVEL | |
| 50. | 94-2025 | [1] | PLUG | |
| 51. | 94-2028 | [1] | PLUG | |
| 53. | 4162764 | [2] | SHIM | |
| 54. | 4162765 | [2] | SHIM | |
| 55. | 4162763 | [1] | SPACER | |
| 56. | A590920 | [1] | WASHER;SPRING | |
| 57. | J932011 | [1] | BOLT | |
