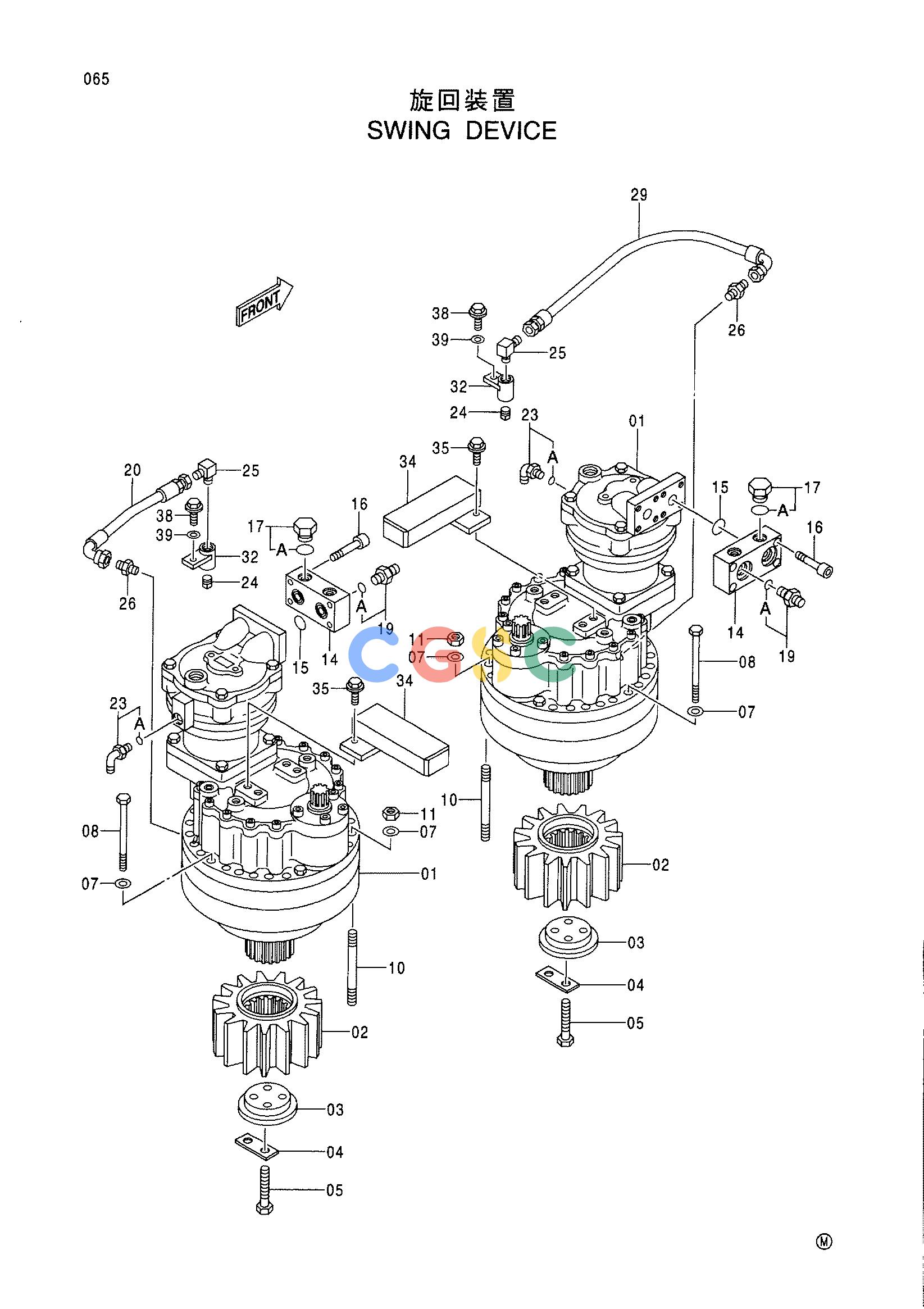

日立零件查询（CX1100）SWING DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4429583 | [2] | MOTOR;PLUNGER | |
| 02. | 3074733 | [2] | PINION | |
| 03. | 4431380 | [2] | RETAINER | |
| 04. | 4139213 | [4] | WASHER;LOCK | |
| 05. | J901670 | [8] | BOLT | |
| 07. | J222016 | [36] | WASHER | |
| 08. | J931613 | [32] | BOLT | |
| 10. | 4314083 | [4] | BOLT;STUD | |
| 11. | J950016 | [4] | NUT | |
| 14. | 3065597 | [2] | BLOCK | |
| 15. | A811030 | [4] | O-RING | |
| 16. | M341245 | [8] | BOLT;SOCKET | |
| 17. | 4092534 | [4] | PLUG | |
| 17A. | 4509180 | [1] | O-RING | |
| 19. | 4139973 | [4] | ADAPTER;S | |
| 19A. | 4506424 | [1] | O-RING | |
| 20. | 4388647 | [1] | HOSE | |
| 23. | 4156434 | [2] | ELBOW;S | |
| 23A. | 957366 | [1] | O-RING | |
| 24. | 94-2024 | [2] | PLUG | |
| 25. | 4154658 | [2] | ELBOW;S | |
| 26. | 4221287 | [2] | ADAPTER;S | |
| 29. | 4326025 | [1] | HOSE | |
| 32. | 9731324 | [2] | SOCKET | |
| 34. | 9742784 | [2] | COVER | |
| 35. | J011235 | [4] | BOLT;SEMS | |
| 38. | J011030 | [2] | BOLT;SEMS | |
| 39. | J217083 | [2] | WASHER | |
