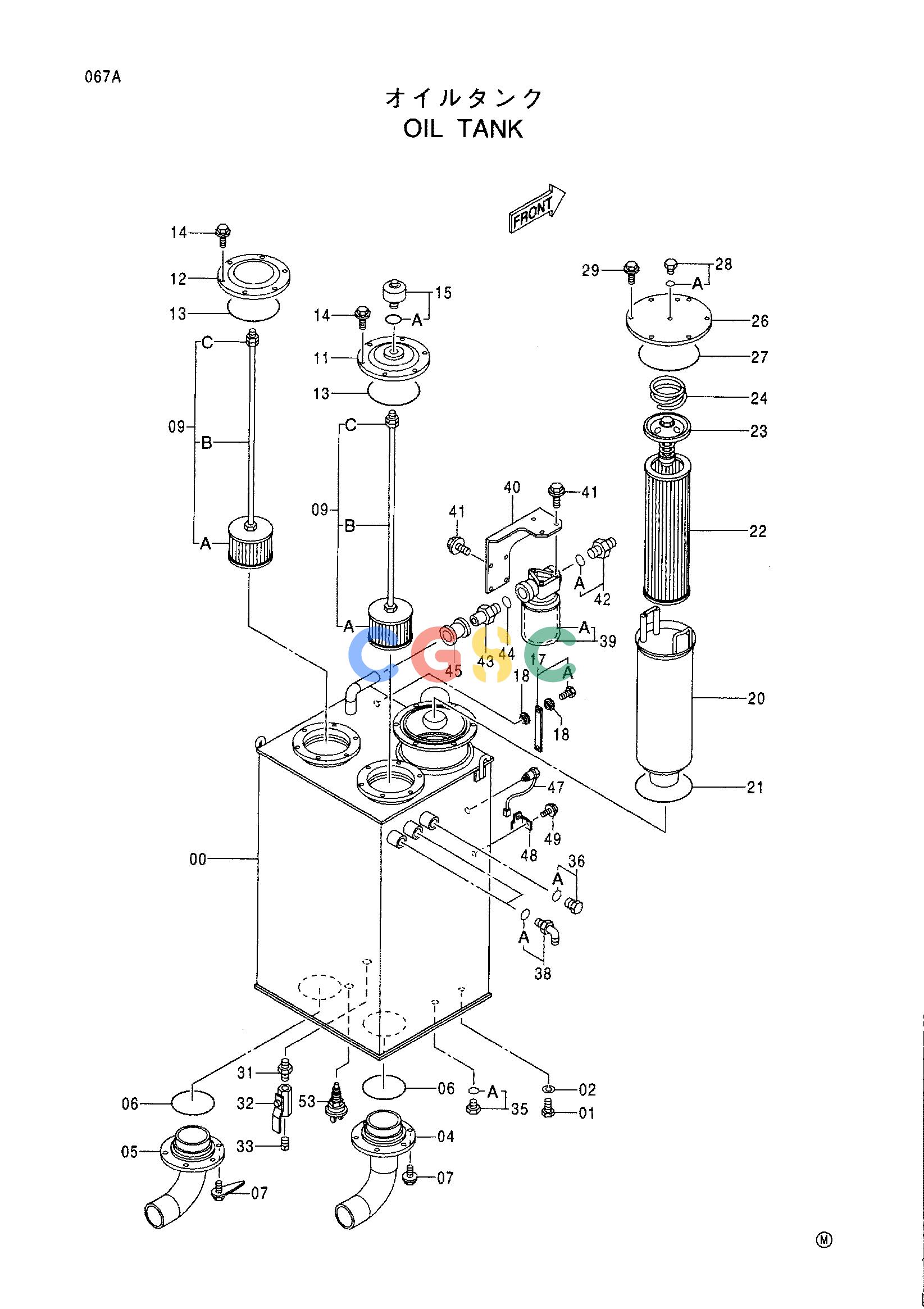

日立零件查询（CX1100）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6015738 | [1] | TANK;OIL | |
| 01. | J901630 | [4] | BOLT | |
| 02. | A590916 | [4] | WASHER;SPRING | |
| 04. | 8065322 | [1] | PIPE;SUCTION | |
| 05. | 8065325 | [1] | PIPE;SUCTION | |
| 06. | A810165 | [2] | O-RING | |
| 07. | J011025 | [12] | BOLT;SEMS | |
| 09. | 4364336 | [2] | FILTER;SUCTION | |
| 09A. | 4393926 | [1] | STRAINER | |
| 09B. | 4393927 | [1] | ROD | |
| 09C. | J950010 | [3] | NUT | |
| 11. | 8056948 | [1] | COVER | |
| 12. | 8065415 | [1] | COVER | |
| 13. | A810160 | [2] | O-RING | |
| 14. | J011022 | [12] | BOLT;SEMS | |
| 15. | 4141320 | [1] | BREATHER;AIR | |
| 15A. | 4167549 | [1] | ELEMENT | |
| 17. | 8053499 | [1] | GAUGE;LEVEL | |
| 17A. | 4100967 | [2] | BOLT | |
| 18. | 449558 | [4] | WASHER;SEAL | |
| 20. | 7036546 | [1] | CASE;FILTER | |
| 21. | A810200 | [1] | O-RING | |
| 22. | 4366198 | [1] | ELEMENT | |
| 23. | 4067978 | [1] | VALVE | |
| 24. | 4068540 | [1] | SPRING | |
| 26. | 3075276 | [1] | COVER | |
| 27. | A810230 | [1] | O-RING | |
| 28. | 4092534 | [1] | PLUG | |
| 28A. | 4509180 | [1] | O-RING | |
| 29. | J011025 | [6] | BOLT;SEMS | |
| 31. | 94-1705 | [1] | ADAPTER;S | |
| 32. | 94-4030 | [1] | COCK | |
| 33. | 94-2026 | [1] | PLUG | |
| 35. | 4174542 | [1] | PLUG | |
| 35A. | 4506424 | [1] | O-RING | |
| 36. | 4113926 | [2] | PLUG | |
| 36A. | 4506429 | [1] | O-RING | |
| 38. | 4202113 | [2] | ELBOW;S | |
| 38A. | 4506429 | [1] | O-RING | |
| 39. | 4318737 | [1] | FILTER;DRAIN | |
| 39A. | 4205684 | [1] | CARTRIDGE | |
| 40. | 3075277 | [1] | BRACKET | |
| 41. | J011225 | [7] | BOLT;SEMS | |
| 42. | 4317614 | [1] | ADAPTER;S | |
| 42A. | 970860 | [1] | O-RING | |
| 43. | 4318377 | [1] | ADAPTER;S | |
| 44. | 970860 | [1] | O-RING | |
| 45. | 4071213 | [1] | COUPLING | |
| 47. | 4259787 | [1] | SWITCH;LEVEL | |
| 48. | 4257159 | [1] | BRACKET | |
| 49. | J011020 | [1] | BOLT;SEMS | |
| 53. | 4425539 | [1] | SWITCH;THERMO | |
