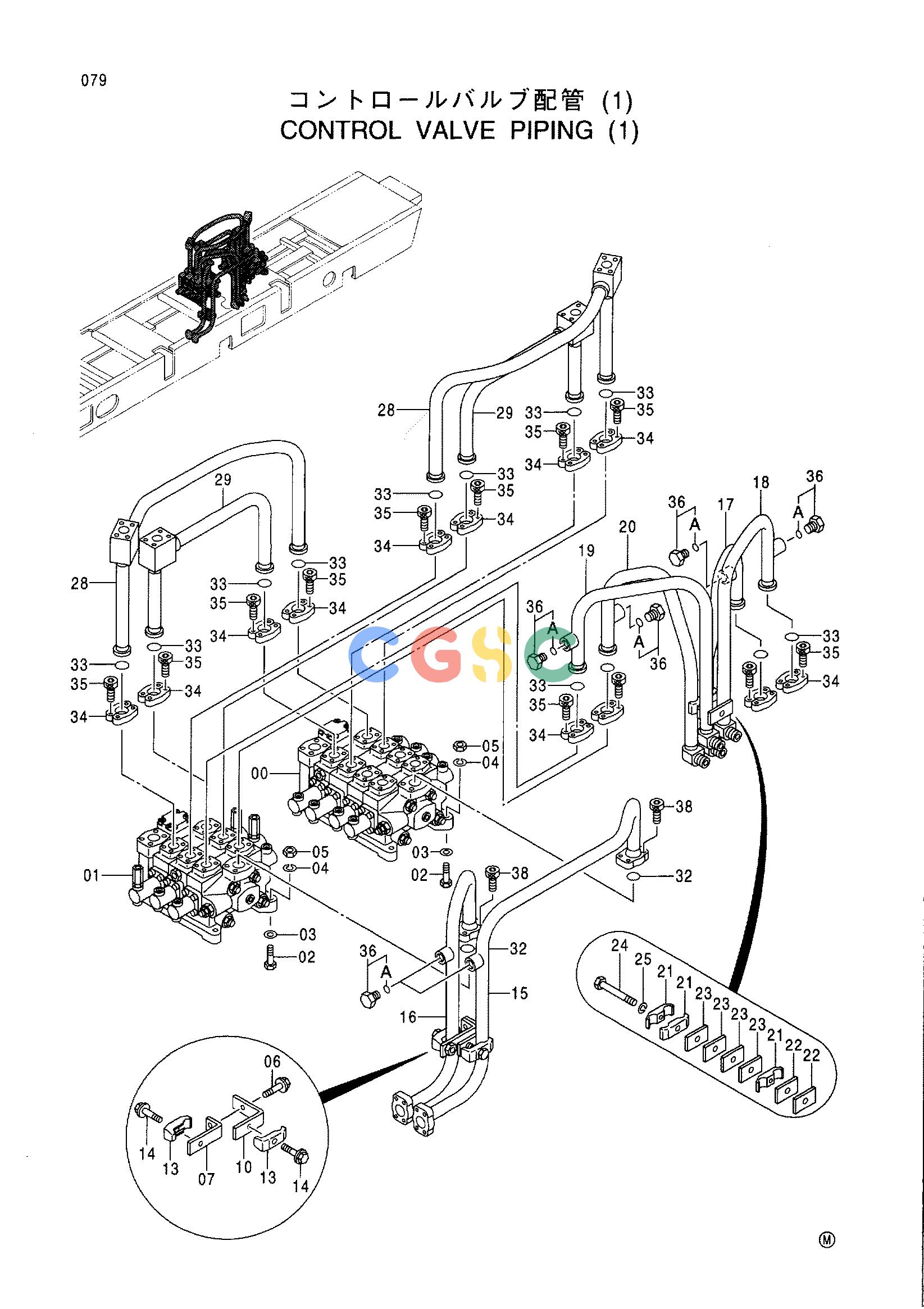

日立零件查询（CX1100）CONTROL VALVE PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
148 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4397887 | [1] | VALVE;CONTROL | |
| 01. | 4363441 | [1] | VALVE;CONTROL | |
| 02. | J901255 | [8] | BOLT | |
| 03. | A590112 | [8] | WASHER;PLANE | |
| 04. | A590912 | [8] | WASHER;SPRING | |
| 05. | J950012 | [8] | NUT | |
| 06. | J011240 | [1] | BOLT;SEMS | |
| 07. | 4404196 | [1] | BRACKET | |
| 10. | 4372427 | [1] | BRACKET | |
| 13. | 4190127 | [2] | CLAMP;PIPE | |
| 14. | J011265 | [2] | BOLT;SEMS | |
| 15. | 8071252 | [1] | PIPE | |
| 16. | 8071253 | [1] | PIPE | |
| 17. | 8072620 | [1] | PIPE | |
| 18. | 8072621 | [1] | PIPE | |
| 19. | 8072622 | [1] | PIPE | |
| 20. | 8072623 | [1] | PIPE | |
| 21. | 4189860 | [3] | CLAMP;PIPE | |
| 22. | 4177674 | [2] | SHIM 4.5 | |
| 23. | 4177673 | [4] | SHIM 2.3 | |
| 24. | J901206 | [1] | BOLT | |
| 25. | A590912 | [1] | WASHER;SPRING | |
| 28. | 8072618 | [2] | PIPE | |
| 29. | 8072619 | [2] | PIPE | |
| 32. | A811040 | [2] | O-RING | |
| 33. | 966993 | [12] | O-RING | |
| 34. | 962453 | [24] | FLANGE;SPLIT | |
| 35. | M341030 | [48] | BOLT;SOCKET | |
| 36. | 4092534 | [6] | PLUG | |
| 36A. | 4509180 | [1] | O-RING | |
| 38. | M341245 | [8] | BOLT;SOCKET | |
