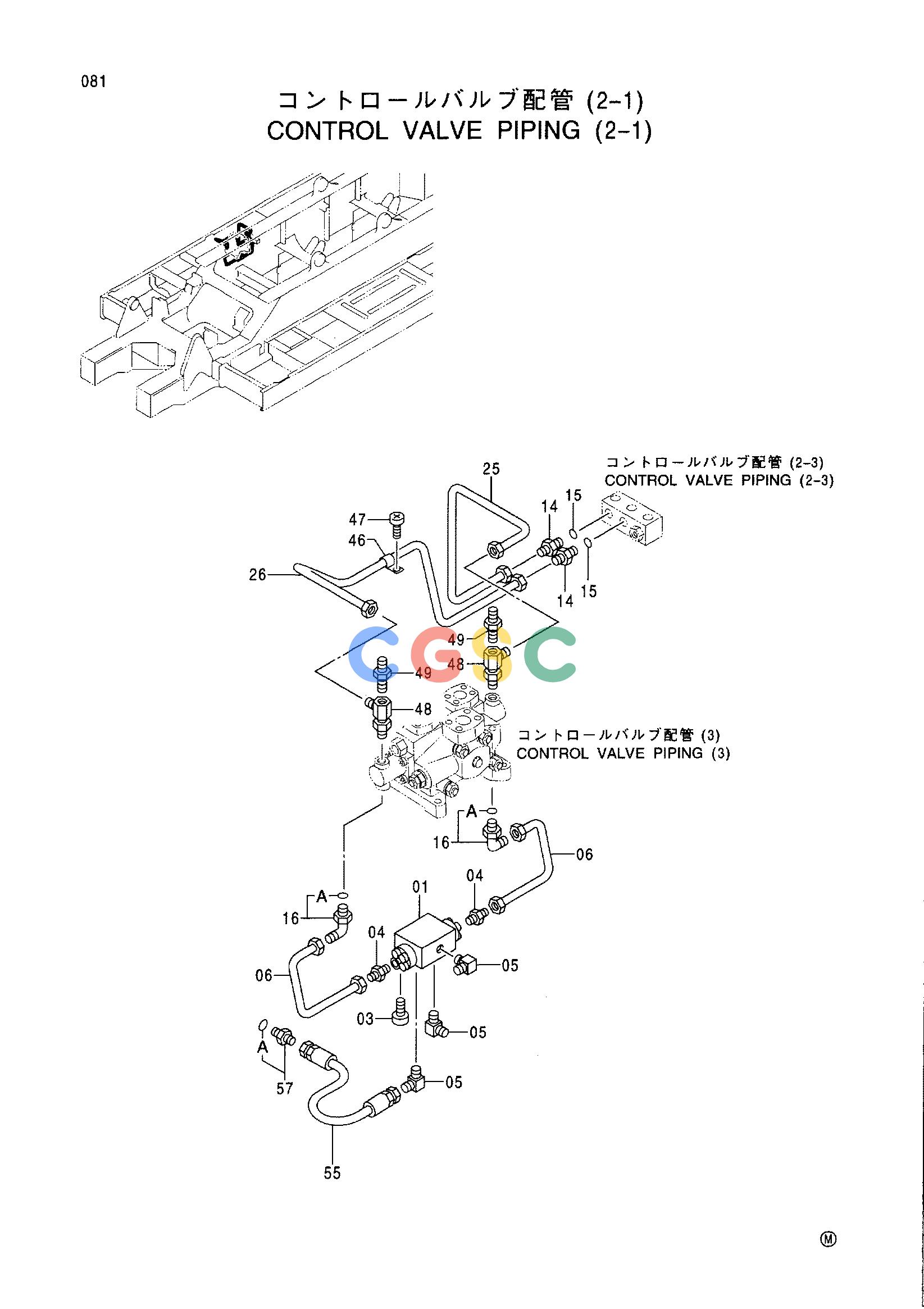

日立零件查询（CX1100）CONTROL VALVE PIPING (2-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
397 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4055358 | [1] | VALVE;SHUTTLE | |
| 03. | M340865 | [4] | BOLT;SOCKET | |
| 04. | 4130170 | [2] | FITTING;PIPE | |
| 05. | 4154657 | [3] | ELBOW;S | |
| 06. | 4343256 | [2] | PIPE | |
| 14. | 4317623 | [2] | FITTING;PIPE | |
| 15. | 964255 | [2] | O-RING | |
| 16. | 4317622 | [2] | FITTING;PIPE | |
| 16A. | 957366 | [1] | O-RING | |
| 25. | 3079405 | [1] | PIPE | |
| 26. | 3079406 | [1] | PIPE | |
| 46. | 4000855 | [1] | CLIP;PIPE | |
| 47. | M430610 | [1] | SCREW | |
| 48. | 4350029 | [2] | FITTING;PIPE | |
| 49. | 4346128 | [2] | FITTING | |
| 55. | 4313338 | [1] | HOSE | |
| 57. | 4200469 | [1] | ADAPTER;S | |
| 57A. | 4506418 | [1] | O-RING | |
