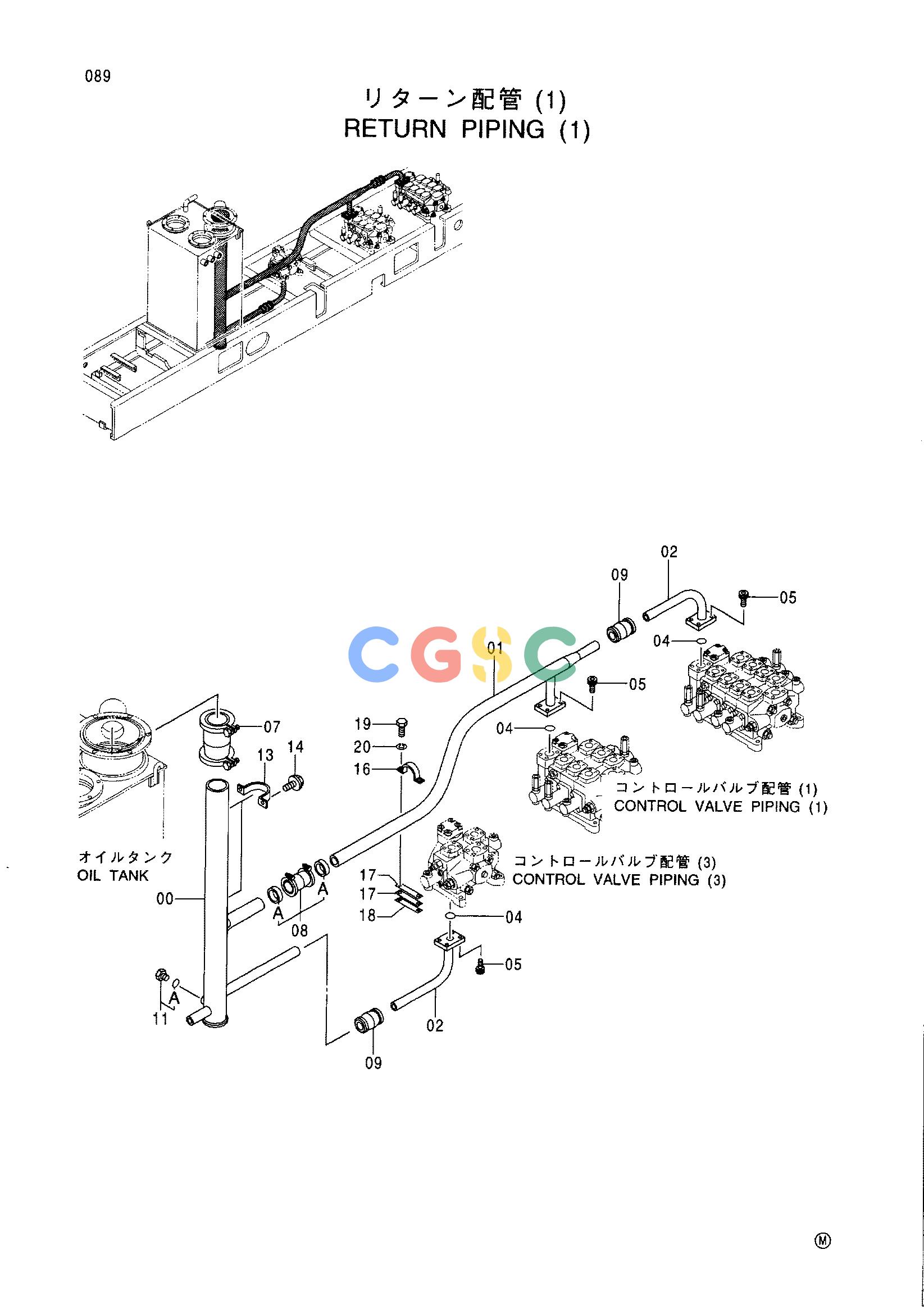

日立零件查询（CX1100）RETURN PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
403 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 8065584 | [1] | PIPE | |
| 01. | 8065585 | [1] | PIPE | |
| 02. | 9746356 | [2] | PIPE | |
| 04. | A811040 | [3] | O-RING | |
| 05. | M341236 | [12] | BOLT;SOCKET | |
| 07. | 4071214 | [1] | COUPLING | |
| 08. | 4067833 | [1] | COUPLING | |
| 08A. | 4196261 | [2] | SEAL | |
| 09. | 4069801 | [2] | COUPLING | |
| 11. | 4174542 | [2] | PLUG | |
| 11A. | 4506424 | [1] | O-RING | |
| 13. | 4000910 | [2] | CLAMP;PIPE | |
| 14. | J011025 | [4] | BOLT;SEMS | |
| 16. | 4053865 | [1] | CLAMP;PIPE | |
| 17. | 4177671 | [2] | SHIM 2.3 | |
| 18. | 4177672 | [1] | SHIM 4.5 | |
| 19. | J901030 | [2] | BOLT | |
| 20. | A590910 | [2] | WASHER;SPRING | |
