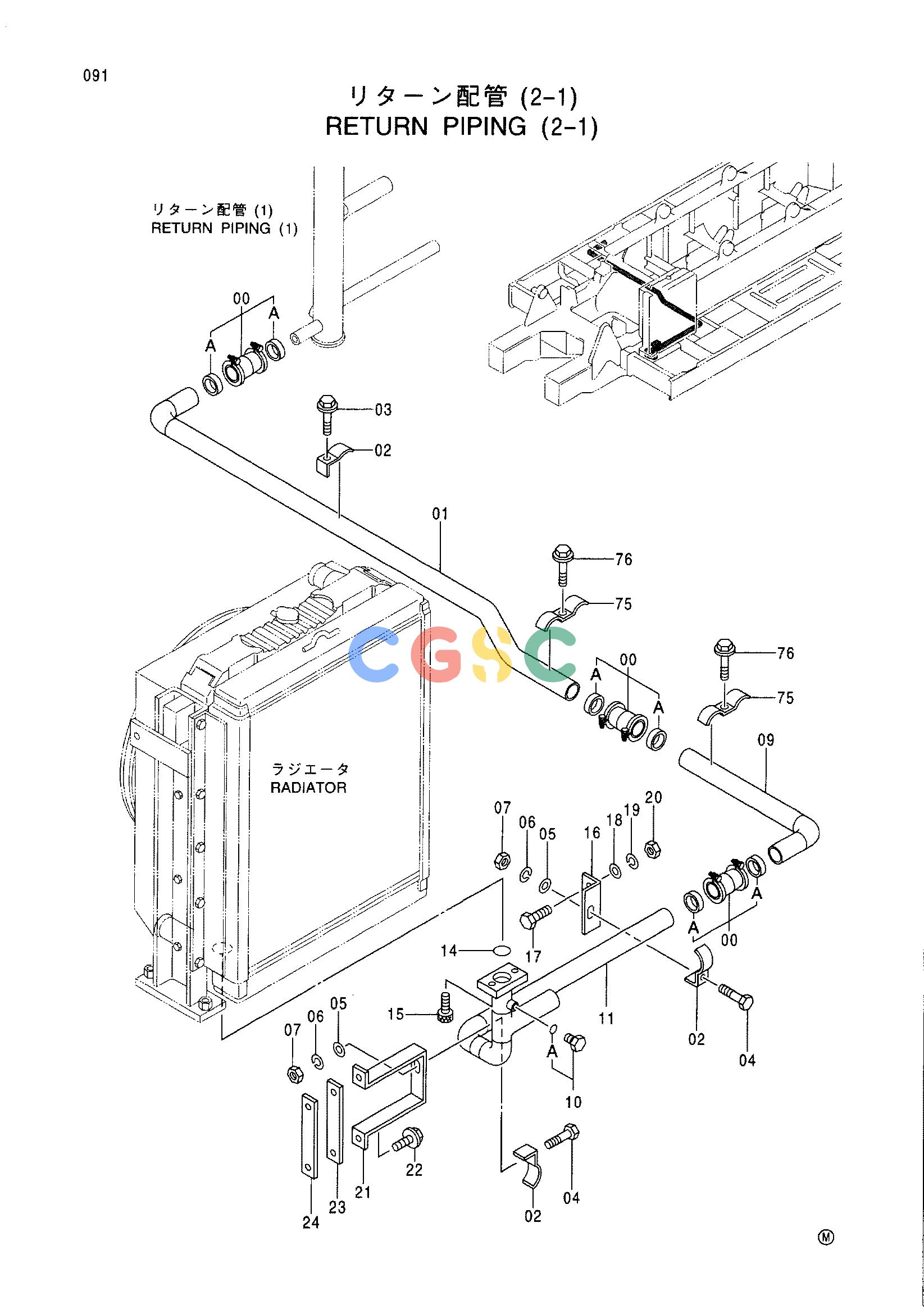

日立零件查询（CX1100）RETURN PIPING (2-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
781 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4067834 | [3] | COUPLING | |
| 00A. | 4196260 | [2] | SEAL | |
| 01. | 8080802 | [1] | PIPE | |
| 02. | 4053697 | [3] | CLAMP;PIPE | |
| 03. | J011265 | [1] | BOLT;SEMS | |
| 04. | J901275 | [2] | BOLT | |
| 05. | A590112 | [2] | WASHER;PLANE | |
| 06. | A590912 | [2] | WASHER;SPRING | |
| 07. | J950012 | [2] | NUT | |
| 09. | 9755085 | [1] | PIPE | |
| 10. | 4092534 | [1] | PLUG | |
| 10A. | 4509180 | [1] | O-RING | |
| 11. | 8071806 | [1] | PIPE | |
| 14. | A811050 | [1] | O-RING | |
| 15. | M341236 | [2] | BOLT;SOCKET | |
| 16. | 4275206 | [1] | BRACKET | |
| 17. | J901030 | [2] | BOLT | |
| 18. | A590110 | [2] | WASHER;PLANE | |
| 19. | A590910 | [2] | WASHER;SPRING | |
| 20. | J950010 | [2] | NUT | |
| 21. | 4266091 | [1] | BRACKET | |
| 22. | J011225 | [2] | BOLT;SEMS | |
| 23. | 4278895 | [2] | SHIM 4.5 | |
| 24. | 4278896 | [1] | SHIM 2.3 | |
| 75. | 4031909 | [2] | CLAMP | |
| 76. | J011265 | [2] | BOLT;SEMS | |
