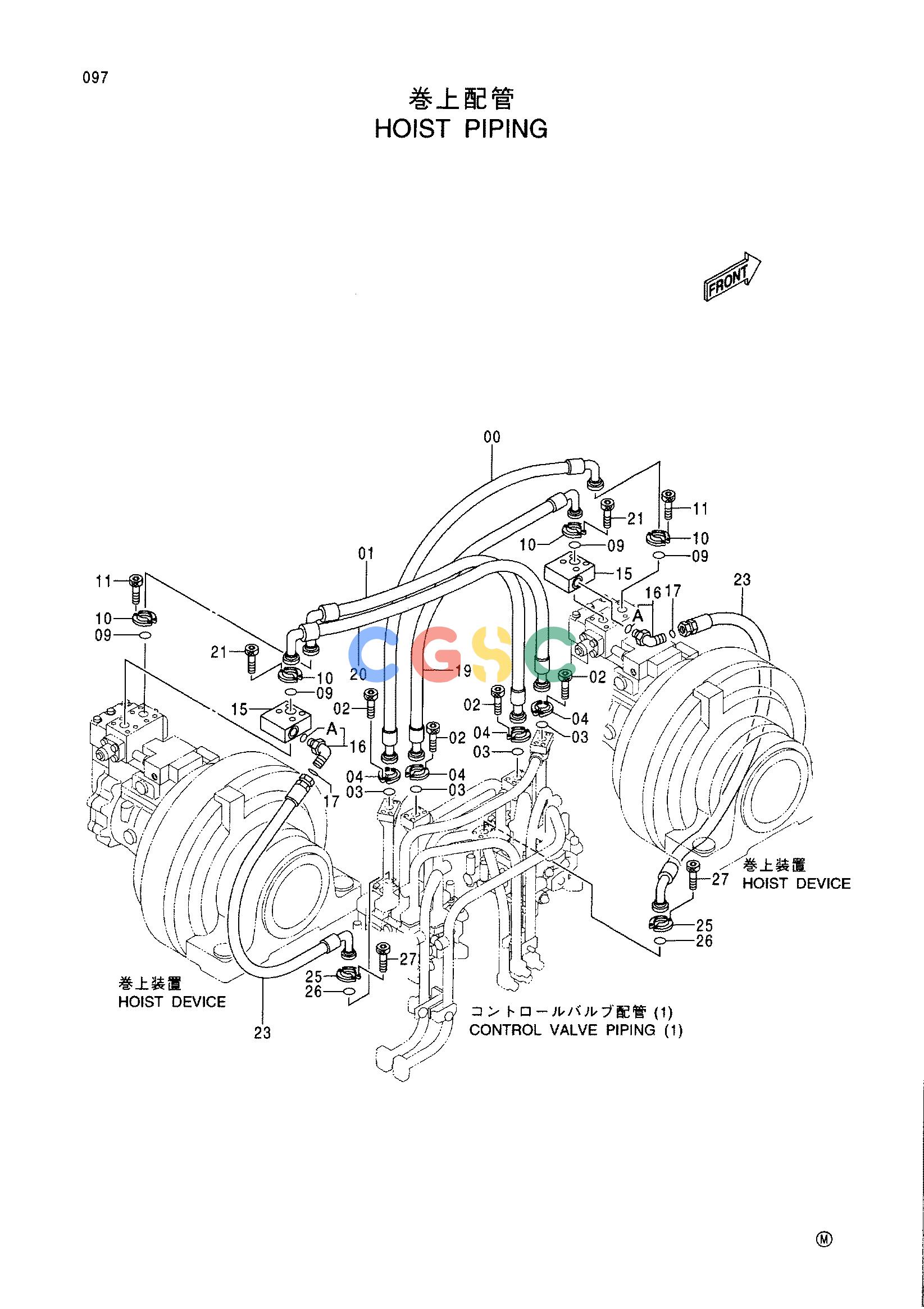

日立零件查询（CX1100）HOIST PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1020 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4374497 | [1] | HOSE | |
| 01. | 4374498 | [1] | HOSE | |
| 02. | M341032 | [16] | BOLT;SOCKET | |
| 03. | 966993 | [4] | O-RING | |
| 04. | 962453 | [8] | FLANGE;SPLIT | |
| 09. | 4508805 | [4] | O-RING | |
| 10. | 4075853 | [8] | FLANGE;SPLIT | |
| 11. | M341240 | [8] | BOLT;SOCKET | |
| 15. | 4343746 | [2] | VALVE;CHECK | |
| 16. | 4198799 | [2] | ELBOW;S | |
| 16A. | 4506429 | [1] | O-RING | |
| 17. | 4187328 | [2] | O-RING | |
| 19. | 4386560 | [1] | HOSE | |
| 20. | 4386561 | [1] | HOSE | |
| 21. | M341290 | [8] | BOLT;SOCKET | |
| 23. | 4388823 | [2] | HOSE | |
| 25. | 4154614 | [4] | FLANGE;SPLIT | |
| 26. | 4508805 | [2] | O-RING | |
| 27. | M341230 | [8] | BOLT;SOCKET | |
