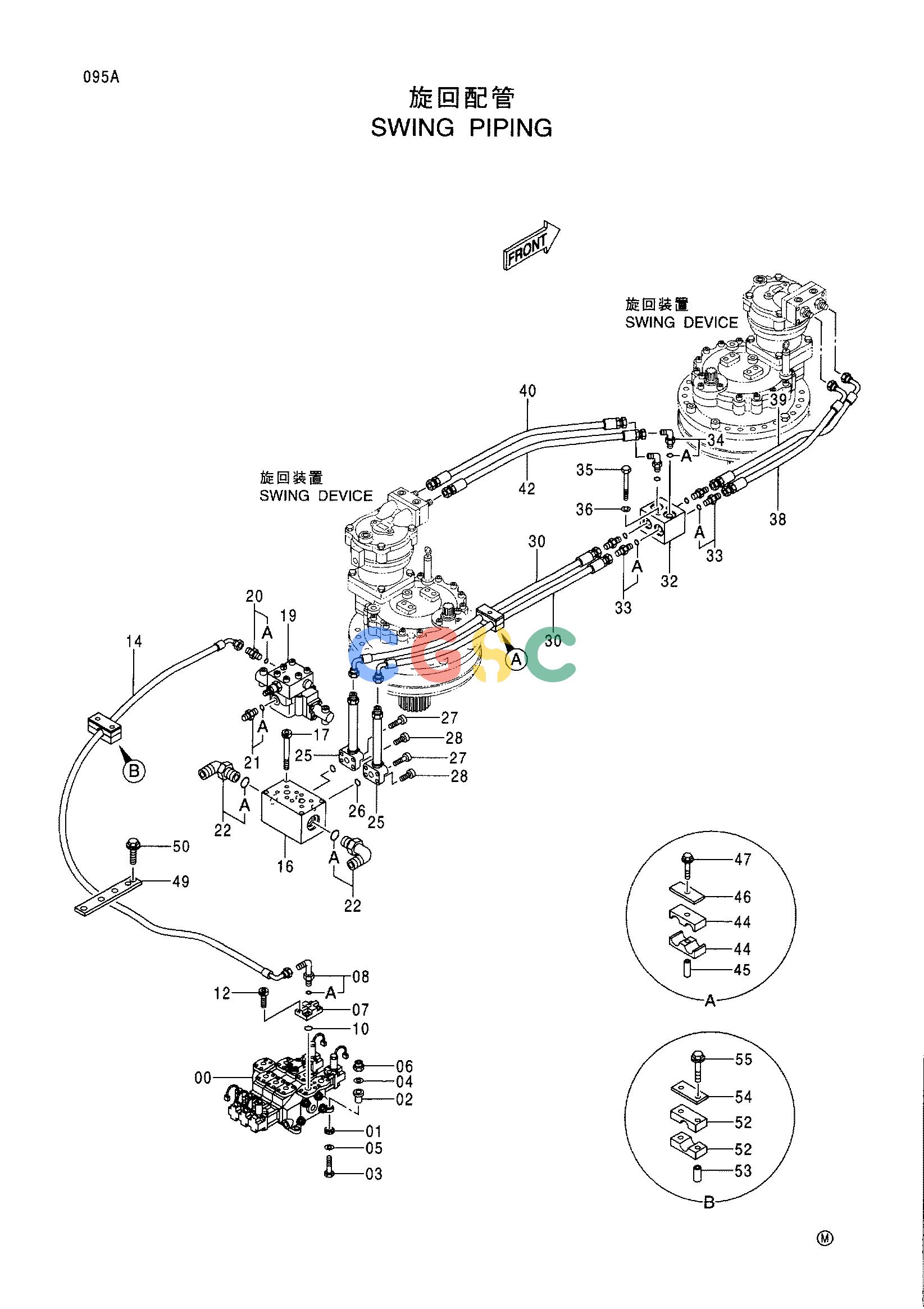

日立零件查询（CX1100）SWING PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
520 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4389837 | [1] | VALVE;CONTROL | |
| 01. | 4172243 | [4] | RUBBER | |
| 02. | 4172242 | [4] | BUSHING;RUBBER | |
| 03. | J901060 | [4] | BOLT | |
| 04. | A590110 | [4] | WASHER;PLANE | |
| 05. | J217083 | [4] | WASHER | |
| 06. | M660010 | [4] | NUT;U | |
| 07. | 3082858 | [1] | BLOCK | |
| 08. | 4173024 | [1] | ELBOW;S | |
| 08A. | 4506429 | [1] | O-RING | |
| 10. | A811040 | [1] | O-RING | |
| 12. | M341236 | [4] | BOLT;SOCKET | |
| 14. | 4403990 | [1] | HOSE | |
| 16. | 3082627 | [1] | BLOCK | |
| 17. | M341203 | [4] | BOLT;SOCKET | |
| 19. | 4400530 | [1] | VALVE;CONTROL | |
| 20. | 4139973 | [1] | ADAPTER;S | |
| 20A. | 4506424 | [1] | O-RING | |
| 21. | 4042033 | [1] | ADAPTER | |
| 21A. | 4506424 | [1] | O-RING | |
| 22. | 4266144 | [2] | ELBOW;S | |
| 22A. | 4506428 | [1] | O-RING | |
| 25. | 8072561 | [2] | PIPE | |
| 26. | A811035 | [2] | O-RING | |
| 27. | M341260 | [4] | BOLT;SOCKET | |
| 28. | M341245 | [4] | BOLT;SOCKET | |
| 30. | 4440043 | [2] | HOSE | |
| 32. | 3075721 | [1] | BLOCK | |
| 33. | 4042034 | [4] | ADAPTER | |
| 33A. | 4506429 | [1] | O-RING | |
| 34. | 4102104 | [2] | ELBOW;S | |
| 34A. | 4506429 | [1] | O-RING | |
| 35. | J901202 | [2] | BOLT | |
| 36. | A590912 | [2] | WASHER;SPRING | |
| 38. | 4368793 | [1] | HOSE | |
| 39. | 4368791 | [1] | HOSE | |
| 40. | 4153435 | [1] | HOSE | |
| 42. | 4158177 | [1] | HOSE | |
| 44. | 4205615 | [2] | CLAMP;HOSE | |
| 45. | 4205614 | [1] | SPACER | |
| 46. | 4224002 | [1] | PLATE | |
| 47. | J011290 | [1] | BOLT;SEMS | |
| 49. | 4403045 | [1] | PLATE | |
| 50. | J011235 | [2] | BOLT;SEMS | |
| 52. | 4341808 | [2] | CLAMP;HOSE | |
| 53. | 4205614 | [2] | SPACER | |
| 54. | 4341803 | [1] | PLATE | |
| 55. | J011290 | [2] | BOLT;SEMS | |
