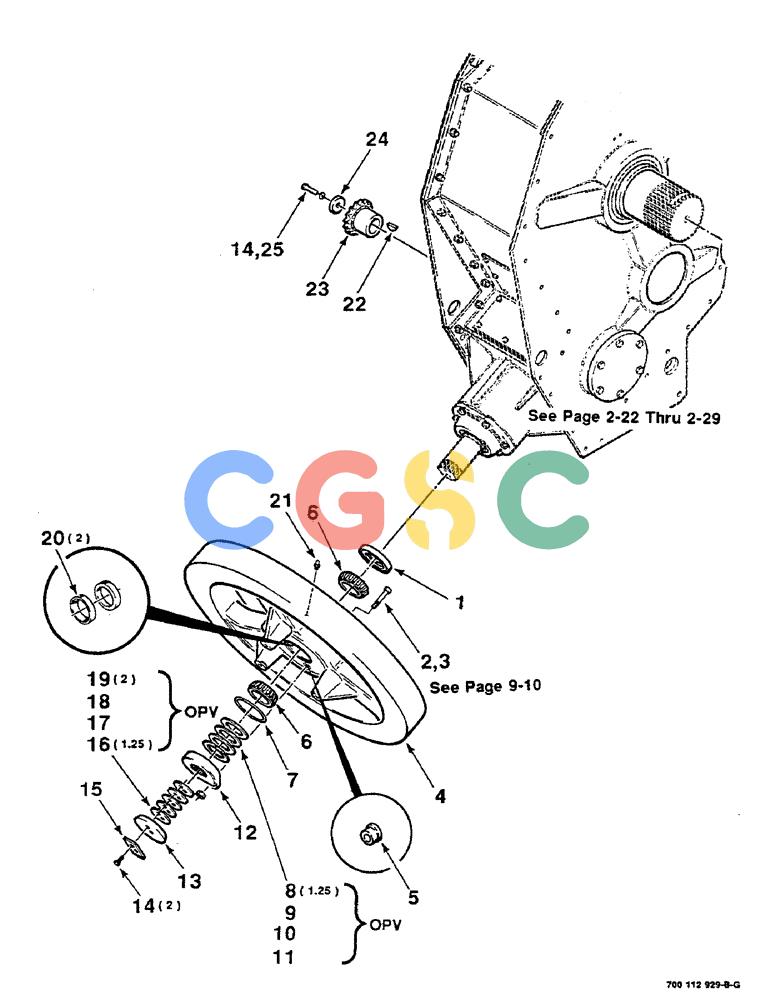

凯斯零件查询(8580) - CASE IH LARGE RECTANGULAR BALER (1/88-12/98) (02-14) - FLYWHEEL ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700706045
|
[1] |
SEAL
|
CAS
|
| 2. |
7884950
|
[1] |
BOLT
|
CAS
- shear
|
| 3. |
429-107
|
[1] |
NUT,7/16"-14, G8
|
CAS
|
| 4. |
700152213
|
[1] |
BALER FLYWHEEL
|
HFI
FLYWHEEL
|
| 5. |
7852718
|
[1] |
SLEEVE
|
CAS
- shear Superseded by part number: 196727
|
| 6. |
78848C91
|
[2] |
BEARING ASSY,61.98mm ID x 24.61mm W
|
IH
- cone
|
| 7. |
700706050
|
[1] |
O-RING
|
CAS
|
| 8. |
700706056
|
[1.25] |
SHIM
|
CAS
0.08/.003
|
| 9. |
700706057
|
[1] |
SHIM
|
CAS
0.13/.005
|
| 10. |
700706058
|
[1] |
SHIM
|
CAS
0.25/0.10
|
| 11. |
700707991
|
[1] |
SHIM,63.5mm ID x 95mm OD x 0.51mm Thk
|
CAS
0.51/.020
|
| 12. |
700113038
|
[1] |
HUB
|
CAS
- shear
|
| 13. |
700113044
|
[1] |
RETAINING PLATE
|
CAS
CAP - retainer
|
| 14. |
628-16040
|
[3] |
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
|
CAS
|
| 15. |
700113045
|
[1] |
LOCKING PLATE
|
CAS
TAB - lock
|
| 16. |
700706059
|
[1.25] |
SHIM
|
CAS
0.08/.003
|
| 17. |
700706060
|
[1] |
SHIM
|
CAS
0.13/.005
|
| 18. |
700706061
|
[1] |
SHIM
|
CAS
0.25/0.10
|
| 19. |
700707993
|
[2] |
SHIM
|
CAS
|
| 20. |
610513C1
|
[2] |
BEARING CUP,101.6mm OD x 19.84mm W
|
IH
BEARING - cup
|
| 21. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 22. |
126-40
|
[1] |
WOODRUFF KEY,#G, 3/8" x 1 1/2"
|
CAS
|
| 23. |
700112923
|
[1] |
SPROCKET
|
CAS
WA
|
| 24. |
6526586
|
[1] |
WASHER
|
CAS
WASHER - special
|
| 25. |
892-11016
|
[1] |
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
|
CAS
WASHER, LOCK, M16 Superseded by part number: 87016618
|
