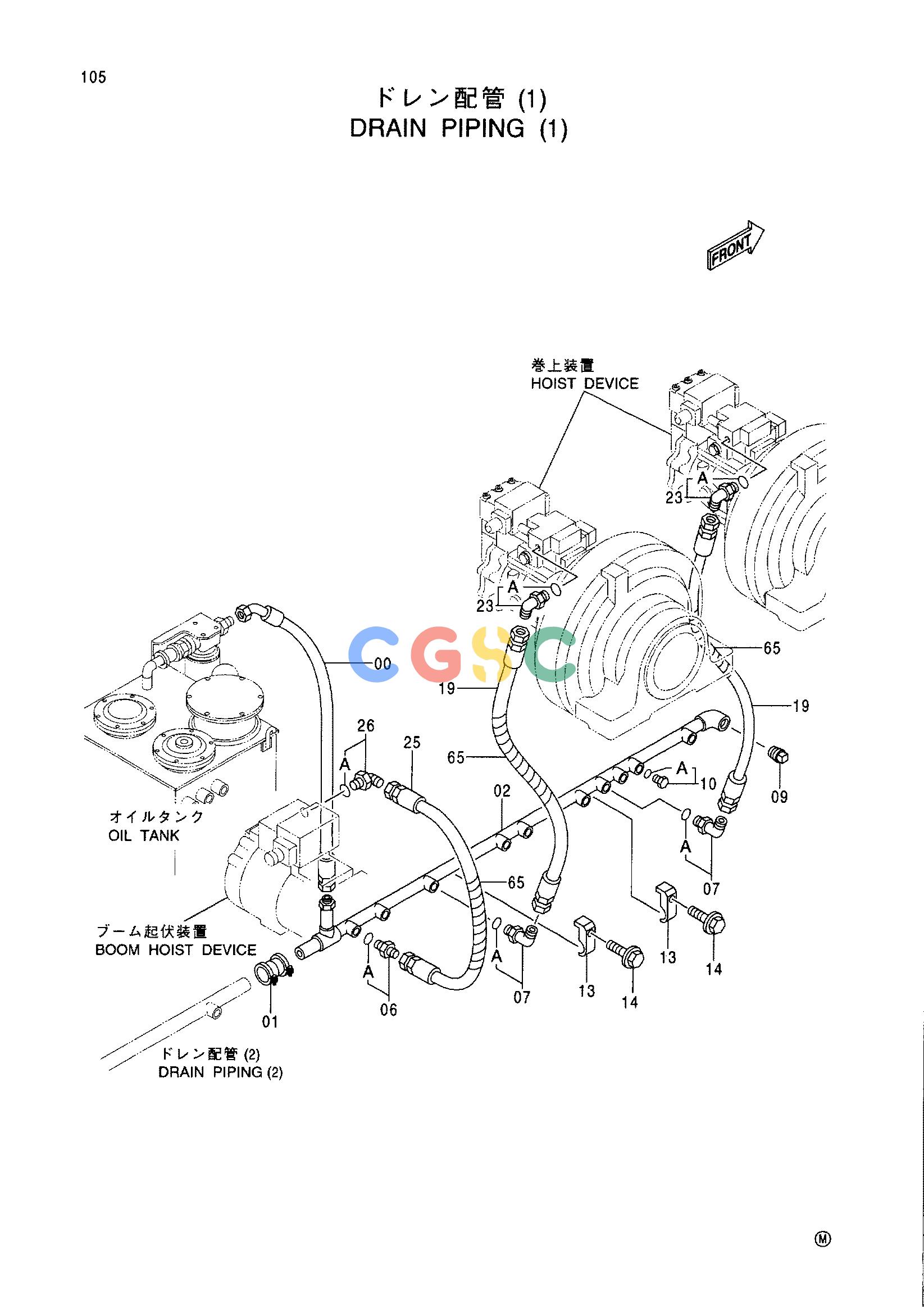

日立零件查询（CX1100）DRAIN PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
868 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4368697 | [1] | HOSE | |
| 01. | 4071213 | [1] | COUPLING | |
| 02. | 8085347 | [1] | PIPE | |
| 06. | 4210361 | [1] | ADAPTER;S | |
| 06A. | 4506418 | [1] | O-RING | |
| 07. | 4102237 | [2] | ELBOW;S | |
| 07A. | 4506424 | [1] | O-RING | |
| 09. | 94-2026 | [1] | PLUG | |
| 10. | 4092534 | [1] | PLUG | |
| 10A. | 4509180 | [1] | O-RING | |
| 13. | 4190127 | [2] | CLAMP;PIPE | |
| 14. | J011265 | [2] | BOLT;SEMS | |
| 19. | 4157682 | [2] | HOSE | |
| 23. | 4102237 | [2] | ELBOW;S | |
| 23A. | 4506424 | [1] | O-RING | |
| 25. | 4368695 | [1] | HOSE | |
| 26. | 4353073 | [1] | ELBOW;S | |
| 26A. | 4506424 | [1] | O-RING | |
| 65. | 4044420 | [4] | PROTECTOR | |
