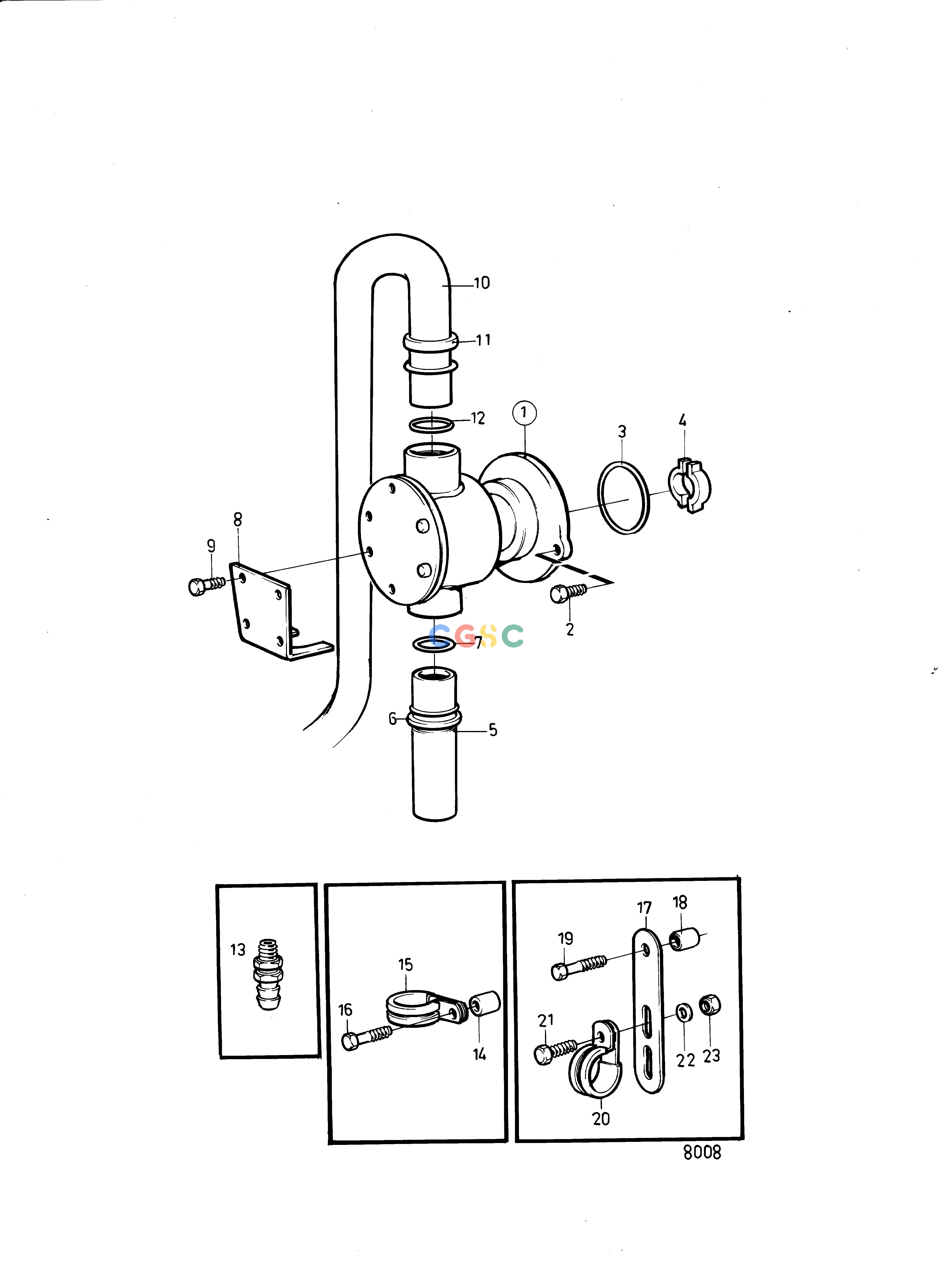

沃尔沃零件查询MD31A; TMD31A; TMD31B; TAMD31A; TAMD31B; AD31; AQAD31A; AD31B; 290A; DP-A; DP-B; DP-A1; DP-B1; SP-A; SP-A1Cooling SystemSea Water Pump and Installation Components: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858469
|
[1] |
Sea water pump
|
|
| 2. |
946173
|
[2] |
Flange screw
|
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
858467
|
[1] |
Companion flange
|
|
| 5. |
847105
|
[1] |
Pipe
|
|
| 6. |
847108
|
[1] |
Pipe retainer
|
|
| 7. |
949658
|
[1] |
O-ring
|
|
| 8. |
847107
|
[2] |
Lock brace
|
|
| 9. |
963545
|
[4] |
Hexagon screw
|
|
| 10. |
838971
|
[1] |
Coolant pipe
|
Sea water pump-oil cooler.
|
| 11. |
847108
|
[1] |
Pipe retainer
|
|
| 12. |
949658
|
[1] |
O-ring
|
|
| 13. |
949918
|
[1] |
Shut-off cock
|
|
| 14. |
846339
|
[1] |
Spacer sleeve
|
|
| 15. |
947827
|
[1] |
Clamp
|
|
| 16. |
965180
|
[1] |
Flange screw
|
|
| 17. |
965534
|
[1] |
Bracket
|
|
| 18. |
843075
|
[1] |
Spacer sleeve
|
|
| 19. |
965182
|
[1] |
Flange screw
|
|
| 20. |
952635
|
[1] |
Clamp
|
|
| 21. |
946544
|
[1] |
Flange screw
|
|
| 22. |
955892
|
[1] |
Washer
|
|
| 23. |
945407
|
[1] |
Flange nut
|
|
