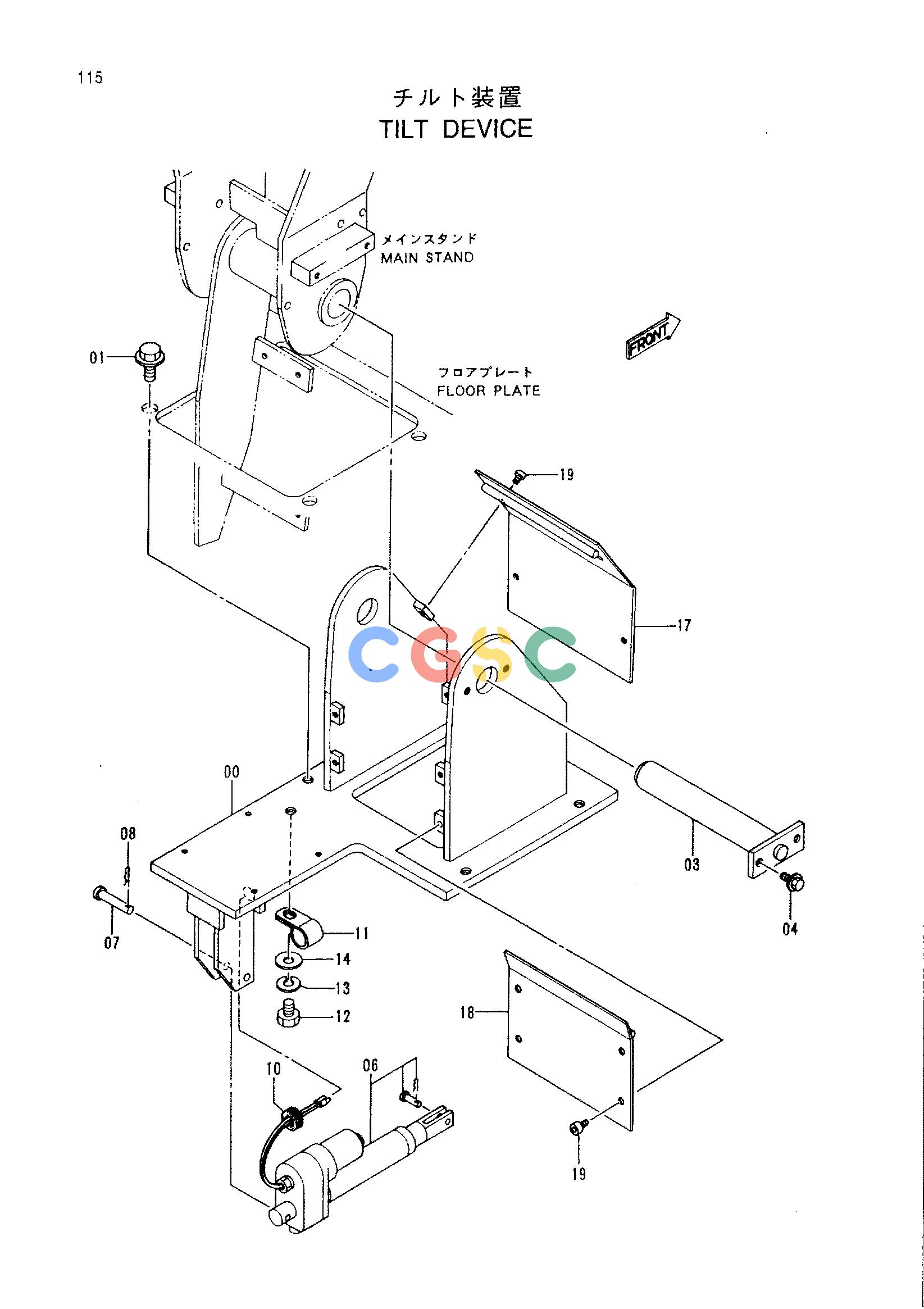

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 7029083 | [1] | BRACKET | |
| 01. | J021025 | [4] | BOLT;SEMS | |
| 03. | 9740231 | [1] | AXLE | |
| 04. | J010816 | [2] | BOLT;SEMS | |
| 06. | 4309259 | [1] | CYL.;TILT | |
| 07. | 4310226 | [1] | PIN | |
| 08. | 4022697 | [1] | PIN;LOCK | |
| 10. | 445100 | [1] | BUSHING;RUBBER | |
| 11. | 4190261 | [1] | CLIP | |
| 12. | J901014 | [1] | BOLT | |
| 13. | A590910 | [1] | WASHER;SPRING | |
| 14. | A590110 | [1] | WASHER;PLANE | |
| 17. | 9742972 | [1] | COVER | |
| 18. | 9742973 | [1] | COVER | |
| 19. | M340610 | [8] | BOLT;SOCKET |
