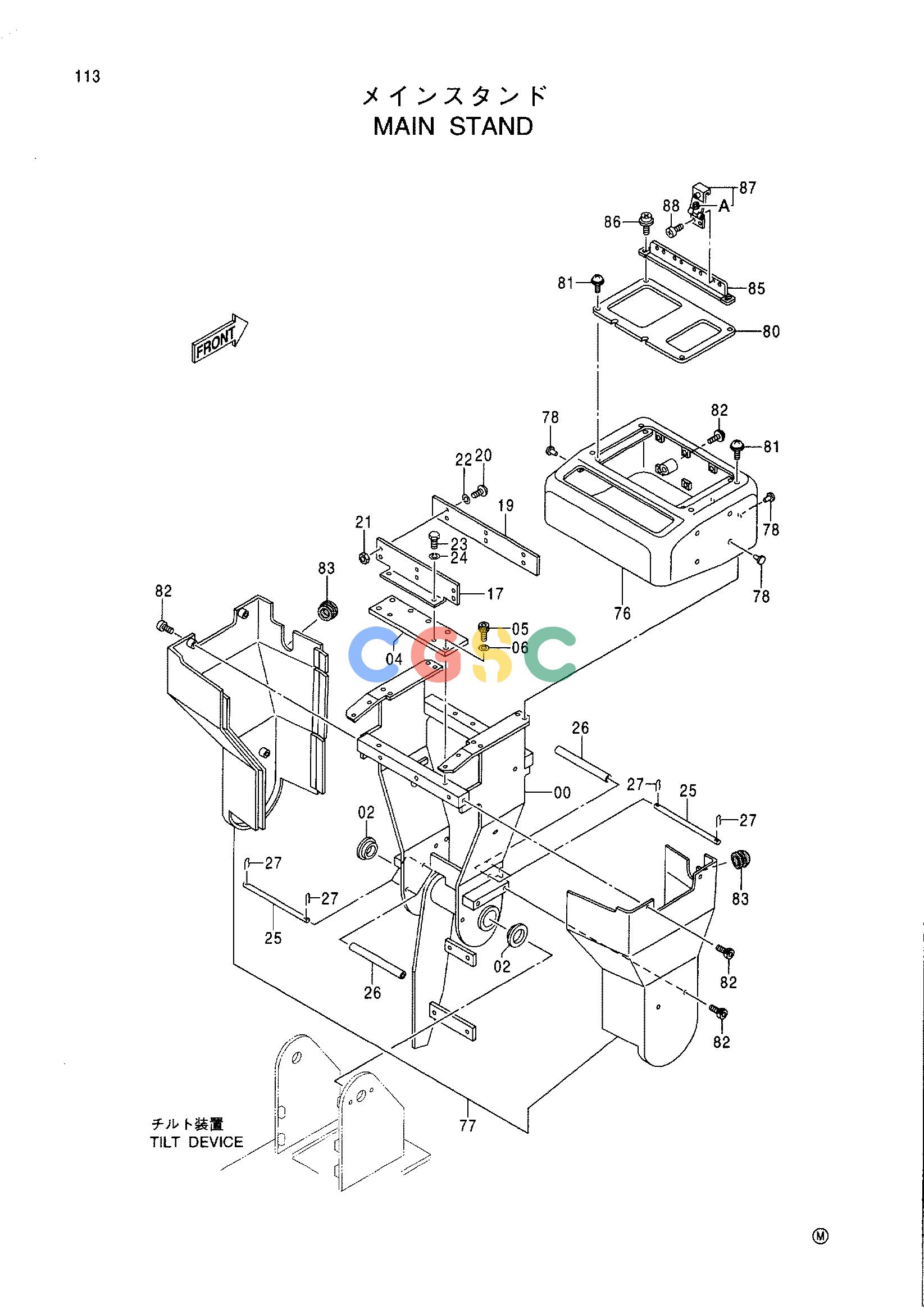

日立零件查询（CX1100）MAIN STAND Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6014065 | [1] | STAND | |
| 02. | 4310199 | [2] | BUSHING | |
| 04. | 4339550 | [1] | SEAT;SCREW | |
| 05. | M341020 | [2] | BOLT;SOCKET | |
| 06. | A590110 | [2] | WASHER;PLANE | |
| 17. | 4339575 | [1] | BRACKET | |
| 19. | 4339551 | [1] | PACKING | |
| 20. | M430410 | [6] | SCREW | |
| 21. | M500403 | [6] | NUT | |
| 22. | A590904 | [6] | WASHER;SPRING | |
| 23. | J900612 | [2] | BOLT | |
| 24. | A590906 | [2] | WASHER;SPRING | |
| 25. | 4310208 | [4] | PIN | |
| 26. | 4310209 | [4] | PIPE | |
| 27. | 4022696 | [8] | PIN;LOCK | |
| 76. | 6014362 | [1] | COVER (T) | |
| 77. | 7029294 | [1] | COVER | |
| 78. | 4341555 | [16] | CLIP | |
| 80. | 2042879 | [1] | NAME-PLATE | |
| 81. | J680616 | [6] | SCREW;SEMS | |
| 82. | 4384218 | [10] | BOLT;SOCKET | |
| 83. | 4260175 | [2] | BUSHING;RUBBER | |
| 85. | 3084261 | [1] | BRACKET | |
| 86. | J680620 | [2] | SCREW;SEMS | |
| 87. | 8078006 | [3] | LOCK | |
| 87A. | 4434973 | [3] | BUSHING;RUBBER | |
| 88. | J660408 | [6] | SCREW | |
