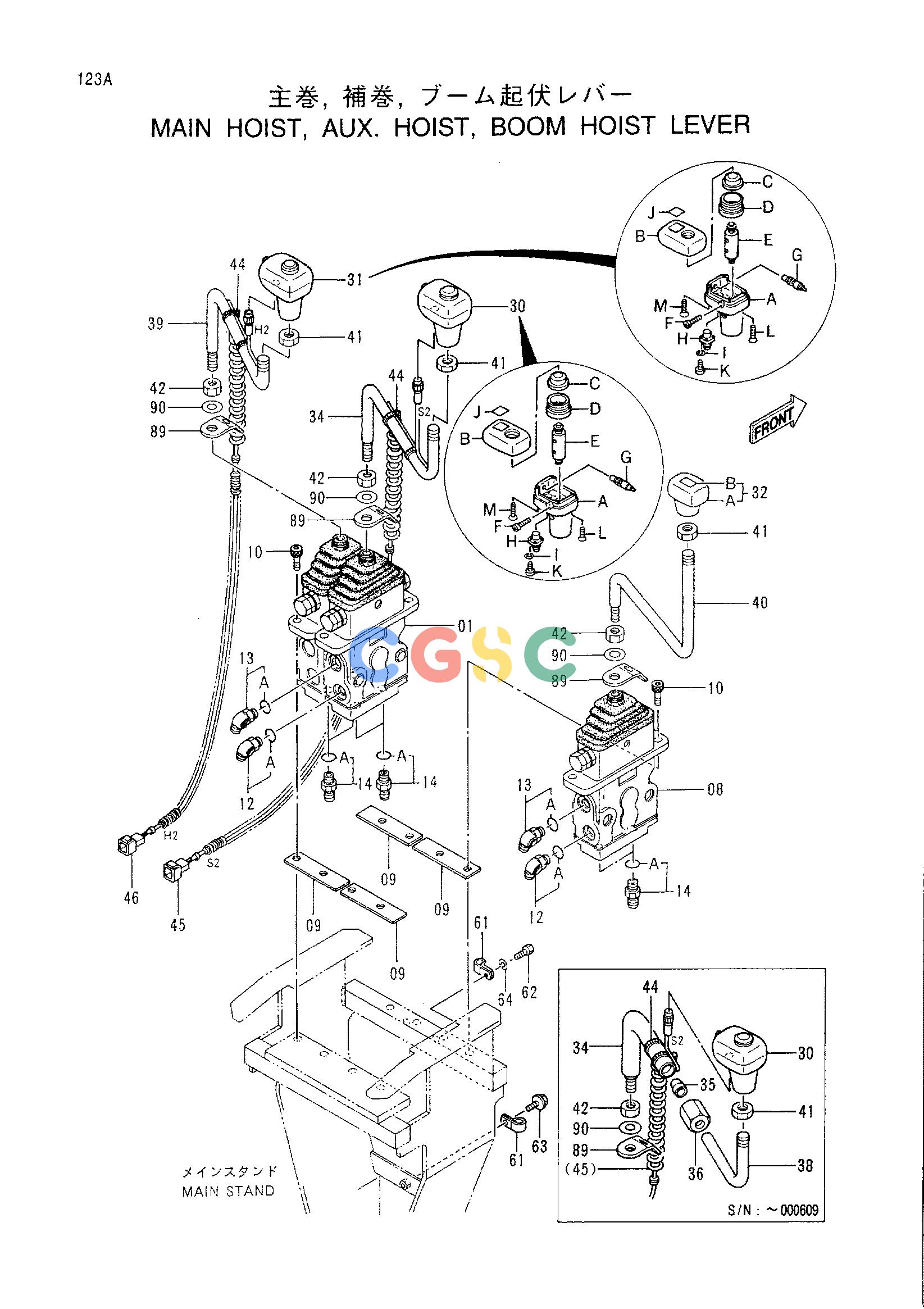

日立零件查询（CX1100）MAIN HOIST, AUX. HOIST, BOOM HOIST LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
696 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4419318 | [1] | VALVE;PILOT | |
| 08. | 4310204 | [1] | VALVE;PILOT | |
| 09. | 4310205 | [4] | PACKING | |
| 10. | M341020 | [6] | BOLT;SOCKET | |
| 12. | 4322805 | [2] | FILTER | |
| 12A. | 957366 | [1] | O-RING | |
| 13. | 4156434 | [2] | ELBOW;S | |
| 13A. | 957366 | [1] | O-RING | |
| 14. | 4200467 | [6] | ADAPTER;S | |
| 14A. | 957366 | [1] | O-RING | |
| 30. | 7028167 | [1] | GRIP ASS'Y | |
| 30A. | 2036931 | [1] | GRIP (L) | |
| 30B. | 3068167 | [1] | GRIP (U) | |
| 30C. | 4330350 | [1] | CAP | |
| 30D. | 4330695 | [1] | NUT | |
| 30E. | 4321191 | [1] | SOLENOID | |
| 30F. | M470308 | [2] | SCREW | |
| 30G. | 4323640 | [1] | SWITCH | |
| 30H. | 4323641 | [1] | CONNECTOR | |
| 30I. | J251002 | [4] | WASHER;SPRING | |
| 30J. | 4334613 | [1] | NAME-PLATE | |
| 30K. | +++++++ | [4] | SCREW;TAPPING | |
| 30L. | +++++++ | [2] | SCREW;TAPPING | |
| 30M. | +++++++ | [2] | SCREW;TAPPING | |
| 31. | 7028168 | [1] | GRIP ASS'Y | |
| 31A. | 2036931 | [1] | GRIP (L) | |
| 31B. | 3068167 | [1] | GRIP (U) | |
| 31C. | 4330350 | [1] | CAP | |
| 31D. | 4330695 | [1] | NUT | |
| 31E. | 4321191 | [1] | SOLENOID | |
| 31F. | M470308 | [2] | SCREW | |
| 31G. | 4323640 | [1] | SWITCH | |
| 31H. | 4323641 | [1] | CONNECTOR | |
| 31I. | J251002 | [4] | WASHER;SPRING | |
| 31J. | 4334639 | [1] | NAME-PLATE | |
| 31K. | +++++++ | [4] | SCREW;TAPPING | |
| 31L. | +++++++ | [2] | SCREW;TAPPING | |
| 31M. | +++++++ | [2] | SCREW;TAPPING | |
| 32. | 9742309 | [1] | GRIP | |
| 32A. | 3068261 | [1] | GRIP | |
| 32B. | 4331127 | [1] | NAME-PLATE | |
| 34. | 8076029 | [1] | LEVER | I8081441 |
| 34. | 8081441 | [1] | LEVER | |
| 35. | 4341550 | [1] | STOPPER | |
| 36. | 4335359 | [1] | LOCK | |
| 38. | 3070771 | [1] | LEVER | |
| 39. | 3085714 | [1] | LEVER | I8080573 |
| 39. | 8080573 | [1] | LEVER | |
| 40. | 3085699 | [1] | LEVER | |
| 41. | 4321193 | [3] | NUT | |
| 42. | J231212 | [3] | NUT | |
| 44. | 4044883 | [4] | CLAMP | |
| 45. | 8076042 | [1] | HARNESS;WIRE | |
| 46. | 8076043 | [1] | HARNESS;WIRE | |
| 61. | 4192018 | [2] | CLIP | |
| 62. | J901016 | [1] | BOLT | |
| 63. | J021025 | [1] | BOLT;SEMS | |
| 64. | A590910 | [1] | WASHER;SPRING | |
| 89. | 4411096 | [3] | BRACKET | |
| 90. | J250012 | [3] | WASHER;PLANE | |
