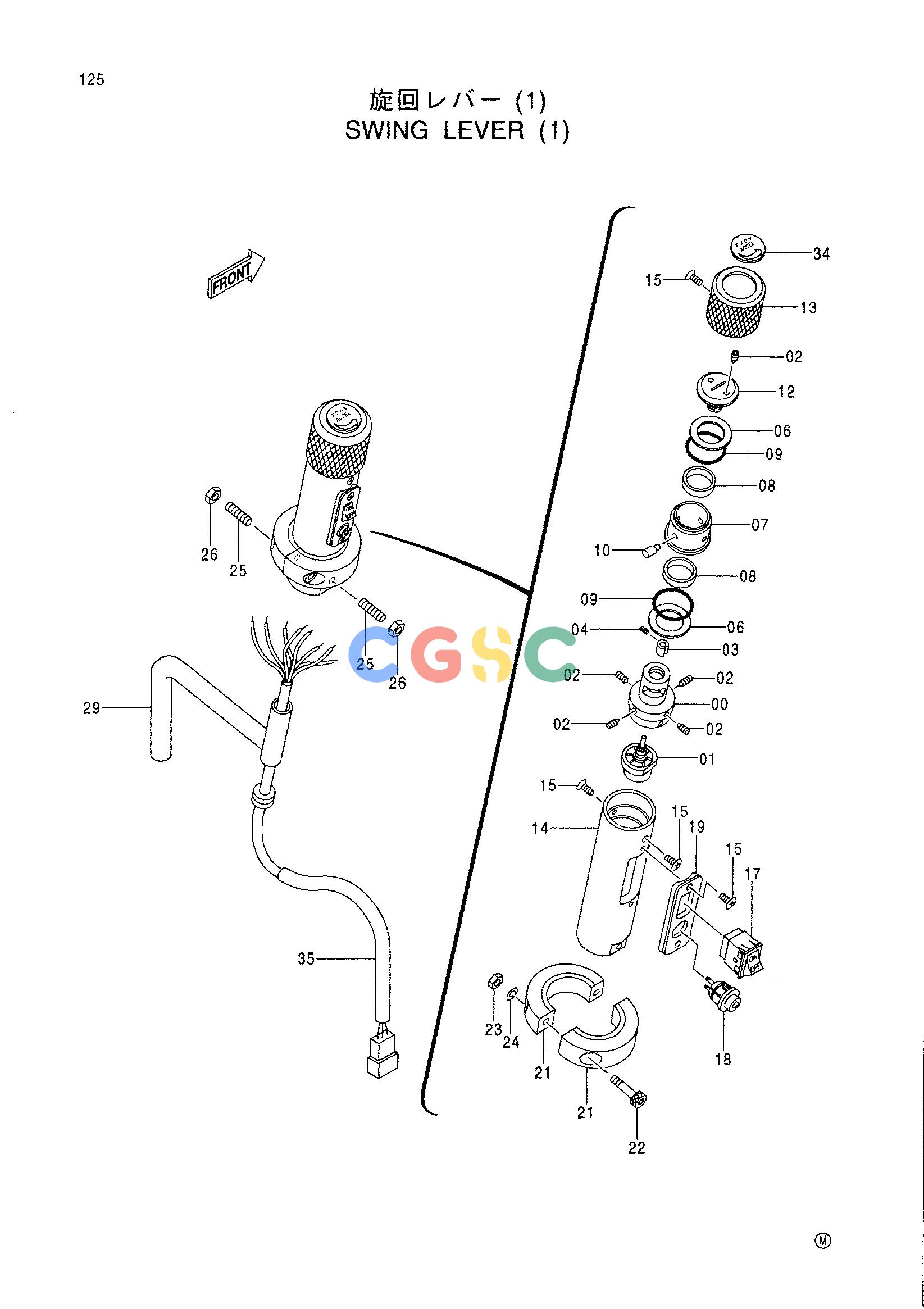

日立零件查询（CX1100）SWING LEVER (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
741 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9152249 | [1] | LEVER ASS'Y | |
| 00. | 3070578 | [1] | JOINT | |
| 01. | 4311495 | [1] | SENSOR;ANGLE | |
| 02. | M020304 | [6] | SCREW;SET | |
| 03. | 4317268 | [1] | COUPLING | |
| 04. | M020303 | [1] | SCREW;SET | |
| 06. | 4317566 | [2] | BRG.;PLANE | |
| 07. | 4334772 | [1] | GRIP | |
| 08. | 4317565 | [2] | BUSHING | |
| 09. | 4314097 | [2] | O-RING | |
| 10. | 4340961 | [1] | PIN | |
| 12. | 4317266 | [1] | CAP | |
| 13. | 4341549 | [1] | GRIP | |
| 14. | 3065464 | [1] | GRIP | |
| 15. | 4317607 | [6] | SCREW | |
| 17. | 4341546 | [1] | SWITCH | |
| 18. | 4317567 | [1] | SWITCH;PUSHBUT. | |
| 19. | 4317270 | [1] | SEAT | |
| 21. | 3070611 | [2] | REST | |
| 22. | M340536 | [2] | BOLT;SOCKET | |
| 23. | M500504 | [2] | NUT | |
| 24. | A590905 | [2] | WASHER;SPRING | |
| 25. | 4192007 | [2] | SCREW;SET | |
| 26. | M500504 | [2] | NUT | |
| 29. | 8066106 | [1] | LEVER | |
| 34. | 4341547 | [1] | NAME-PLATE | |
| 35. | 3076127 | [1] | HARNESS;WIRE | |
