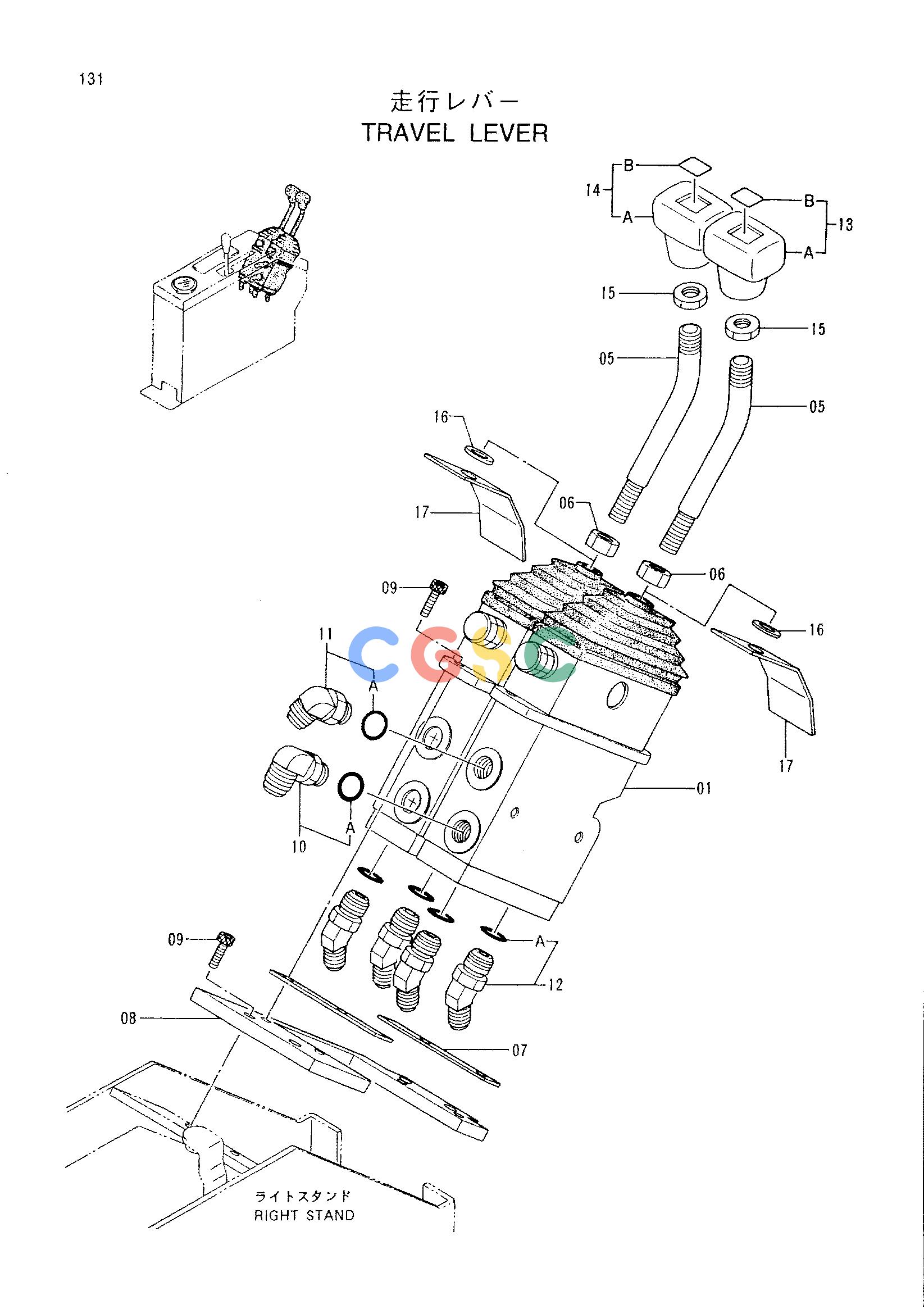

日立零件查询（CX1100）TRAVEL LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
611 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4310775 | [1] | VALVE;PILOT | |
| 05. | 4378530 | [2] | LEVER | |
| 06. | J231212 | [2] | NUT | |
| 07. | 4310205 | [2] | PACKING | |
| 08. | 4339504 | [1] | SEAT;SCREW | |
| 09. | M341022 | [8] | BOLT;SOCKET | |
| 10. | 4322805 | [1] | FILTER | |
| 10A. | 957366 | [1] | O-RING | |
| 11. | 4156434 | [1] | ELBOW;S | |
| 11A. | 957366 | [1] | O-RING | |
| 12. | 4200472 | [4] | ELBOW;S | |
| 12A. | 957366 | [1] | O-RING | |
| 13. | 9742310 | [1] | GRIP | |
| 13A. | 3068261 | [1] | GRIP | |
| 13B. | 4331128 | [1] | NAME-PLATE | |
| 14. | 9742311 | [1] | GRIP | |
| 14A. | 3068261 | [1] | GRIP | |
| 14B. | 4331129 | [1] | NAME-PLATE | |
| 15. | 4321193 | [2] | NUT | |
| 16. | J250012 | [2] | WASHER;PLANE | |
| 17. | 4377692 | [2] | BRACKET | |
