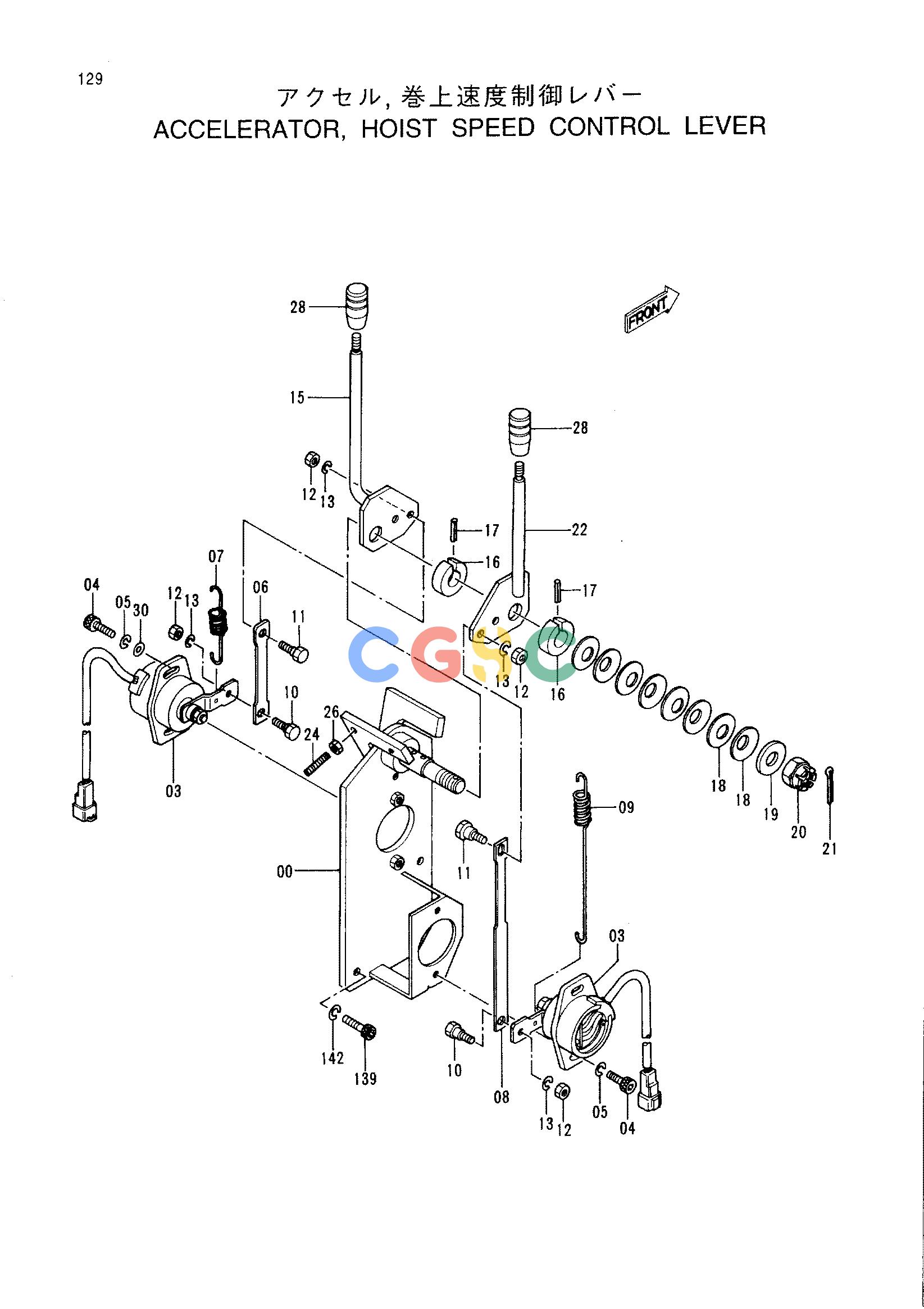

日立零件查询（CX1100）ACCELERATOR, HOIST SPEED CONTROL LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 8061021 | [1] | BRACKET | |
| 03. | 4257164 | [2] | SENSOR;ANGLE | |
| 04. | M340618 | [4] | BOLT;SOCKET | |
| 05. | A590906 | [4] | WASHER;SPRING | |
| 06. | 4254025 | [1] | LINK | |
| 07. | 4271909 | [1] | SPRING | |
| 08. | 4311148 | [1] | LINK | |
| 09. | 4308791 | [1] | SPRING | |
| 10. | 4254023 | [2] | PIN | |
| 11. | 4309805 | [2] | PIN | |
| 12. | M500605 | [4] | NUT | |
| 13. | A590906 | [4] | WASHER;SPRING | |
| 15. | 9740353 | [1] | LEVER | |
| 16. | 4311198 | [2] | SPACER | |
| 17. | 4070330 | [2] | PIN;SPRING | |
| 18. | 4186797 | [8] | SPRING;DISK | |
| 19. | A590112 | [1] | WASHER;PLANE | |
| 20. | M631215 | [1] | NUT;CASTLE | |
| 21. | A763025 | [1] | PIN;SPLIT | |
| 22. | 9740352 | [1] | LEVER | |
| 24. | M000630 | [2] | SCREW;SET | |
| 26. | M500605 | [2] | NUT | |
| 28. | 4216879 | [2] | GRIP | |
| 30. | A590106 | [4] | WASHER;PLANE | |
| 139. | M340820 | [3] | BOLT;SOCKET | |
| 142. | A590908 | [3] | WASHER;SPRING | |
