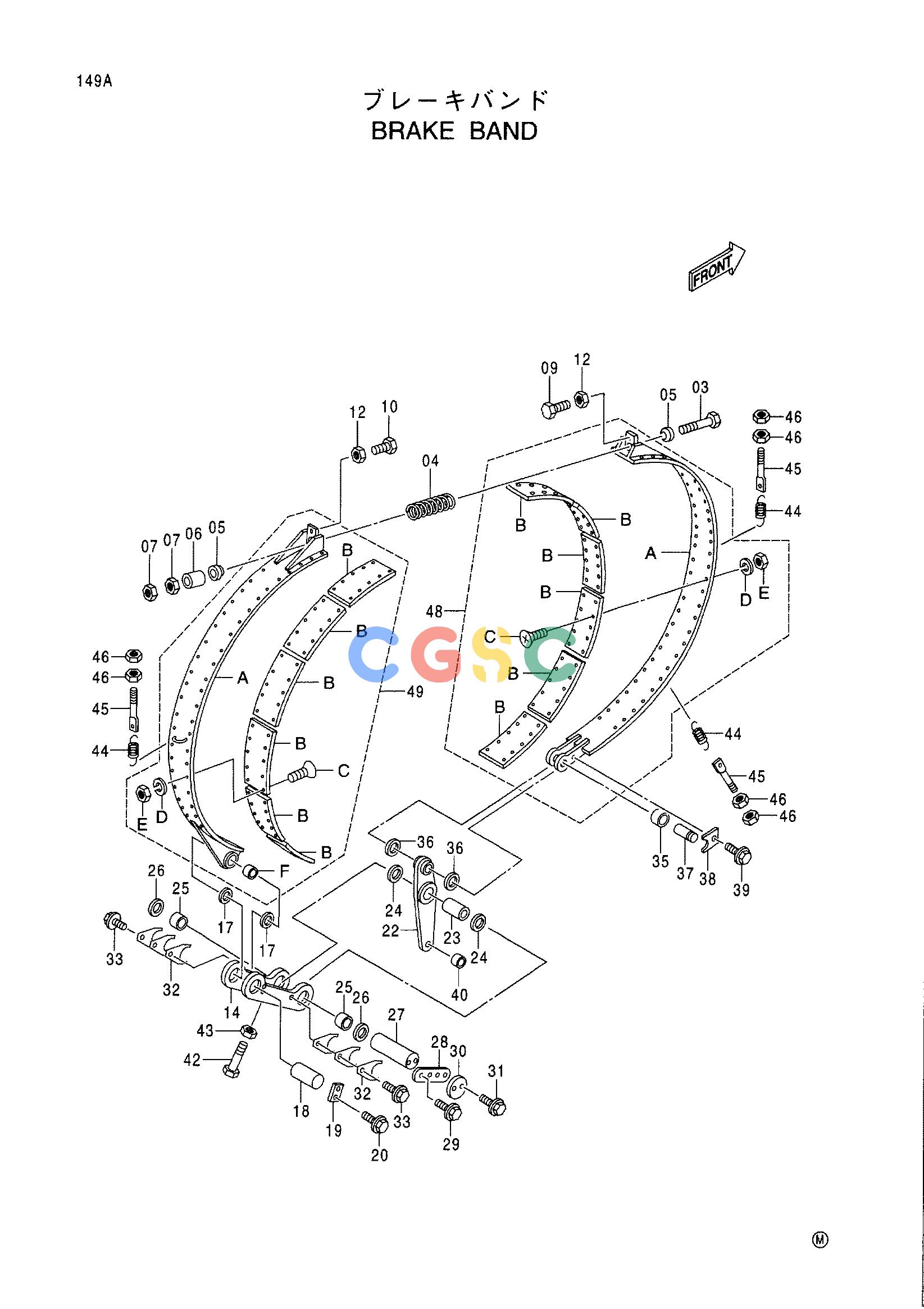

日立零件查询（CX1100）BRAKE BAND Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | BRAKE BAND ASS'Y | |
| 03. | 4024203 | [1] | BOLT | |
| 04. | 49092 | [1] | SPRING | |
| 05. | 45248 | [2] | WASHER | |
| 06. | 456472 | [1] | SPACER | |
| 07. | J953039 | [2] | NUT | |
| 09. | 4333202 | [1] | BOLT | |
| 10. | 4160753 | [1] | BOLT | |
| 12. | J951024 | [2] | NUT | |
| 14. | 8067427 | [1] | LINK | |
| 17. | 4371954 | [2] | SPACER | |
| 18. | 4371915 | [1] | PIN | |
| 19. | 4339088 | [1] | PLATE;LOCK | |
| 20. | J021025 | [2] | BOLT;SEMS | |
| 22. | 8066508 | [1] | LEVER | |
| 23. | 4372044 | [1] | BUSHING | |
| 24. | 4371959 | [2] | SPACER | |
| 25. | 4312541 | [2] | BUSHING | |
| 26. | 4371956 | [2] | SPACER | |
| 27. | 4371914 | [1] | PIN | |
| 28. | 4372297 | [1] | STOPPER | |
| 29. | J011230 | [2] | BOLT;SEMS | |
| 30. | 4316493 | [1] | RETAINER | |
| 31. | J011240 | [2] | BOLT;SEMS | |
| 32. | 4317777 | [6] | SHIM | |
| 33. | J011225 | [2] | BOLT;SEMS | |
| 35. | 4372060 | [1] | BUSHING | |
| 36. | 4371921 | [2] | SPACER | |
| 37. | 4371916 | [1] | PIN | |
| 38. | 4371918 | [1] | PLATE;LOCK | |
| 39. | J011230 | [1] | BOLT;SEMS | |
| 40. | 4372041 | [1] | BUSHING | |
| 42. | M261680 | [1] | BOLT | |
| 43. | J950016 | [1] | NUT | |
| 44. | 428864 | [3] | SPRING;TENSION | |
| 45. | 4225383 | [3] | BOLT;EYE | |
| 46. | J950012 | [6] | NUT | |
| 48. | 9146043 | [1] | BAND;LIVE ASS'Y | |
| 48A. | 6015412 | [1] | BAND;LIVE | |
| 48B. | 4386078 | [6] | LINING | |
| 48C. | M480832 | [48] | SCREW | |
| 48D. | A590908 | [48] | WASHER;SPRING | |
| 48E. | M500807 | [48] | NUT | |
| 49. | 9146044 | [1] | BAND;DEAD ASS'Y | |
| 49A. | 6015406 | [1] | BAND;DEAD | |
| 49B. | 4386078 | [6] | LINING | |
| 49C. | M480832 | [45] | SCREW | |
| 49D. | A590908 | [45] | WASHER;SPRING | |
| 49E. | M500807 | [45] | NUT | |
| 49F. | 4372030 | [1] | BUSHING | |
