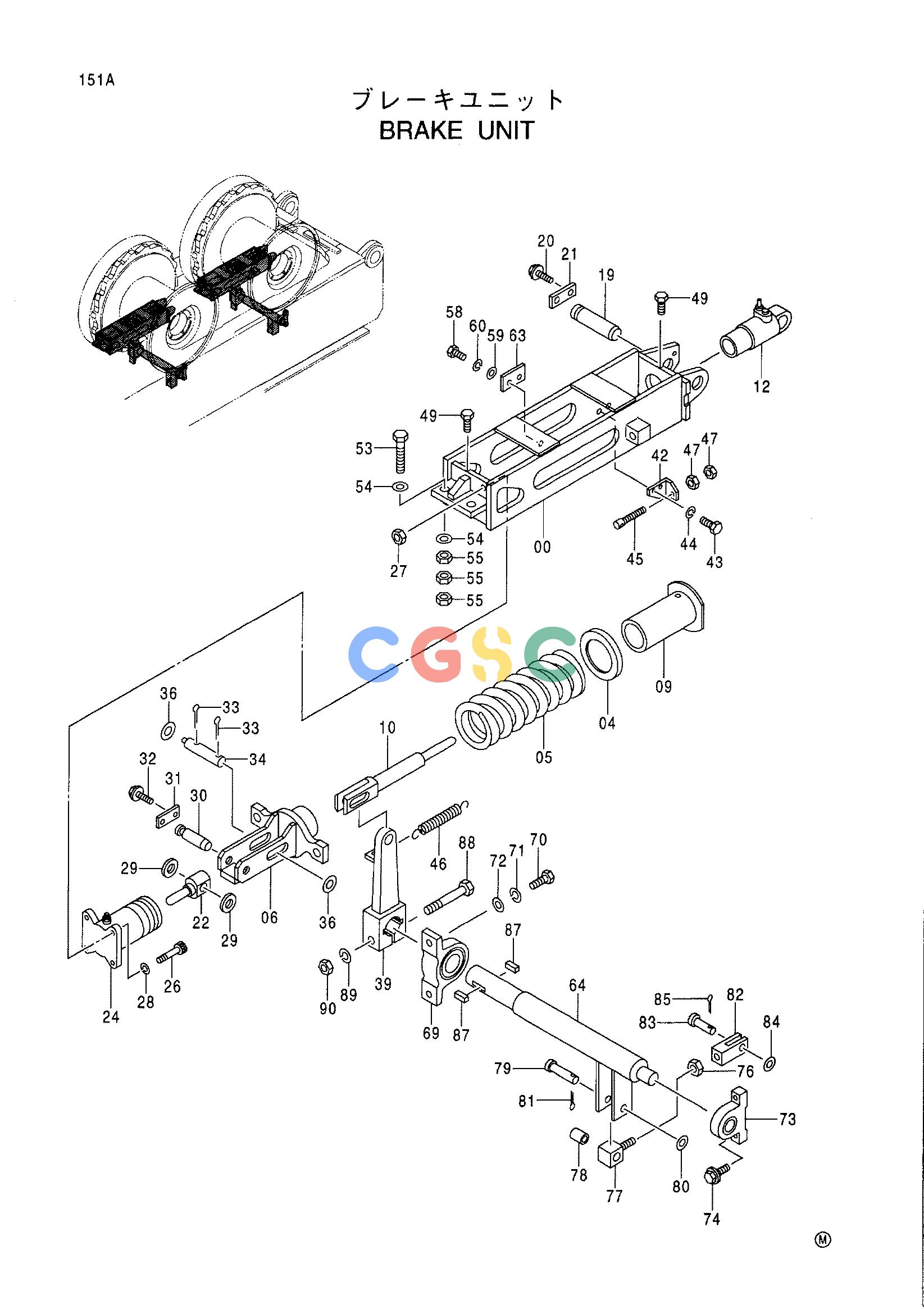

日立零件查询（CX1100）BRAKE UNIT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
816 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | BRAKE UNIT | |
| 00. | 7031954 | [1] | FRAME | |
| 04. | 4314372 | [1] | SPACER | |
| 05. | 3065304 | [1] | SPRING | |
| 06. | 8072760 | [1] | ROD | |
| 09. | 9742908 | [1] | GUIDE | |
| 10. | 4386134 | [1] | ROD | |
| 12. | 4416496 | [1] | CYL.;OIL | |
| 19. | 4314350 | [1] | PIN | |
| 20. | J021020 | [2] | BOLT;SEMS | |
| 21. | X4245 | [1] | PLATE;LOCK | |
| 22. | 4403617 | [1] | ROD;PUSH | |
| 24. | 4353783 | [1] | CYL.;OIL | |
| 26. | M341260 | [2] | BOLT;SOCKET | |
| 27. | J950012 | [2] | NUT | |
| 28. | A590912 | [2] | WASHER;SPRING | |
| 29. | 4085614 | [2] | WASHER | |
| 30. | 4339065 | [1] | PIN | |
| 31. | 4217448 | [1] | PLATE;LOCK | |
| 32. | J020820 | [2] | BOLT;SEMS | |
| 33. | A765050 | [2] | PIN;SPLIT | |
| 34. | 4339060 | [1] | PIN | |
| 36. | A590127 | [2] | WASHER;PLANE | |
| 39. | 8066524 | [1] | LEVER | |
| 42. | 4376164 | [1] | BRACKET | |
| 43. | J901022 | [2] | BOLT | |
| 44. | A590910 | [2] | WASHER;SPRING | |
| 45. | 4225383 | [1] | BOLT;EYE | |
| 46. | 4339067 | [1] | SPRING | |
| 47. | J950012 | [2] | NUT | |
| 49. | J901016 | [2] | BOLT | |
| 53. | M261611 | [2] | BOLT | |
| 54. | J217085 | [4] | WASHER | |
| 55. | J950016 | [6] | NUT | |
| 58. | J900814 | [2] | BOLT | |
| 59. | A590108 | [2] | WASHER;PLANE | |
| 60. | A590908 | [2] | WASHER;SPRING | |
| 63. | 4386114 | [1] | INDICATOR | |
| 64. | 7033661 | [1] | AXLE | |
| 69. | 4058151 | [1] | BRG.;UNIT | |
| 70. | J901655 | [2] | BOLT | |
| 71. | A590916 | [2] | WASHER;SPRING | |
| 72. | A590116 | [2] | WASHER;PLANE | |
| 73. | 942014 | [1] | BLOCK | |
| 74. | J021250 | [2] | BOLT;SEMS | |
| 76. | J951020 | [1] | NUT | |
| 77. | 4371853 | [1] | ROD | |
| 78. | 4372048 | [1] | BUSHING | |
| 79. | 4372057 | [1] | PIN | |
| 80. | A590120 | [1] | WASHER;PLANE | |
| 81. | A765036 | [1] | PIN;SPLIT | |
| 82. | 4372203 | [1] | END;FORK(R) | |
| 83. | 415924 | [1] | PIN | |
| 84. | A590120 | [1] | WASHER;PLANE | |
| 85. | A765036 | [1] | PIN;SPLIT | |
| 87. | 94-2517 | [2] | KEY;WOODUFF | |
| 88. | J901202 | [1] | BOLT | |
| 89. | A590912 | [1] | WASHER;SPRING | |
| 90. | J950012 | [1] | NUT | |
