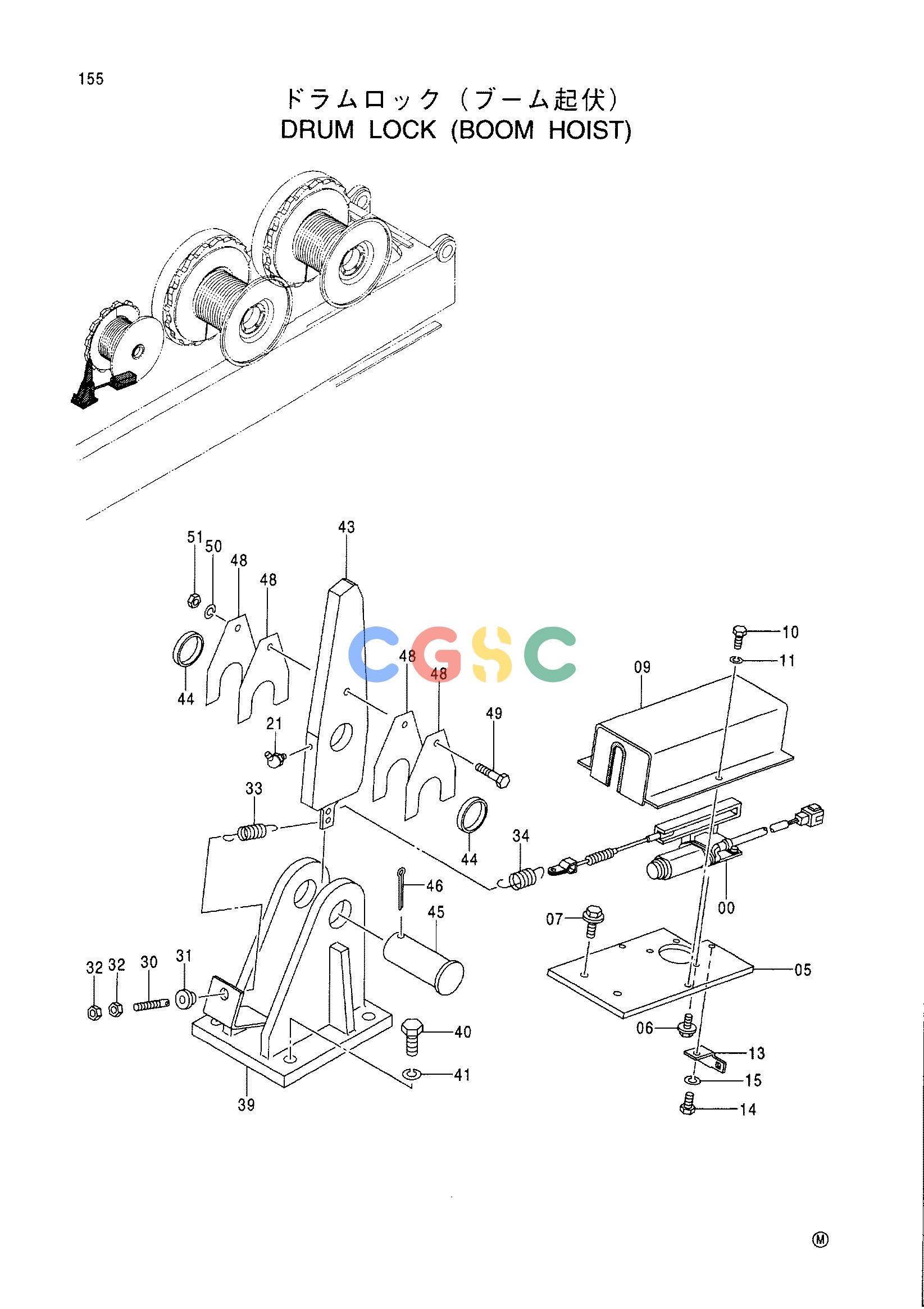

日立零件查询（CX1100）DRUM LOCK (BOOM HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4318436 | [1] | MOTOR | |
| 05. | 4440980 | [1] | PLATE | |
| 06. | J010620 | [3] | BOLT;SEMS | |
| 07. | J011025 | [2] | BOLT;SEMS | IJ021025 |
| 07. | J021025 | [2] | BOLT;SEMS | |
| 09. | 3093679 | [1] | COVER | |
| 10. | J900812 | [2] | BOLT | |
| 11. | A590908 | [2] | WASHER;SPRING | |
| 13. | 4257159 | [1] | BRACKET | |
| 14. | J901014 | [1] | BOLT | |
| 15. | A590910 | [1] | WASHER;SPRING | |
| 21. | J75581 | [1] | FITTING;GREASE | |
| 30. | 4190402 | [1] | ROD | |
| 31. | 4190410 | [1] | SEAT | |
| 32. | J950010 | [2] | NUT | |
| 33. | 4461410 | [1] | SPRING | |
| 34. | 4405024 | [1] | SPRING | |
| 39. | 8084684 | [1] | BRACKET | |
| 40. | J901640 | [4] | BOLT | |
| 41. | A590916 | [4] | WASHER;SPRING | |
| 43. | 8066829 | [1] | TOOTH | |
| 44. | 4320814 | [2] | SPACER | |
| 45. | 4226138 | [1] | PIN | |
| 46. | A768071 | [1] | PIN;SPLIT | |
| 48. | 4373885 | [10] | SHIM 1.0 | |
| 49. | J901050 | [1] | BOLT | |
| 50. | A590910 | [1] | WASHER;SPRING | |
| 51. | J950010 | [1] | NUT | |
