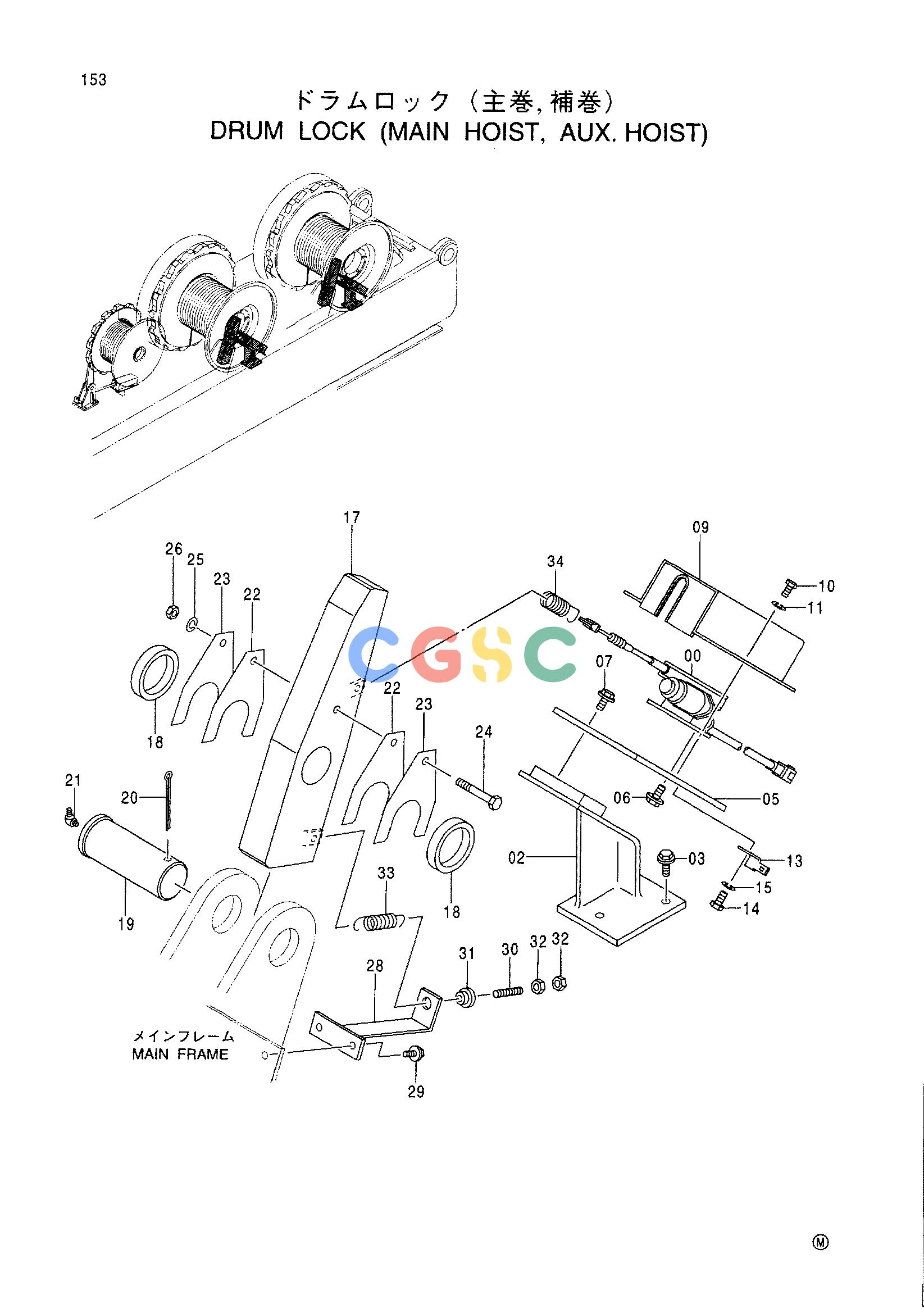

日立零件查询（CX1100）DRUM LOCK (MAIN HOIST, AUX.HOIST) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
163 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [2] | DRUM LOCK ASS'Y | |
| 00. | 4318436 | [1] | MOTOR | |
| 02. | 8066948 | [1] | BRACKET (MAIN HOIST) | |
| 02. | 8066846 | [1] | BRACKET (AUX.HOIST) | |
| 03. | J011025 | [7] | BOLT;SEMS | |
| 05. | 4319860 | [1] | PLATE | |
| 06. | J010620 | [3] | BOLT;SEMS | |
| 07. | J011025 | [2] | BOLT;SEMS | IJ021025 |
| 07. | J021025 | [2] | BOLT;SEMS | |
| 09. | 3093681 | [1] | COVER | |
| 10. | J900812 | [2] | BOLT | |
| 11. | A590908 | [2] | WASHER;SPRING | |
| 13. | 4257159 | [1] | BRACKET | |
| 14. | J901014 | [1] | BOLT | |
| 15. | A590910 | [1] | WASHER;SPRING | |
| 17. | 8066825 | [2] | TOOTH | |
| 18. | 4320811 | [4] | SPACER | |
| 19. | 4225371 | [2] | PIN | |
| 20. | A761000 | [2] | PIN;SPLIT | |
| 21. | J75581 | [1] | FITTING;GREASE | |
| 22. | 4328945 | [8] | SHIM 2.3 | |
| 23. | 4328943 | [12] | SHIM 1.2 | |
| 24. | J901080 | [2] | BOLT | |
| 25. | A590910 | [2] | WASHER;SPRING | |
| 26. | J950010 | [2] | NUT | |
| 28. | 9747077 | [2] | BRACKET | |
| 29. | J011025 | [4] | BOLT;SEMS | |
| 30. | 4190402 | [1] | ROD | |
| 31. | 4190410 | [1] | SEAT | |
| 32. | J950010 | [2] | NUT | |
| 33. | 4461410 | [1] | SPRING | |
| 34. | 4405024 | [1] | SPRING | |
