| 1. |
700138108
|
[1] |
TINE
|
CAS

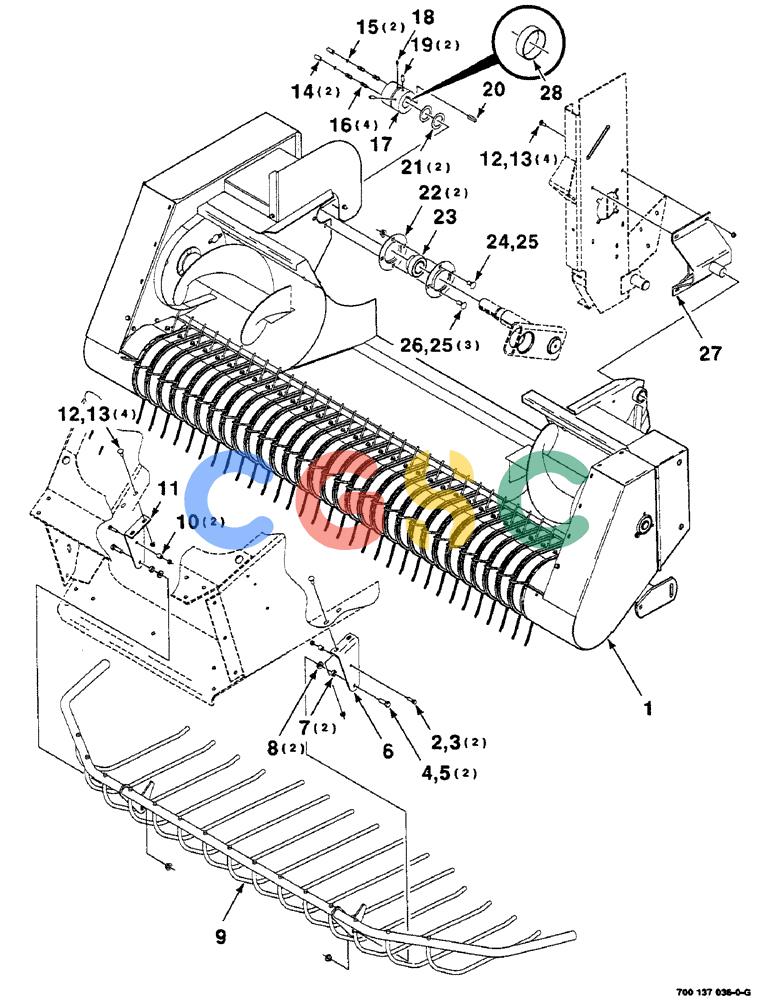

PICKUP ASSEMBLY
|
| 2. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 3. |
231-4116
|
[2] |
NUT,3/8"-16, GB
|
CAS
3/8-16 HTLN GRB Superseded by part number: 88902, E64197
|
| 4. |
413-824
|
[2] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 5. |
231-5348
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 6. |
700137775
|
[1] |
SUPPORT
|
CAS
- left
|
| 7. |
700708272
|
[2] |
BUSHING
|
CAS
|
| 8. |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 9. |
700137776
|
[1] |
GUARD
|
CAS
WINDGUARD WA
|
| 10. |
1117878
|
[2] |
BUSHING
|
CAS
|
| 11. |
700137774
|
[1] |
SUPPORT
|
CAS
- right
|
| 12. |
434-616
|
[8] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 13. |
329-286
|
[8] |
FLANGE NUT,Flg, 3/8"-16, G8
|
CAS
|
| 14. |
37-1820
|
[2] |
DOWEL,1/2" x 1 1/4"
|
CAS
1/2 X 1-1/4 DOWEL PIN Superseded by part number: 81848
|
| 15. |
700108669
|
[2] |
LARGE PLATE
|
CAS
PLATE
|
| 16. |
58511
|
[4] |
COMPRESSION SPRING
|
IH
SPRING - compression
|
| 17. |
700137781
|
[1] |
HUB
|
CAS
WA (Includes item 28)
|
| 18. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 19. |
83-616
|
[2] |
SET SCREW,Hex Soc, 3/8"-16 x 1"
|
CAS
3/8-16 X 1 CPHSSS NP
|
| 20. |
Q63
|
[1] |
KEY,3/8" Sq x 1 1/2", Par
|
IH
3/8 X 1-1/2 KEY Superseded by part number: 86977757
|
| 21. |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
1-3/4 X 14 GAUGE NRMB
|
| 22. |
50583
|
[2] |
FLANGED BEARING
|
IH
- bearing Superseded by part number: 86979948
|
| 23. |
51318
|
[1] |
BEARING
|
IH
- spherical Superseded by part number: 668718R92, 47577169
|
| 24. |
433-816
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 25. |
329-288
|
[4] |
FLANGE NUT,Flg, 1/2"-13, G8
|
CAS
|
| 26. |
433-820
|
[3] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 27. |
700123797
|
[1] |
SUPPORT
|
CAS
- pickup, left
|
| 28. |
740233
|
[1] |
BUSHING
|
CAS
- bronze
|
