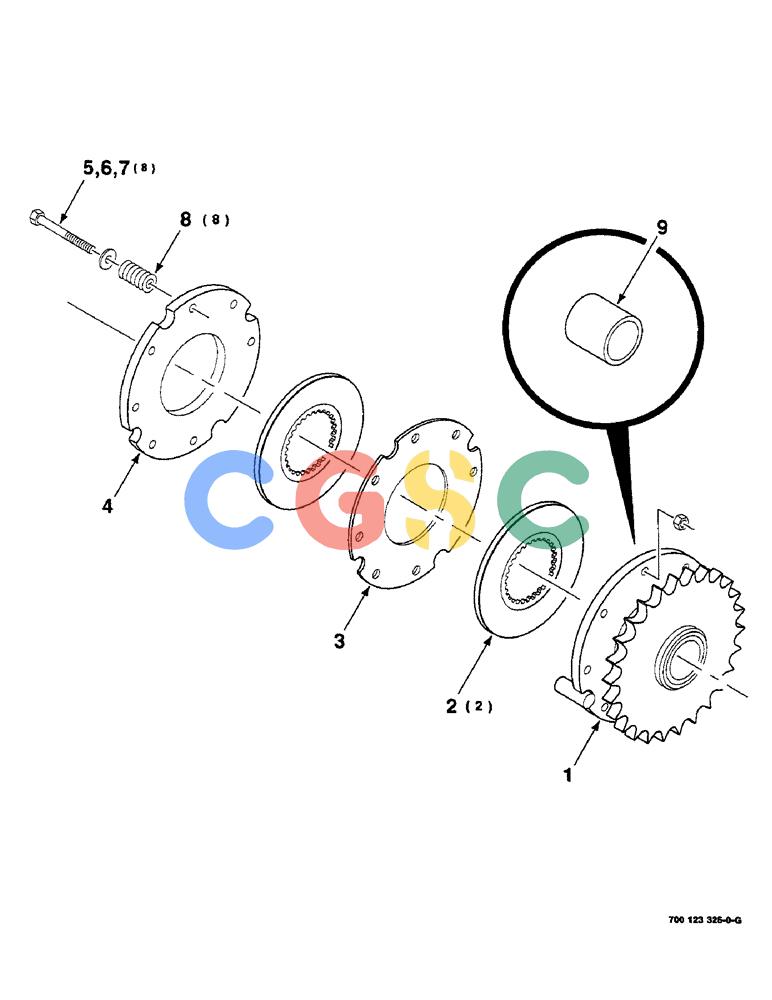

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (2-26) - SLIP CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700137377
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET WA (Includes item 9)
|
| 2. |
700108820
|
[2] |
DISC
|
CAS
ASSEMBLY - friction
|
| 3. |
700112903
|
[1] |
CLUTCH PLATE,106mm ID x 220mm OD x 5mm Thk
|
CAS
PLATE - clutch
|
| 4. |
6522866
|
[1] |
CLUTCH PLATE
|
CAS
PLATE - clutch
|
| 5. |
413-664
|
[8] |
BOLT,Hex, 3/8" - 16 x 4", Gr 5
|
CAS
3/8-16 X 4 C Superseded by part number: 80012047
|
| 6. |
495-21044
|
[8] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 7. |
231-1406
|
[8] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 8. |
58107
|
[8] |
SPRING
|
IH
- compression
|
| 9. |
7852692
|
[1] |
BRONZE BUSHING
|
CAS
BUSHING - bronze
|
